Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000
HARDWARE LIST
A
(16)
Long Bolt 6.3x80
B
(16)
Half Round Nut
C
(4)
Short Bolt 6.3x35
D
(8)
Short Screw Bolt 7x80
E
(62)
Screw 4x35
F
(1)
Allen Key
G
(16)
Screw 4x25
H
(16)
Long Screw Bolt 7x100
I
(24)
Wood Connect 010x40
PIECES LIST
J
(2)
Front Post
K
(2)
Back Post
L
(2)
Upper Panel
M
(2)
Lower Panel
N
(1)
Upper Front Rail
O
(2)
Back Rail
P
(4)
Guard Rail
Q
(1)
Upper Slats
R
(1)
Lower Slats
S
(1)
Ladder
T
(2)
Guard Rail Supports
U
(1)
Lower Front Rail
V
(4)
Side DRW Panels
W
(2)
Back DRW Panels
X
(2)
Bottom DRW Panels
Y
(2)
Front DRW Panels

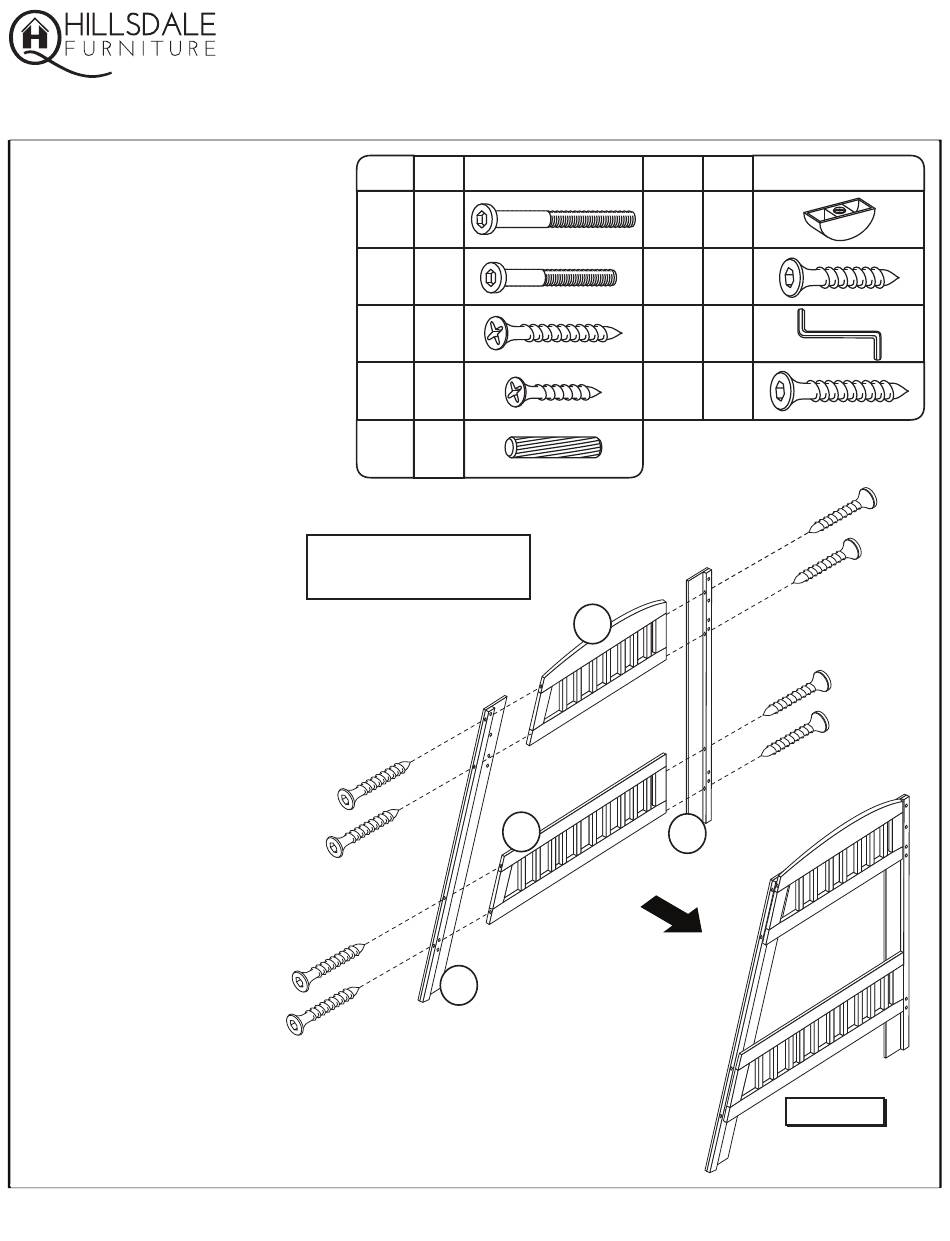

STEP 1
Begin assembly by connecting
the Back Post (K) to the Upper
and Lower Panels (L & M) with 2
Long Screw Bolts (H) for each.
Then attach the Front Post
Headboard & Footboard (J) to the
Upper and Lower Headboard &
Footboards (L & M) with 2 Long
Screw Bolts (H) for each.
Finished piece seen in Figure 1.
STEP 2
Repeat the instructions from step 1 to assemble
the second side.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.

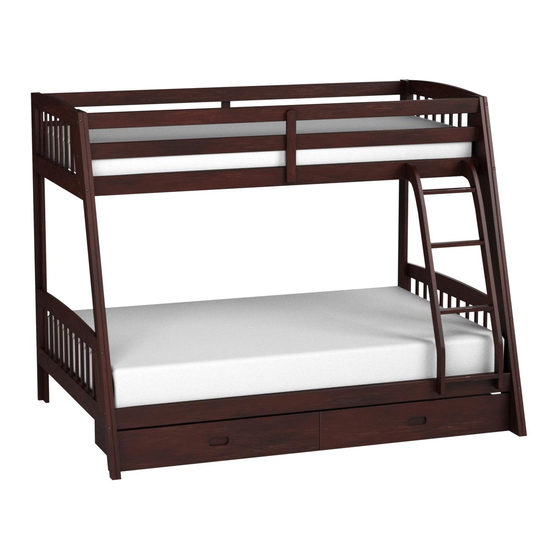

ROCKDALE BUNK BED
Model #1608/1688
PART
QTY
A
16
C
4
E
62
G
16
I
24
TEAMWORK NEEDED
FOR ASSEMBLY
H
H
H
J
H
HARDWARE
PART
B
D
F
H
L
M
K
Date: 11-19-2013
Page 1 of 4
QTY
HARDWARE
16
8
1
16
H
H
H
H
FIGURE 1
