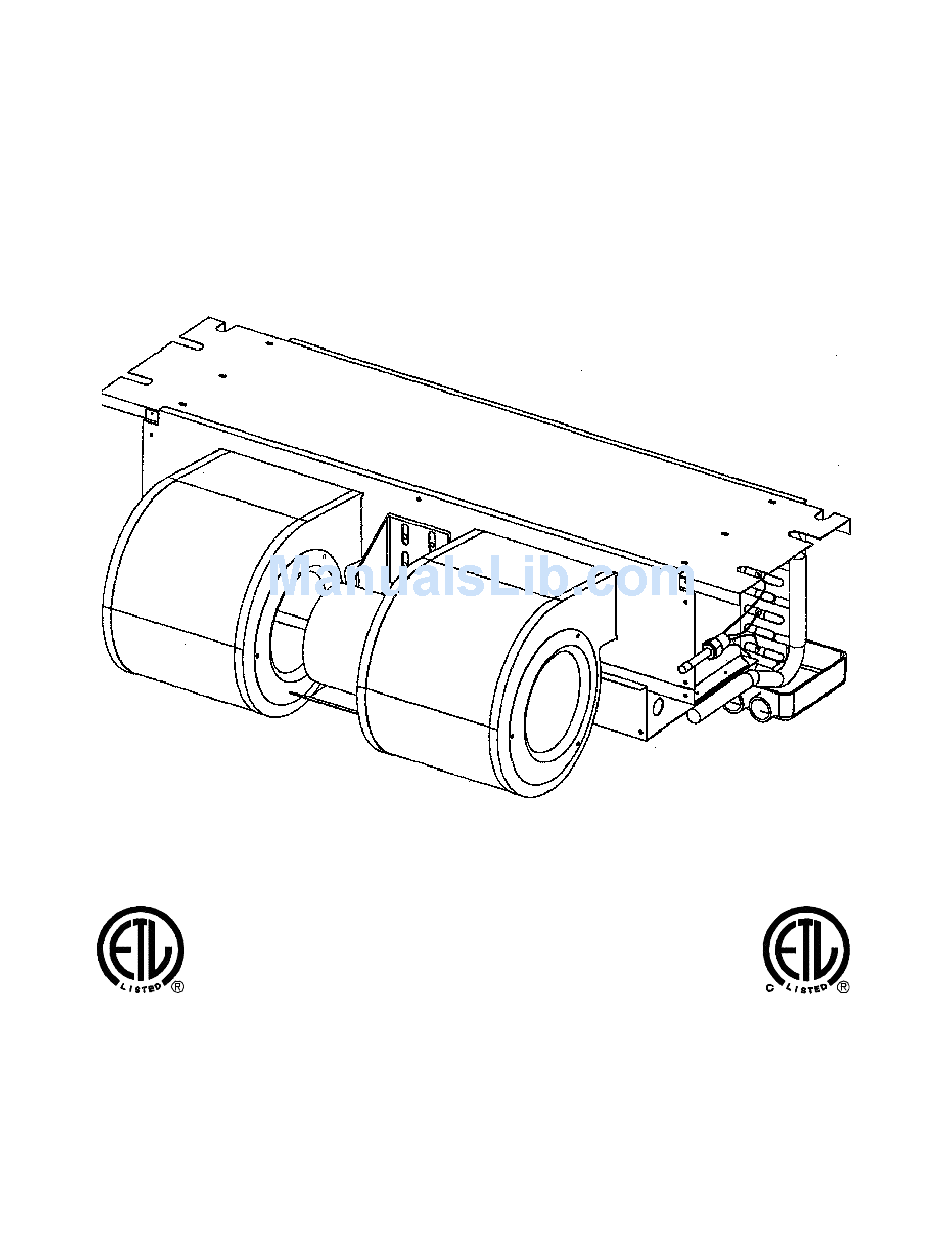

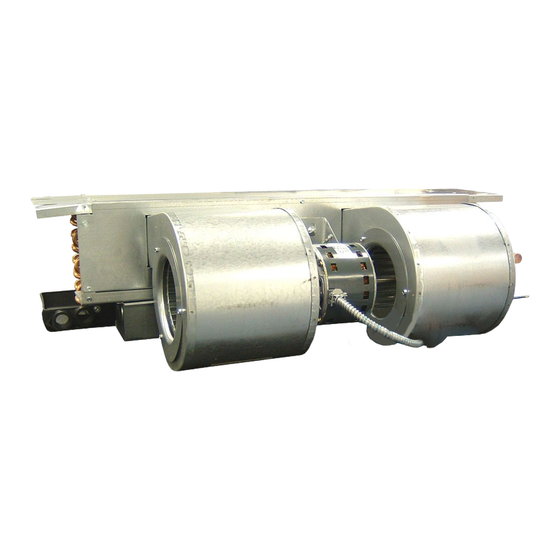

- Page 1 INSTALLATION & OPERATING INSTRUCTIONS CEILING MOUNT AIR HANDLER AC SERIES CERTIFIED FOR CANADA Made in the USA by: Goodman Manufacturing Company, L.P. IO-162C 2550 North Loop West Suite 400 AC SERIES 4/02 Houston, Texas 77092...
- Page 2 6 1/2 AC 36 49 1/4 46 11/16 6 1/2 ELECT. HEATER LOCATION FIGURE 1 LAYOUT FOR AC 18, 24, 30, 36 Drop Ceiling Plenum Outlet Duct To Drain Grill For Return Air And Service FIGURE 2 DROP CEILING INSTALLATION...
-
Page 3: Special Instructions
WARNING: DO NOT CONNECT TO OR USE IN CONJUNCTION WITH THIS UNIT ANY DEVICES FOR THE PURPOSE OF SAVING ENERGY OR INCREASING OPERATING EFFICIENCIES, WHICH HAVE NOT BEEN TESTED AND APPROVED BY GOODMAN OR DESIGN CERTIFIED FOR USE WITH THIS UNIT. SERIOUS DAMAGE, REDUCED UNIT PERFORMANCE AND HAZARDOUS CONDITIONS MAY RESULT FROM THE USE OF DEVICES WHICH HAVE NOT BEEN APPROVED OR CERTIFIED BY GOODMAN. -
Page 4: Installation
I. SPECIFICATIONS B. INSTALLATION A. GENERAL 1. Before locating the unit on the dropped ceiling, make These Ceiling mount air handlers are available in sure that the strength of the ceiling and beams is cooling capacities of 1.5, 2, 2.5 and 3 nominal tons of adequate at the point to support the weight involved. - Page 5 ing the unit. If these units are installed in a removable IV. ELECTRICAL WIRING ceiling panel, ample space must be provided for servic- GENERAL ing the unit. All wiring should be made in accordance with the National Electrical Code in the U.S.A. Determine the III.
-
Page 6: Maintenance
3. Internal Wiring A diagram of the internal wiring of this unit is located under the electrical box cover. If any of the original wire as supplied with the appliance must be replaced, the wire gauge and insulation must be same as original wiring. - Page 7 WARNING a) Do not store combustible materials or use gasoline or other flammable liquids or vapors in the vicinity of this appliance so as to prevent the risk of property damage or personal injury. b) Have your contractor point out and identify the various cut-off devices, switches, etc., that serve your comfort equipment.
