Vivo DESK-V000G Assembly Instructions Manual

Vivo DESK-V000G Assembly Instructions Manual

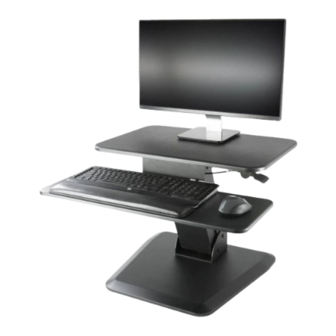

Sit to stand desk / workstation

Advertisement

Quick Links

Sit to Stand Desk / Workstation
help@vivo-us.com
Assembly Instructions
DESK-V000G
Model: DESK-V000G

Advertisement

loading
Need help?

Need help?

Do you have a question about the DESK-V000G and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo DESK-V000G

  • Page 1 Sit to Stand Desk / Workstation help@vivo-us.com Assembly Instructions DESK-V000G Model: DESK-V000G...
  • Page 2: Unpacking Instructions

    Please call a qualifed installaton contractor for help if you do not understand these directons or have any doubts about the safety of the installaton. Scan our QR code below with your mobile device or go to the link for our installation video https://vivo-us.com/collections/sit-stand-desk- converters/products/desk-v000g...
  • Page 3 Tools Supplied Parts required...
  • Page 4 Step 1 Connect “L” Plate to Keyboard Tray Attach the “L” Plate(e) to the Option A: Desk Clamp Install back of the keyboard tray(c) 1. Install the Clamp Brace(C) to the Pole(A) with M6x12 Bolts(g) and using 3 M5x14 Bolts(F). See figure 1. tighten using Allen Key(p).
  • Page 5 Step 3 Connect L Plate to Gas Spring Arm Choose lever location LEFT RIGHT...
  • Page 6 Step 4 Connect Gas Spring Arm to Monitor Platform Attach Gas Spring Arm(d) to Monitor Platform(a) using M6x12 Bolts(h). Step 5 Attach Lever to Back of Monitor Platform Attach the lever to Monitor Platform(a) using M6x35 Bolts(j) and Spacers(k).
  • Page 7 Step 6 Connecting Base to Gas Spring Arm Attach Base(b) to Gas Spring Arm using M6x28 Bolts(i) and tighten with Allen Key(p). Step 7 Attach Round Pads to Back of Base Peel backing from Round Pads(o) and apply to back of Base(b).
  • Page 8 Step 8 Attach Wrist Pad to Keyboard Tray Peel backing from adhesive pads on Wrist Pad(f) and press into place on the Keyboard Tray. Step 9 Operating the Lever to Loft or Lower the Desk...
  • Page 9 Adjusting the Tension of the Desk Manage cables and store the Allen Keys(O) in Wire Clip(N1) for future use Still have questions? Please contact us for assistance Email: help@vivo-us.com Live Chat: www.vivo-us.com Phone: 1-800-371-5654 For more VIVO products please visit us at: WWW.VIVO-US.COM...
