Vivo DESK-V000V Series Assembly Manual
Desk riser
Hide thumbs
Also See for DESK-V000V Series:
- Instruction manual (16 pages) ,
- Instruction manual (2 pages) ,
- Instruction manual (4 pages)
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-V000V Series
Summary of Contents for Vivo DESK-V000V Series

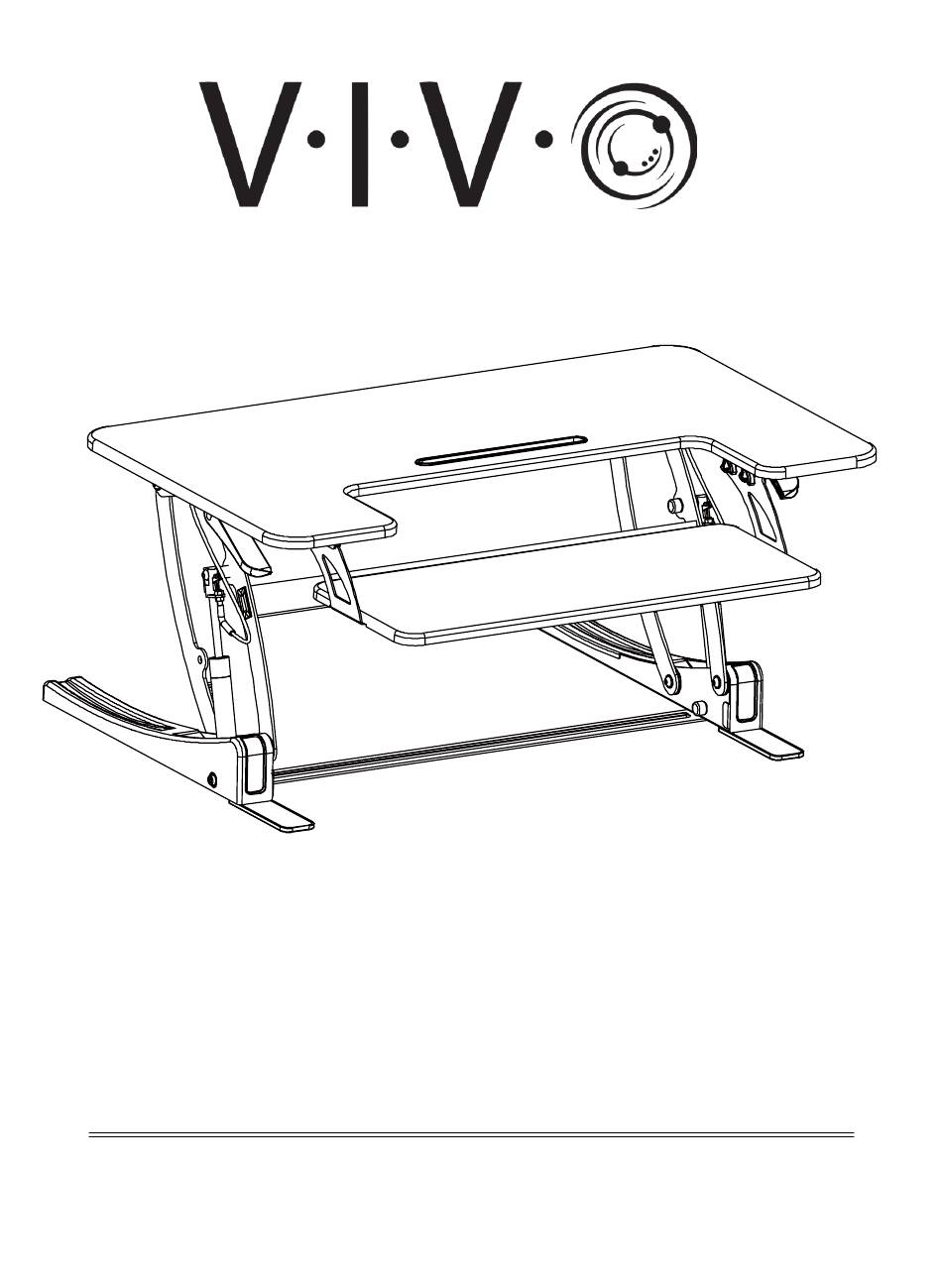

- Page 1 Desk Riser DESK-V000V Series Assembly Manual Individual Product SKUs DESK-V000V DESK-V000VN DESK-V000VA DESK-V000VO DESK-V000VD DESK-V000VW DESK-V000VG...
- Page 2 Saturday 8am-4pm CST US-Based Customer Support from Trained Professionals Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 Assembly Video Available Navigate to the middle of the product page to watch as our product specialists walk you through the assembly process.
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 4 Package Contents A (x1) B (x2) C (x2) D (x1) Keyboard Desk Riser Foot Extension Keyboard Tray Bracket E (x1) F (x2) Cable Clip Zip-tie Included Hardware S-A (x10) M5x10mm Screw Weight Capacity: Tools Needed: 33lbs (15kg) Phillips Scissors Screwdriver...
- Page 5 Assembly Steps STEP 1 Carefully remove the Desk Riser (A) from the packaging. TEAM LIFT Do NOT Press the Handles...
- Page 6 STEP 2 Flip Desk Riser (A) upside down on a protective surface, then attach Feet Extensions (B) to the frame using M5x10mm Screws (S-A) and a Phillips screwdriver.
- Page 7 STEP 3 Press the handles on each side to raise Desk Riser (A). STEP 4 Attach Keyboard Brackets (C) to Keyboard Tray (D) using M5x10mm Screws (S-A) and a Phillips screwdriver.
- Page 8 STEP 5 Hook the assembled keyboard tray onto the pre-installed knobs so that the keyboard tray is facing out from the desk. Tighten the knobs to secure. Note: Knobs may need to be loosened first. STEP 6 Place devices onto the desk surface.
- Page 9 STEP 7 Remove adhesive backing from Cable Clip (S-B) and place where desired and use Zip-ties (S-C) to organize cables.
- Page 10 Assembly Complete Desk riser is ready for use. Press both side levers to raise or lower your desk riser. When lowering without any weight on the desktop, lightly press down on riser as you lower it to allow for a smoother lowering process. If it feels difficult to lower after placing laptop and other intended setup items, apply light pressure to lower smoothly or add additional weight.
- Page 11 Tension Adjustment If your desk riser lifts up or down too quickly, or is too difficult, the gas spring cable can be adjusted to your desired tension. This adjustment is located in two places: 1. Levers: Behind both levers, under desktop. 2.
- Page 12 Option A: Desk Is Difficult to Raise/Lower | Increase Tension If the desk feels difficult to raise and lower, you will need to increase the Gas Spring Cable tension. Gently pull the cable away from the Lever until the Inner Nut (2) is firmly pressed against the middle divider. Tighten Outer Nut (1) until it firmly holds the cable in its position, as shown below.
- Page 13 Option B: Desk Raises/Lowers too Easily | Decrease Tension If the desk is raising or lowering without the handle being pressed, the tension needs to be loosened. Gently push the cable towards the Lever until the Outer Nut (1) is firmly pressed against the middle divider. Tighten Inner Nut (2) until it firmly holds the cable in its position, as shown below.
