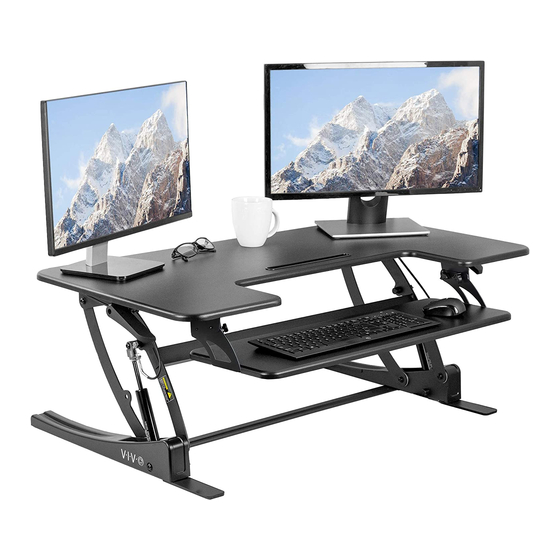

Black 42" desk riser
Hide thumbs
Also See for DESK-V000VL:
- Instruction manual (5 pages) ,
- Instruction manual (8 pages) ,
- Instruction manual (8 pages)
Advertisement
Quick Links
Black 42" Desk Riser
Instruction Manual
SKU: DESK-V000VL
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v000vl
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo DESK-V000VL
Summary of Contents for Vivo DESK-V000VL
- Page 1 Black 42” Desk Riser Instruction Manual SKU: DESK-V000VL Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v000vl GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Carefully remove the desktop (A) from the packaging. WARNING: Impact Hazard! Moving Parts can Crush and Cut! STEP 2 Flip the desktop (A) upside down, then attach the extended feet (B) to the frame using M5x10mm screws (C). - Page 4 STEP 3 Press the handles on each side and lift the desktop (A). STEP 4 Mount brackets (D) to keyboard tray (G) using M5x10mm screws (C).
- Page 5 STEP 5 Hang assembled keyboard tray onto pre-installed knobs, and tighten knobs to secure. STEP 6 Place monitor, laptop and other items on desk surface.
- Page 6 STEP 7 Attach cable clip (E) to desk to manage keyboard and mouse cables. STEP 8 Manage cables using zip ties (F).
- Page 7 STEP 9 If locks are not releasing properly to change desk height, adjust the position of the black tube containing the steel release cable. Turn the nuts at the end of the tube just behind the handle as shown, moving the tube away from the handle until the cable once again has proper tension, then tighten the nuts.
