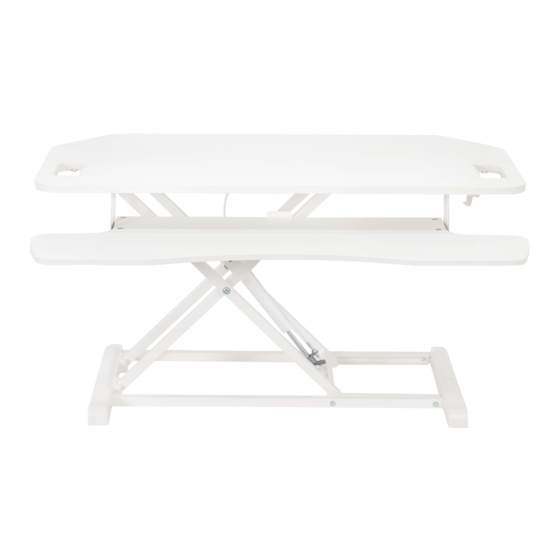

38" Corner Desk Riser
Instruction Manual
SKU: DESK-V000KL/W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v000kl
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-V000KL/W
Summary of Contents for Vivo DESK-V000KL/W
- Page 1 38” Corner Desk Riser Instruction Manual SKU: DESK-V000KL/W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v000kl GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. - Page 3 STEP 2 Install Stopper (F) to underside of Keyboard Tray (B) using ST4.2x12mm Screws (S-B) and a Phillips screwdriver. STEP 3 Press Foot Pads (E) into holes in base of Desk (A).
- Page 4 STEP 4 Cut the large plastic ties on bottom of Desk (A). CAUTION: Do not squeeze the release handle with the desk in a sideways or upside-down position. STEP 5 Place Desk (A) right-side up on a table. Raise the desk by squeezing the handle underneath the desktop.
- Page 5 STEP 6 Place Keyboard Tray (B) on metal brackets on Desk (A). Secure keyboard tray to brackets using M5x10mm Screws (S-A) and a Phillips screwdriver. STEP 7 Apply Cable Clips (C) to underside of desk assembly.
- Page 6 STEP 8 Place monitor and accessories on desk assembly to begin using. Grommet Installation If installing a grommet compatible monitor mount, remove the plastic cap from the rear-center of the desktop. Install the mount to the open hole according to the mount’s directions.
- Page 7 CAUTION! Keep monitor and Follow the cable Leave enough slack Raise desktop slowly to keep items stable. laptop base fully on routing instructions to in cable to allow for the desktop. avoid the potential to full range of vertical pinch cables. motion (15”...
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
