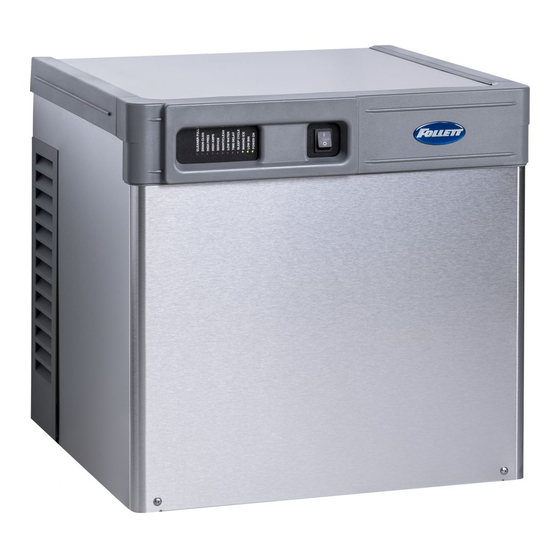

Follett Horizon Elite HCD1010RHT Installation Instructions Manual
For harmony top-mount applications
Hide thumbs
Also See for Horizon Elite HCD1010RHT:
- Manual (9 pages) ,
- Installation instructions manual (17 pages) ,
- Manual (8 pages)
Table of Contents
Advertisement
HCD/HMD/HCF/HMF1010RHT, HCD/HMD/HCF/HMF1410RHT,
HCD/HMD1010NHT, HCD/HMD1410NHT
(See model number configurator on page 2 for details.)
Order parts online
www.follettice.com
fit most countertop dispensers manufactured by
Horizon Elite
™
for Harmony
Horizon top-mount ice machines
Cornelius • Lancer • SerVend
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Ice Machine Installation Instructions
Top-mount Applications
™
remote condensing
01113331R00
Advertisement
Table of Contents
Related Manuals for Follett Horizon Elite HCD1010RHT
Summary of Contents for Follett Horizon Elite HCD1010RHT
- Page 1 Horizon Elite Ice Machine Installation Instructions ™ for Harmony Top-mount Applications ™ HCD/HMD/HCF/HMF1010RHT, HCD/HMD/HCF/HMF1410RHT, HCD/HMD1010NHT, HCD/HMD1410NHT (See model number configurator on page 2 for details.) Order parts online www.follettice.com remote condensing Horizon top-mount ice machines fit most countertop dispensers manufactured by Cornelius •...
- Page 2 Chewblet Ice Machine Model Number Configurations ® 1400 Icemaker Voltage Series Condenser Application Configuration MC Maestro™ C 208-230/60/1 (icemaking head) 400 up to A Air-cooled, self-contained V Vision™ S RIDE™ Self-contained only. 454 lbs Chewblet W Water-cooled, self-contained H Harmony™ (RIDE remote ®...
- Page 3 Read and complete the following 8 installation steps Unpack Site preparation Dispenser preparation Louvered docking assembly Ice transport tube External connection Internal connection Front cover HARMONY • TOP-MOUNT remote condensing...
- Page 4 Unpack Carefully unpack and inspect the contents of your Follett ice machine. Unpack ice machine ➊ ➋ ➌ ➍ 7/16" 7/16" ➎ ➏ HARMONY • TOP-MOUNT remote condensing...
-
Page 5: Site Preparation
• 10-70 psi (69-483kpa) • 45-90 F (7-32 C) • Follett recommends the use of an in-line water filtration system (item# 00130286) • This equipment is to be installed with adequate backflow protection to comply with applicable federal, state, and local codes ➌... -
Page 6: Dispenser Preparation
Dispenser preparation Prepare the dispenser. Note: The instructions below only apply to 22" & 30" wide dispensers. 44" wide dispenser instructions may be found with the top kit. Top preparation – ALL Top preparation – ALL – – ˜ – –... - Page 7 Top preparation – LANCER Agitation adjust. – CORNELIUS – — — Lancer models only Cornelius models ED, DB, DF, IDC and FLAVOR FUSION • Remove protective tape ➊ Adjust the agitation timer located on the Cornelius • Apply gaskets ➋ PC board to 1 second on, 1 hour off.
- Page 8 Agitation adjustments – LANCER FS SERIES Initialization Screen (Boot Up Only) Lancer FS-16 Ver. 0.200 – Main Menu Sub-Catagory FS-16 Setup Brands Per Side Major/Minor V:1 L:2 R:1 FS-16 Setup Bonus Key Setup Config Bonus Key V:1 T:F M:S B:W FS-16 Setup Soda/Plain Water Cancel...
- Page 9 3.11 Dispenser diverter plate overview (Installation on next page) Single Agitator P/N 307277 — Diverter plate (single agitator Cornelius dispensers and left-hand dispense chute on dual-agitator Cornelius dispensers) Dual Agitator P/N 307277 — Diverter plate (single agitator Cornelius dispensers and left-hand dispense chute on dual-agitator Cornelius dispensers) P/N 00996207 —...
- Page 10 3.12 Dispenser diverter plate installation – CORNELIUS ED, DF and DB SERIES GATE MOUNTING PLATE STORAGE HOPPER FLANGE EXTENDS INTO STORAGE HOPPER THROUGH GATE OPENING ICE DIVERTER ICE CHUTE COVER APPLY RTV TO THIS SURFACE TO SEAL TO HOPPER GATE MOUNTING PLATE 10-32 WASHER GASKET...
- Page 11 Louvered docking assembly Install the louvered docking assembly. Louvered docking assembly 2" (50,8 mm) 1.88" (47,8 mm) ➋ ➊ 3/8˝ ∅ 1" (25,4 mm) high pressure Stub Typ line 3.38" (86 mm) ➊ 1010, 1410: 5/8" ∅ low pressure line •...
-
Page 12: Ice Transport Tube
Ice transport tube Install the ice transport tube. Ice transport tube ➋ Hot Water 160 F (71 C) ➊ ➌ • Slide insulation onto ice transport tube • Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➊... -
Page 13: External Connections
External connections Connect utilities to louvered docking assembly. Water and drain Refrigerant lines ➋ ➊ ➌ ➊ • Remove access panel if necessary. • Braze supplied expandable refrigerant lines in place ➊ • Install drain line ➊ The rigid drain line from the ice machine must have at least 1/4"... -
Page 14: Internal Connections
Internal connections Connect louvered docking assembly to ice machine. Ice transport tube installation Water line ➋ ➊ ➋ ➊ • Slide ice machine into louvered docking • Insert potable water line into valve ➊ assembly ensuring that drain tube is fully seated on barbed drain fitting ➊... -
Page 15: Power Cord
TDS switch Power cord HIGH CLEAN • Set the TDS switch on the electrical box: • Position plate into opening and secure with supplied screw HIGH: for extended service life LOW: for low-scale water NOTICE Ice machine MUST be sanitized prior to operation! Consult Operation and Service Manual provided with ice machine for sanitizing instructions. -
Page 16: Front Cover
1010N: 7,700 Btu/hr (1940 kcal/hr) 1410N: 10,000 Btu/hr (2519 kcal/hr) Horizon, Horizon Elite, Maestro, Harmony, Ice Manager, SafeCLEAN, Sani-Sponge and Vision are trademarks of Follett Corporation. Chewblet, RIDE and Follett are registered trademarks of Follett Corporation, registered in the US.
