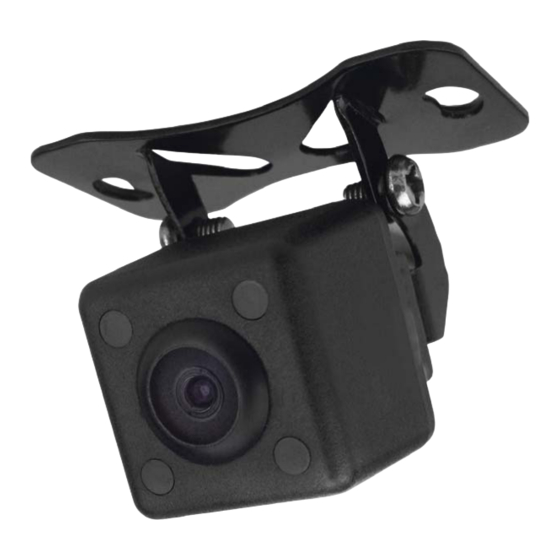

1/4" COMPACT REARVIEW CAMERA
SPECIFICATIONS
GENERAL
- Image Sensor:
- Lens Angle:
- Effective Pixels:
- Resolution:
- TV System:
- Night Vision:
- Min Illumination:
- Image:
- Protection:
- Current Consumption:
- Input Power:
- Operating Temperature:
- Connection:
- Dimensions:
INCLUDED
- Installation Manual
- Installation Hardware
- 6m RCA Video Cable with DVD/Monitor Trigger Wire
- 1m Power Cable
INSTRUCTION MANUAL
1/4" CMOS
120°
720 x 480
480 TV Lines
PAL
4 IR LEDs
0 Lux (with IR)
Mirror
IP66 Dust and Moisture
200mA Max
12V DC
-20° to 60°C
RCA
20H x 20W x 22Dmm
