SPECIFICATIONS
- 1/4" Full Colour CMOS Imaging Clip
- PC7070 Imaging Sensor
- Full Glass Lens
- 110° Wide Viewing Angle (Horizontal)
- 170° Wide Viewing Angle (Diagonal)
- PAL/NTSC (Switchable)
- Parking Guidelines (Selectable), Type, Height & Width (Adjustable)
- One Button Control of Image Orientation, Video Mode Select, Guideline Type,
Guideline Height & Guideline Width
- Mirror, Normal, Upside-Down Mirror, Upside-Down Normal Image Orientation (Switchable)
- 0.3 Lux Minimum Illumination
- IP67 Water/Dust Protection
- 12/24V DC Power Input
- Number Plate or In-Bumper Mounting
- RCA Connection
- Dimensions: 16.5mm x 23mm (D)
IP67
WEATHER
12 24
P R O O F
SYSTEM
CAMERA
PARKING
SWITCHABLE
GUIDELINES
INCLUDED:

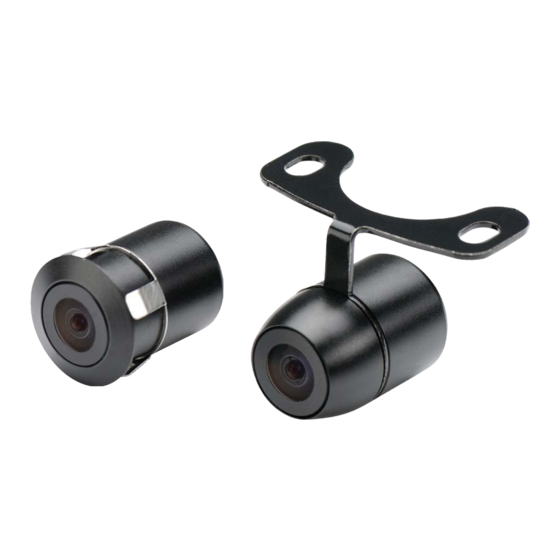

- Dual Mounting Heads (Butterfly and Bumper Fit)
- Installation Manual
- Installation Hardware
- Metal Hole Saw for Bumper Fit Installation
- 6m Video Cable (RCA M)
2
YEAR
WARRANTY
Advertisement
Related Manuals for Axis C20 Series
Summary of Contents for Axis C20 Series
- Page 1 IP67 WEATHER 12 24 P R O O F SYSTEM CAMERA PARKING SWITCHABLE GUIDELINES SPECIFICATIONS INCLUDED: - 1/4” Full Colour CMOS Imaging Clip - Dual Mounting Heads (Butterfly and Bumper Fit) - PC7070 Imaging Sensor - Installation Manual - Full Glass Lens - Installation Hardware - 110°...
- Page 2 CAR REARVIEW CAMERA GENERAL: After installation, the rear view system will automatically activate when reverse gear is selected. This can provide a clear image for the driver and protect children, pedestrians etc from injury. Also your vehicle will avoid costly repairs from dents and other damage when parking.
-
Page 3: Cable Connections
CAR REARVIEW CAMERA CAMERA ASSEMBLY OPTIONS: See diagram below: low: b) Bumper Fit Assembly CABLE CONNECTIONS: See wiring diagram below: Monitor Trigger Wire (Please insulate if not used) One-Button Control Camera Monitor +12/24V (Red Cable connect to rear lamp positive) ONE-BUTTON CONTROLLER OPERATION GUIDE: Selectable - Guidelines, PAL/NTSC &...
