Installation and Maintenance Manual
IS3000 Series Pressure Switch
For future reference, please keep this manual in a safe place
This Manual should be read in conjunction with the current product catalogue
Safety Instructions 2. Only trained personnel should operate pneumatically
operated machinery and equipment.
These safety instructions are intended to prevent a hazardous situa- Compressed air can be dangerous if an operator is unfamiliar
tion and/or equipment damage.These instructions indicate the level with it. Assembly, handling or repair of pneumatic systems should
of potential hazard by label of "Caution", "Warning" or "Danger". be performed by trained and experienced operators.
To ensure safety, be sure to observe ISO4414 (Note1) , JIS B 8370 (Note2)
and other safety practices. 3. Do not service machinery/equipment or attempt to
Note 1: ISO 4414: Pneumatic fluid power – Recommendations for the remove component until safety is confirmed.
application of equipment to transmission and control systems. 1) Inspection and maintenance of machinery/equipment should
Note 2: JIS B 8370: Pneumatic system axiom. only be performed after confirmation of safe locked-out
control positions.
CAUTION : 2) When equipment is to be removed, confirm the safety process
Operator error could result in injury or
as mentioned above. Switch off air and electrical supplies and
equipment damage.
exhaust all residual compressed air in the system.
3) Before machinery/equipment is re-started, ensure all safety
WARNING:
Operator error could result in serious
measures to prevent sudden movement of cylinders etc.
injury or loss of life.
(Bleed air into the system gradually to create back-pressure,
i.e. incorporate a soft-start valve).
DANGER :
In extreme conditions, there is a
possible result of serious injury or loss of life. 4. Contact SMC if the product is to be used in any of the
following conditions:
1) Conditions and environments beyond the given specifica-
WARNING tions, or if product is used outdoors.
2) Installations in conjunction with atomic energy, railway, air
1. The compatibility of pneumatic equipment is the respon- navigation, vehicles, medical equipment, food and beverage,
sibility of the person who designs the pneumatic system recreation equipment, emergency stop circuits, press
or decides its specifications. applications, or safety equipment.
Since the products specified here are used in various operating 3) An application which has the possibility of having negative
conditions, their compatibility for the specific pneumatic system effects on people, property, or animals, requiring special
must be based on specifications or after analysis and/or tests to safety analysis.
meet your specific requirements.
CAUTION
Ensure that the air supply system is filtered to 5 micron.
Specifications
Fluid
Proof pressure
Max. operating pressure
Pressure adjustable range 0.1 to 0.7 MPa (1 to 7.1 kgf/cm
Ambient and fluid temperature
Contact configuration
Hysteresis 0.05 MPa (0.51 kgf/cm
Repeatability
Weight
Microswitch rating
Model IS3*00
Load Non-inductive load (A)
Resistance load Lamp load Inductive load
Normally
closed/
N.C. N.O. N.C. N.O. N.C.
open
Rated
voltage (V)
AC125 5 1.5 0.7
AC250 3 1 0.5
DC30 4 2
DC125 0.4 0.05 0.4
Installation
WARNING
1. Ensure all air and power supplies are ISOLATED before
commencing installation.
2. DO NOT install this product in an explosive atmosphere.
3. Protect from oil and water splashes.
4. If it is intended to energise this product for extended periods of
time please consult SMC.
5. Protect the air supply from freezing.
6. Operate within the specified pressure and temperature ranges.
7. DO NOT subject the unit to impact or vibration.
8. DO NOT install in environments containing corrosive gasses.

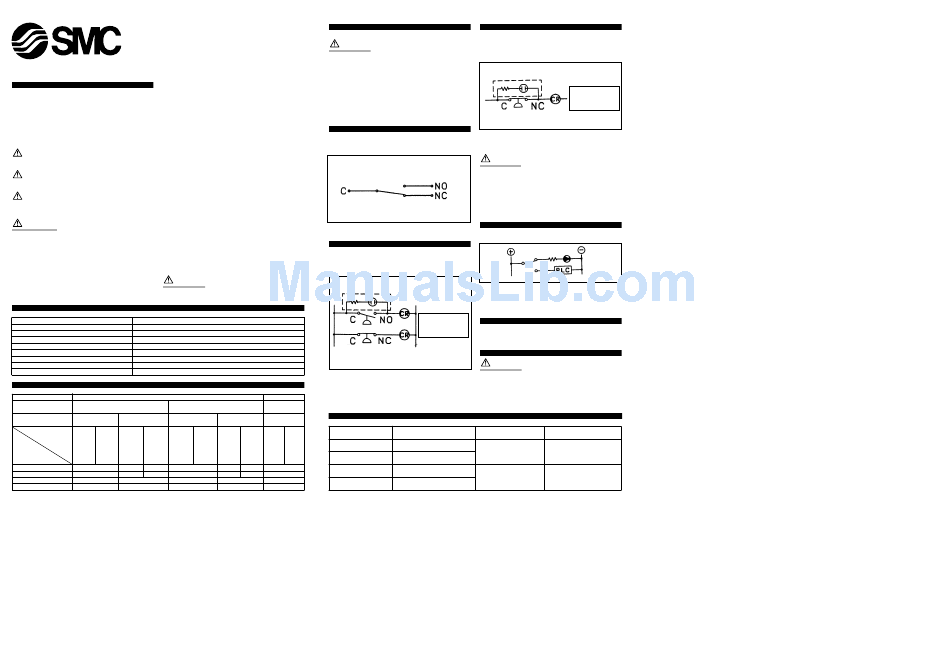

Wiring (Fig 1)
Ensure that the microswitch is wired in accordance with the diagram
shown in Fig 1.
Fig 1
Wiring indicator lamp OFF (pressure rise) (Fig 2)
To wire the indicator lamp to go "OFF" on detecting a pressure rise,
both the A and B contacts must be wired in accordance with the
diagram shown in Fig 2.
Air
1 MPa (10.2 kgf/cm 2 )
0.8 MPa (8.2 kgf/cm 2 )
2 )
-5 to +60°C (No freezing)
1ab
2 ) or less
±0.05MPa {±0.5 kgf/cm 2 }
0.15 kg
Fig 2
IS3*10
Inductive load (A) Non-inductive
load (A)
Models
Motor load Motor load
Model
N.O. N.C. N.O. N.C. N.O. IS3000-02
IS3000-02L*
IS3100
IS3100-L*
3 2.5 1.3 0.1 IS3010-02
2 1.5 0.8 - IS3010-02L*
3 3 0.1 IS3110
0.05 - IS3110-LX
