M2 Antenna Systems 80M2L Installation Instructions Manual

SPECIFICATIONS:

Model ........................................ 80M2L
Frequency Range switchable .... 3.50-3.565 & 3.75-3.82
Gain ........................................... 6.0 dBi Free space
Front to back .............................. 15 dB
Beamwidth ............................... E=71°
Feed type ................................... Hair pin match
Feed Impedance........................ 50 Ohms Unbalanced
Maximum VSWR ....................... 1.2:1 / 2:1@band edges
Input Connector ......................... SO-239, Other avl.
FEATURES:
The recently computer upgraded and improved 80M2L is now even better, both mechanically and electrically.
Gain is up by .6 dB over older versions and efficiency is now over 95%! This is accomplished by using low loss 3/8" alu-
minum tube for the linear loading elements. Element halves start with 3" diameter tubing and taper through 2", 1-3/4", 1-
1/2", 1-1/4", 1" and 3/4", 1/2" sections to the 3/8" tips. Machined saddle clamps have replaced the U-bolts previously
used. A solid 2" O.D. Fiberglass rod, sleeved to the 3" elements, serves as the center insulator.

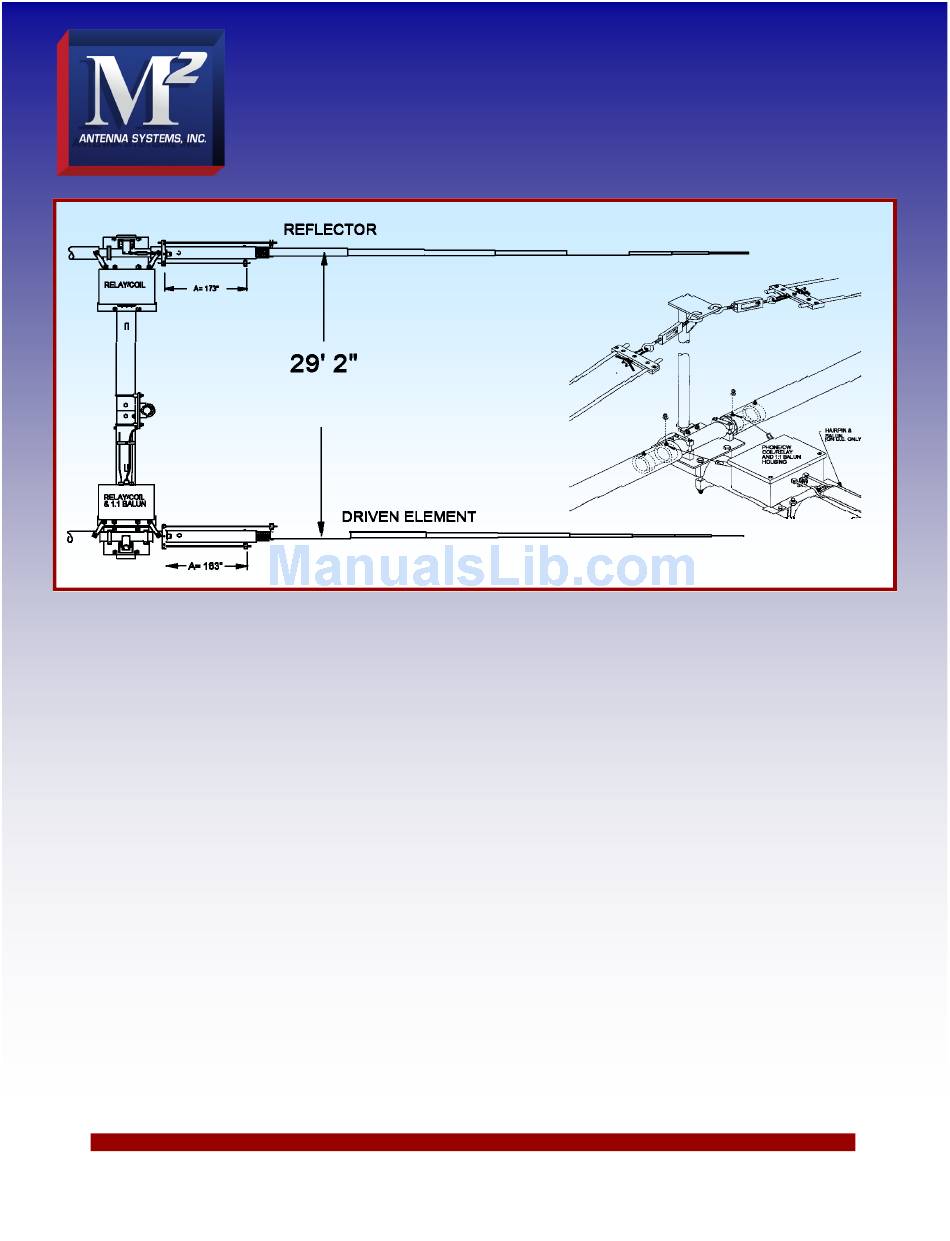

The new, highly efficient 3/8" tube linear loading system is supported above the boom and out of the element
plane to reduce inductive cancellation, provide element support, and minimize excessive element droop. New, rugged
linear loading shorting bars now allow easier assembly and adjustment. A weather proof fiberglass housing now protects
the 5 kW 1:1 balun, the relays for phone-CW switching and the high Q (600+) CW band coils. These top quality compo-
nents are now accessible for frequency adjustments in the 3.5 to 3.6 MHz section of the band. Relays requires 12 VDC at
0.3A supply. Look forward to outgunning even the best of the 4 squares! Parts are available for upgrading older 80M2's.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 80M2L
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2014 M2 Antenna Systems Incorporated
Power Handling ......................... 3 kW, Higher avl.
Boom Length / Dia ..................... 29.5' / 3.0 x .125 Wall
Element Length / Dia. ................ 105 Ft / 3" to 1/2"
Turning Radius: ......................... 55' Ft
Stacking Distance ...................... Call
Mast Size ................................... 2" to 3 " Nom.
Wind area / Survival .................. 19.5 Sq. Ft. / 100 MPH
Weight / Ship Wt. ....................... 200Lbs. / 295 Lbs.
