EN

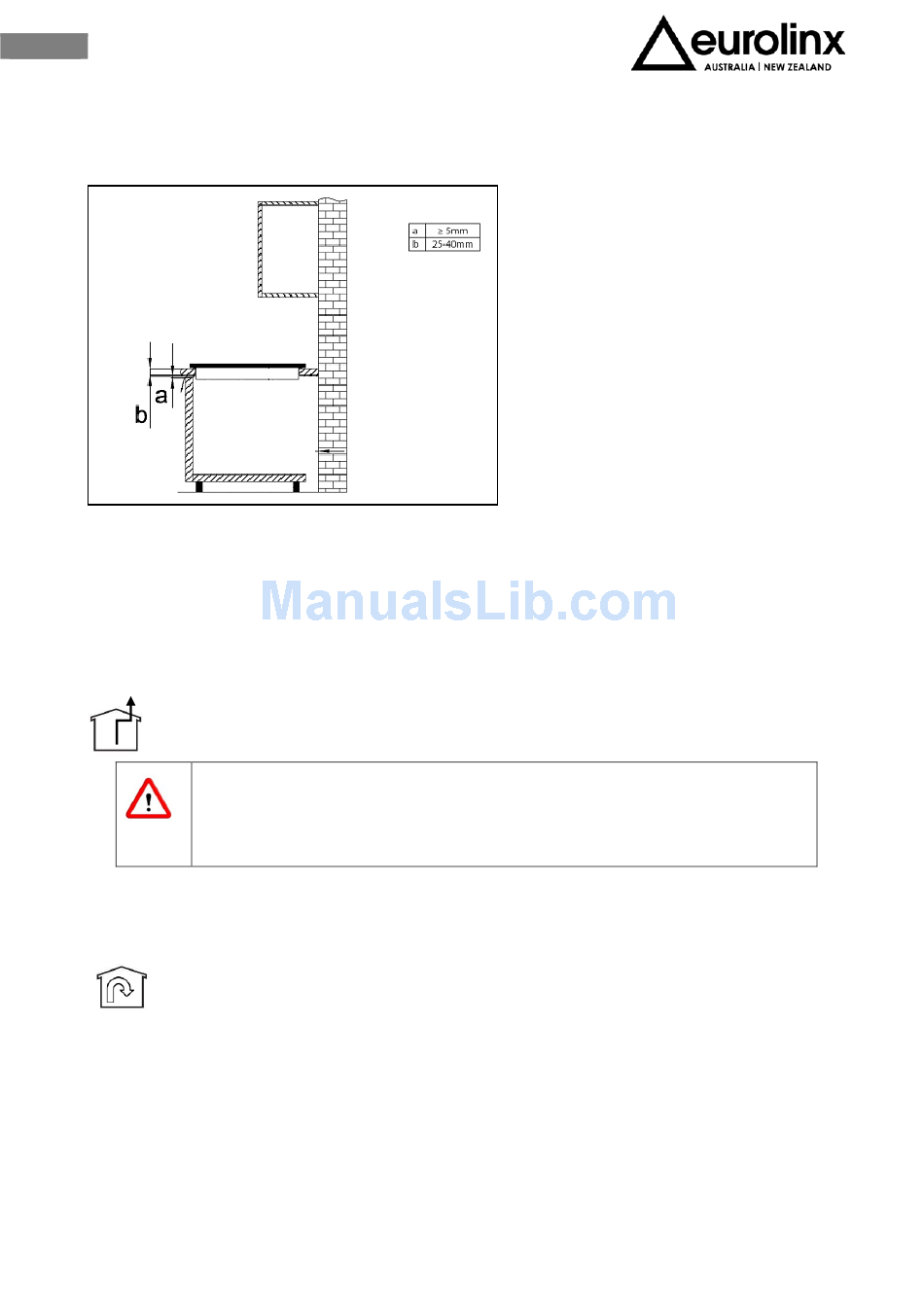

On the front part there must be an opening of no less than 5 mm (Fig.3.5 dimension a).
It is recommended to install the appliance only after having installed the kitchen base
cabinet in order to avoid eventual damages to the glass hob.
Fig. 3.5

III.1.a AIR TREATMENT

Questo dispositivo consente il trattamento dei fumi di cottura. Il sistema può essere
utilizzato in modalità aspirante o filtrante (kit filtri a carbone attivo o kit con filtro al
plasma fornibile separatamente).
Duct-out. The kitchen fumes are expelled outside through the pipe (not supplied
with the hood) connected to the engine exhaust fitting
Warning! The piping must never be connected to combustion
discharge pipes (stoves, boilers, burners, etc.)
The use of long pipes, with many bends, corrugated and with a diameter smaller than the
motor outlet's will cause a decrease in extracting performance and a noise increase.
Filtering (recycling). The fumes pass through the active charcoal anti-odour
filter (not supplied with the hood) to be purifed and recycled in the kitchen.
Fig. 3.5
9
