III.2.a INDUCTION HOB INSTALLATION

To leave the necessary space for the air pipes it is important to install the induction hob
with the centerline more than 300mm away from the wall on the back that may be
present.
Installation of the induction hob may be flush or non-flush.

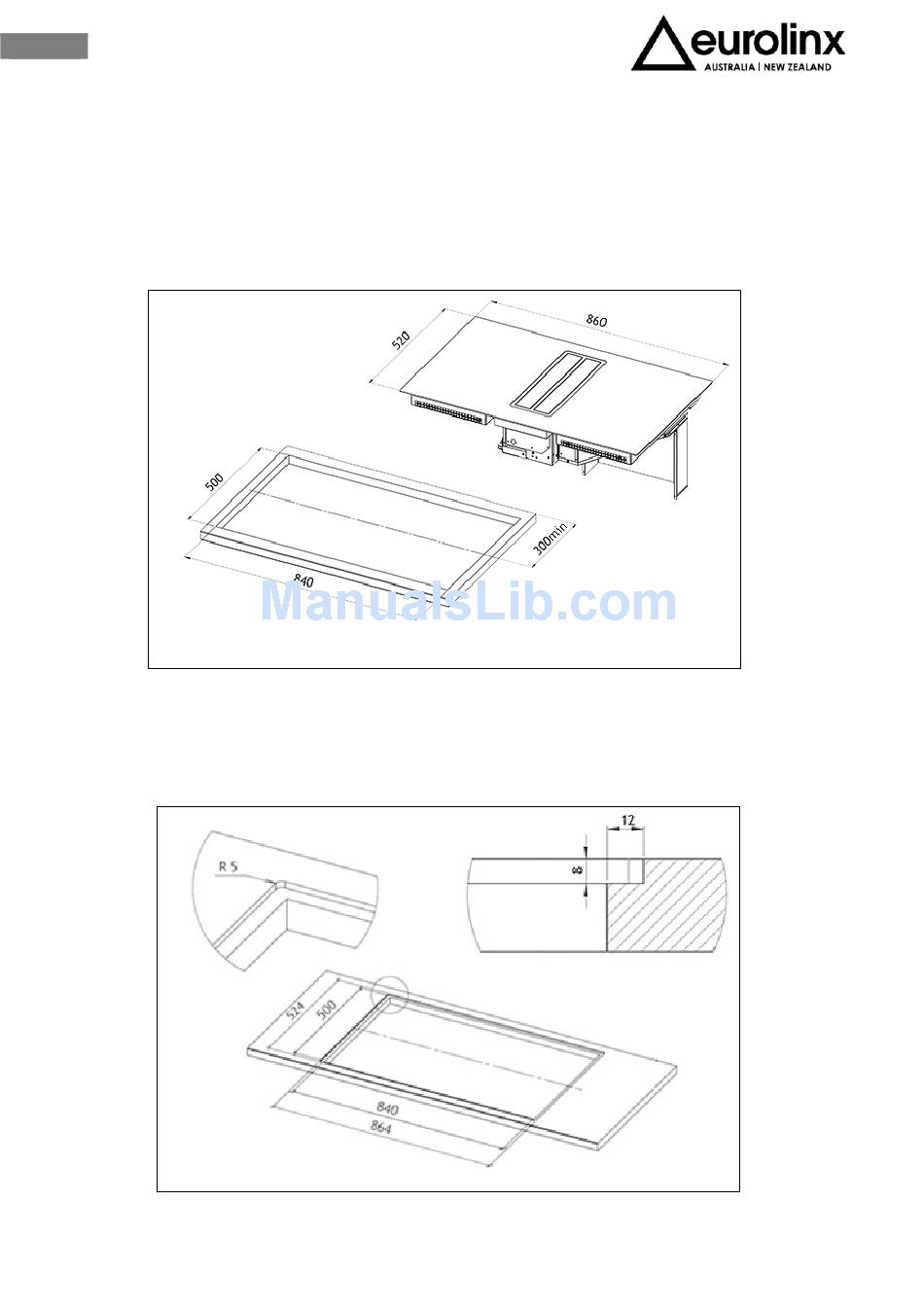

NON-FLUSH INSTALLATION: Prepare the hole in the worktop as shown on Fig. 3.8.
Fig. 3.8
FLUSH INSTALLATION: Prepare the hole in the worktop, mill the worktop along the entire
edge of the hole. Be sure to comply with the dimensions indicated on Fig. 3.9.
Fig. 3.9
11
