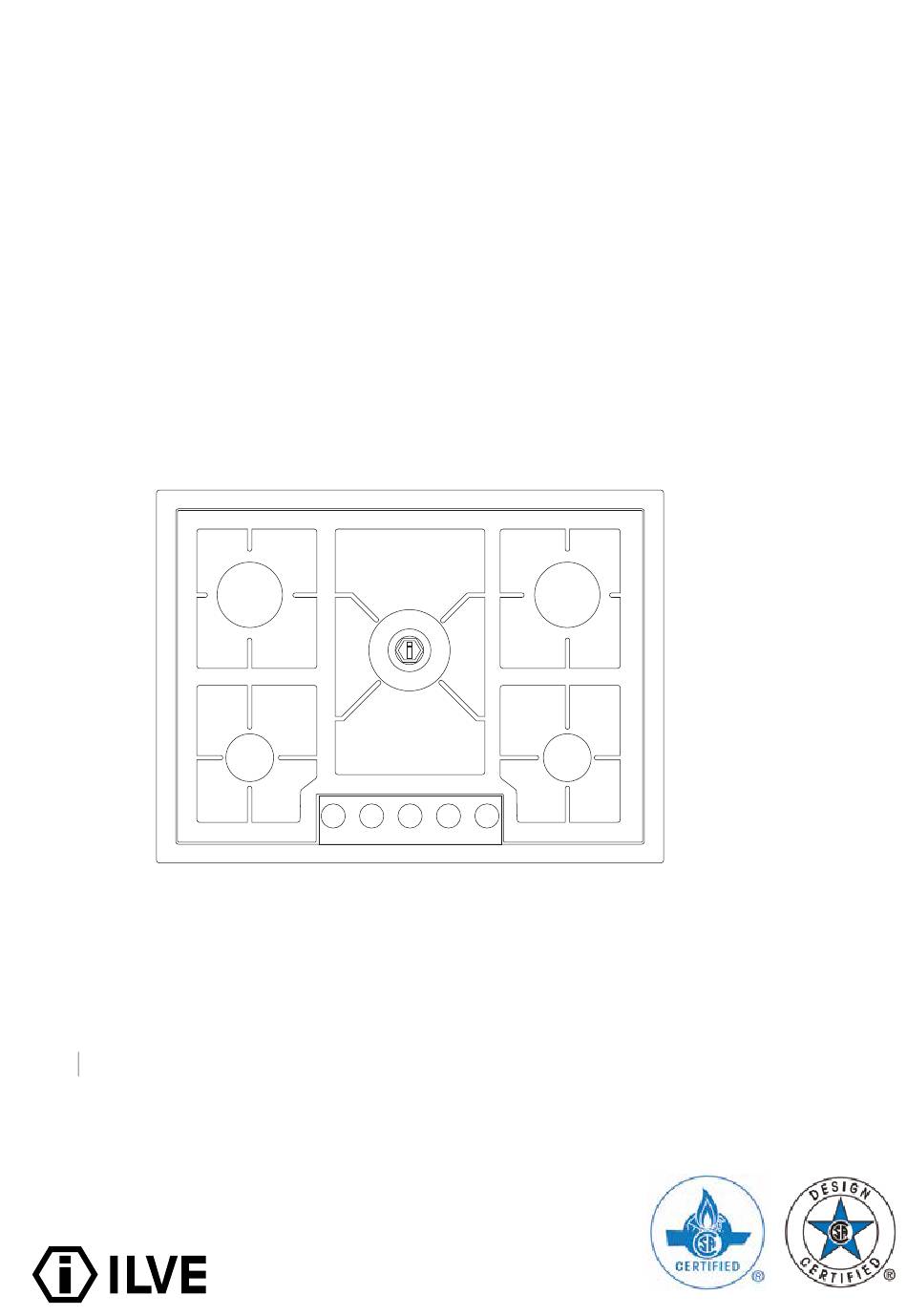

- Page 1 COOKTOPS - UHC P (75/95/125/36/48/965/1265) - UHC PT (75/95/125/36/48/965/1265) - UHC PM (95/125) - UHC PMT (95/125) EN User’s manual...
-
Page 3: Important - Please Read And Follow
IMPORTANT - PLEASE READ AND FOLLOW NEVER use this appliance as a space heater to heat or WARNING: If the information in this manual is not warm the room. Doing so may result in carbon monoxide followed exactly, a fine or explosion may result causing poisoning (only for GAS cooking). -
Page 4: Important Instruction
IMPORTANT INSTRUCTION Keep appliance area clear and free from combustible Proper Installation – Be sure your appliance is properly materials, gasoline and other flammable vapors and liquids. installed and grounded by a qualified technician. Never Use Your Appliance for Warming or Heating the All Appliances: Room. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS This appliance shall only be installed by an authorized person. of turning on or shutting off gas to the appliance. This appliance shall be installed in accordance with the WARNING: Do not use aerosol sprays in the vicinity of this manufactures installation instructions, IMPORTANT: this appliance while it is in operation. -
Page 6: Gas Connection
GAS CONNECTION The gas cooktop requires a 120 VAC, 60Hz electrica lsupply to operate the electronic ignition system. The service should have its own 15 amp circuit breaker. A ground fault circuit interrupter (GFCI)is not recommended and may cause interruption of operation. -
Page 7: Performance Checklist
PERFORMANCE CHECKLIST All burners are tested before leaving the factory. There are no CAUTION adjustments for the burners if connected according to the Before proceeding with the conversion, shut off the gas supply information on the rating plate. Check each burner for proper to the appliance prior to disconnecting the electrical power. - Page 8 ADAPTATION OF THE PRESSURE REGULATOR FOR USE WITH DIFFERENT TYPE OF GAS The pressure regulator supplied with the appliance is a See the table below for GAS supply pressure requirements convertible type pressure regulator for use with Natural Gas at Note: Cooking with the probe cannot be used in the “DEFROST,”...
- Page 9 CHANGING THE INJECTORS AND ADJUSTING THE AIR TA BLE 2 Bu rne r In p ut rat e O r if i c e s i ze S i mm e r rate B y - pass or if i c e s i ze [B t u / h ] ( 1 / 1 0 0 ) m m [ B t u/ h]...
- Page 10 CONVERSION KIT INSTALLATION INSTRUCTIONS C C O O N N V V E E R R S S I I O O N N K K I I T T I I N N S S T T A A L L L L A A T T I I O O N N I I N N S S T T R R U U C C T T I I O O N N S S NATURAL GAS C C O O D D E E P P R R O O P P A A N N E E G G A A S S...
- Page 11 BURNERS OF THE HOB Replacement of the injectors Adjusting the minimum gas flow Procedure: SR - R When installing the gas cooktop you must check that the minimum gas flow of the burners is correctly regulated. If the 1. Remove the grill and the burners from the hob. type of gas is changed it is indispensable to adjust the minimum 2.
- Page 12 INSTRUCTIONS FOR USE Burners Position the flame divider “b” correctly. To do this, align the 4 teeth “c” of the flame divider with the recess “d” of the Symbol Function Knob aluminium Cup “a”. index DUAL DUAL Service and maintenance instructions Replacement Parts.
- Page 13 INSTRUCTIONS FOR USE Recommended pans according to burner size: Cleaning and maintenance ATTENTION: burners with nanotechnological coating Some cleaning and washing methods are recommended in order to preserve the quality of the coating. Burners Diameter Ø (cm) Meduim 12 ÷ 20 Allow the product to cool down at room temperature before cleaning it.
-
Page 14: Gas Cooktop Installation
GAS COOKTOP INSTALLATION Functions Remove the cooktop, gas pressure regulator, burner grates and 7/16 burner caps from the shipping package. Lower the cooktop into the countertop cut-out opening. Center the cooktop in the opening and check that the front edge of cooktop is parallel to the front edge of the countertop. -
Page 15: Gas Supply Connection
GAS SUPPLY CONNECTION Assemble the flexible metal connector from the gas supply pipe to the gas pressure regulator. You will need to determine the fittings required, depending on the size of your gas supply line, flexible metal connector and shut-off valve. Refer to the illustration below. -
Page 16: Installation
INSTALLATION UHC(P/PT)75.., UHC(P/PT/PM/PMT)95.., UHC(P/PT/PM/PMT)125.., Proximity to Side Cabinet Installation The cooktop may be installed directly to existing base cabi- nets. The cooktop CANNOT be installed directly adjacent to sidewalls, tall cabinets, tall appliances, or other side vertical surfaces above 36” (91.4 cm) high. There must be a minimum of 8”... - Page 17 INSTALLATION UHCP965.., UHCP1265.., UHCP36..., UHCP48.., Proximity to Side Cabinet Installation The cooktop may be installed directly to existing base cabi- nets. The cooktop CANNOT be installed directly adjacent to sidewalls, tall cabinets, tall appliances, or other side vertical surfaces above 36” (91.4 cm) high. There must be a minimum of 8”...
-
Page 18: Wiring Diagram
WIRING DIAGRAM LED Display L3 8 BURNERS KEYS UHC P 1265... UHC P 48... White 6 BURNERS 8 BURNERS Green Black Ignition electrode Ignition microswitch Ignition trasformer Terminal board Phase Neutral 5 BURNERS UHC (P/PT) 75... UHC (P/PT/PM/PMT) 95... 8 BURNERS 5 BURNERS 8 BURNERS 5 BURNERS... - Page 19 ELECTRICAL AND GAS POWER TABLE COMPLETE COMPLETE APPLIANCE BURNERS APPLIANCE ELECTRIC RATED GAS RATING [Btu/h] INPUT [W] DUAL DUAL MODEL 7000 Btu 10500 Btu 18000 Btu 22000 Btu with flat frame UHCP75 - UHCP75N UHCPT75 - UHCPT75N BUILT-IN GAS COOKTOP UHC(P/PT)75 53000 UHC(P/PT)75N...
- Page 20 ILVE S.p.A Via Antoniana, 100 — 35011 — Campodarsego (PD) Italy T. +39 049 9200990 / Email: mail@ilve.com cod. EI33960760000EN 06/2025...
