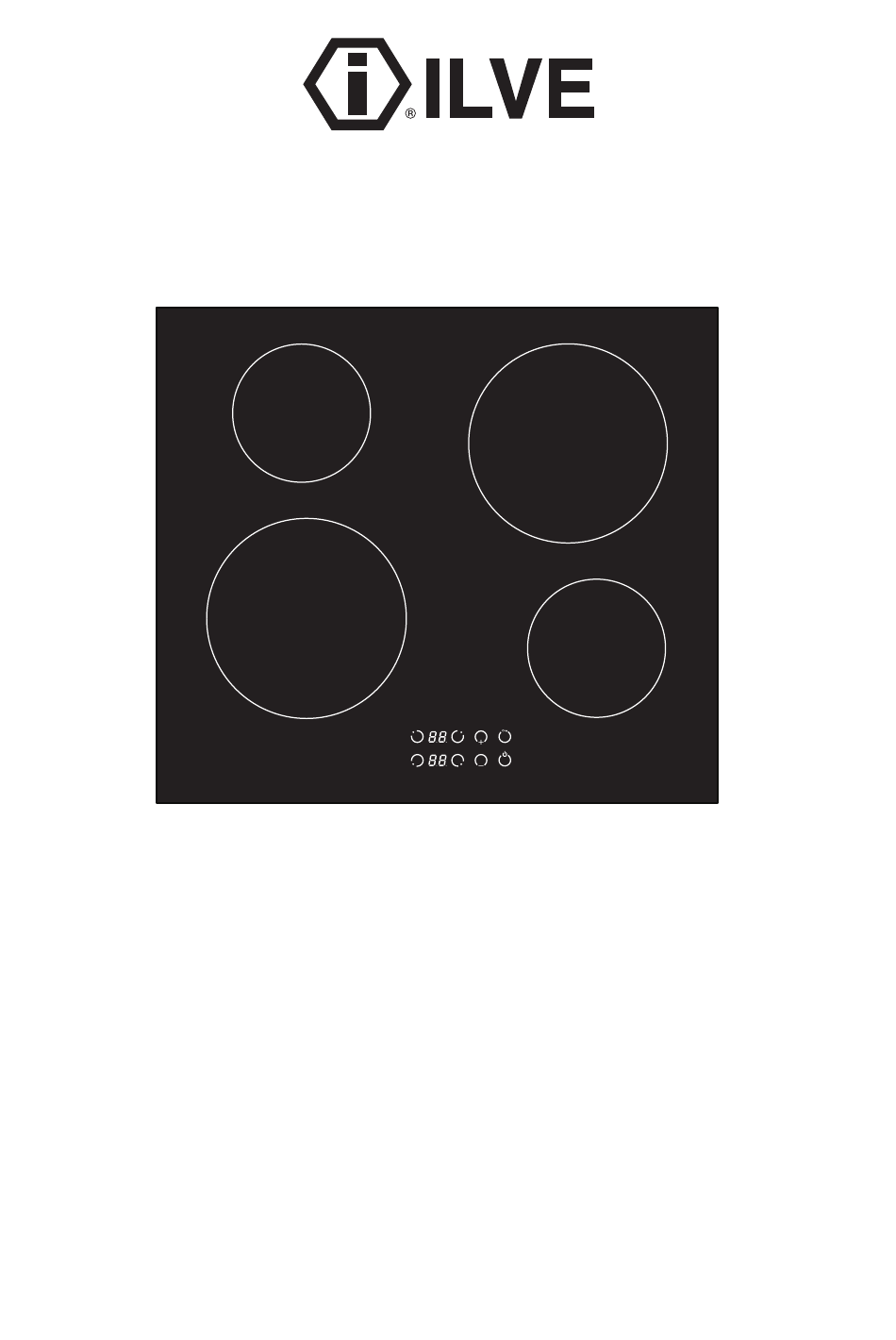

- Page 1 KHVI60TC USER MANUAL - GB -...
-
Page 2: Table Of Contents
Dear clients, Thank you for having chosen our induction ceramic hob. In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for a later consulting. Summary Safety ................................ -
Page 3: Safety
SAFETY Precautions before using • Unpack all the materials. • The installation and connecting of the appliance have to be done by approved specialists. The manufacturer can not be responsible for damage caused by building-in or connecting errors. • To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface. -
Page 4: Precautions In Case Of Appliance Failure
Power * Power* Front left 1500 W 2000 W 210 mm Rear left 1200 W 1600 W 145 mm KHVI60TC 7200W Rear right 1500 W 2000 W 210 mm Front right 1200 W 1600 W 145 mm • The given power may change according to the dimensions and material of the pan. -
Page 5: Use Of The Appliance
USE OF THE APPLIANCE Sensitive touches Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger touches the key, the corresponding command is activated. Display Display Designation Function Zero The heating zone is activated 1…9 Power level Selection of the cooking level Residual heat... -
Page 6: Starting-Up And Appliance Management
STARTING-UP AND APPLIANCE MANAGEMENT Before the first use Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface. Induction principle An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. - Page 7 Once the heater is selected, the power level can be selected by touching the [-][+] keys. In each increase/ decrease a beep sounds and the corresponding display shows the new power level. With the heater at power level 0, the [-] key raises the cooking level to 9. With the heater at power level 9, the [+] key raises the cooking level to Booster level a beep sounds and the heater display shows “P”...
-
Page 8: Cooking Advices
COOKING ADVICES Pan quality Adapted materials: steel, enamelled steel, cast iron, ferromagnetique stainless-steel, aluminium with ferromagnetique bottom. Not adapted materials: aluminium and stainless-steel without ferromagnetique bottom, cupper, brass, glass, ceramic, porcelain. The manufacturers specify if their products are compatible induction. To check if pans are compatibles : •... -
Page 9: Maintenance And Cleaning
MAINTENANCE AND CLEANING Switch-off the appliance before cleaning. Do not clean the hob if the glass is too hot: risk of burn. • Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly. •... - Page 10 • To guarantee under the bottom of the hob casing a space of 20 mm to ensure a good air circulation of the electronic device. • To guarantee between the work top and the top of the drawer or oven a space of 5 mm to allow the exit of the air flow.
-
Page 11: Electrical Connection
ELECTRICAL CONNECTION The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously. Protection against the parts under tension must be ensured after the builting-in. The data of connection necessary are on the stickers place on the hob casing near the connection box.
