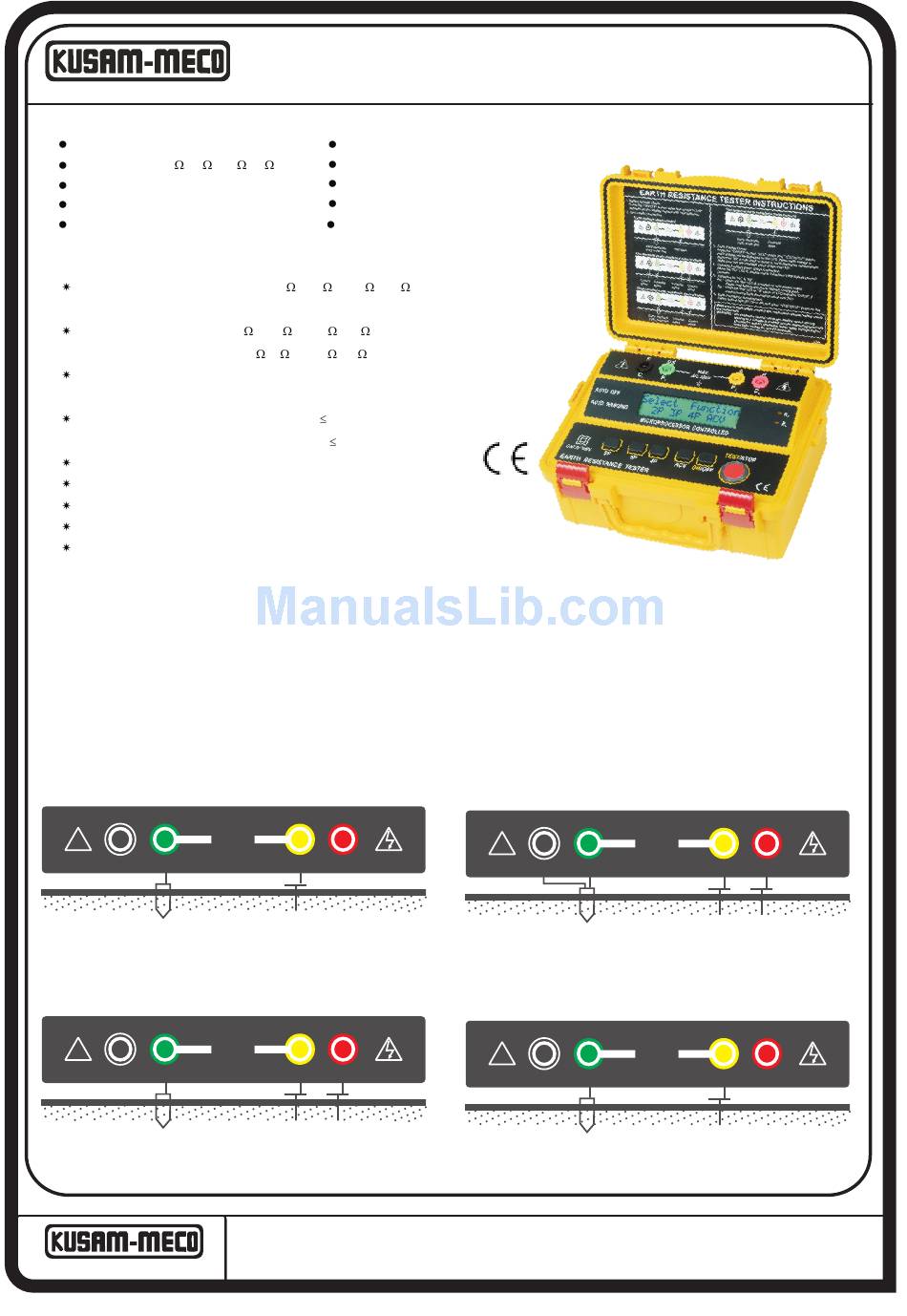

Kusam-meco KM 4234 ER Operation Manual

Digital 4 wire earth resistance tester

Advertisement

Quick Links

An ISO 9001:2008 Company
FEATURES :
Auto-ranging microprocessor controlled.
Earth testing range 2 , 20 , 200 , 2k .
Earth voltage measuring : 0-300V AC.
Automatic C spike check.
Automatic P spike check.
GENERAL SPECIFICATIONS :
Measuring Ranges : Earth Resistance : 0-2 , 0-20 , 0-200 , 0-2k
Earth Voltage
Earth Resistance Resolution : 0-2 : 0.01
Accuracy : Earth Resistance : ± 2%rdg ± 3dgt
Earth Voltage
Temperature & Humidity : Operating : 0°C ~ 50°C 80% R.H.
Pollution Degree : 2
Altitude : up to 2000m.
Power Supply : 1.5V (AA) X 8
Dimensions : 250 (L) x 190 (W) x 110 (D)mm
Weight : Approx. 1430g (battery included)
ACCESSORIES :
Test leads (red-15m, black-10m, yellow-10m, green-5m), 4 Auxillary earth spikes, User Manual, Carrying case,
Shoulder belt, Batteries & Fuse (0.1A 250V)
SAFETY :
LVD : EN 61010-1 : 2001; EMC : EN 61326-1:2006 Class B
CISPR 11 : 2003/A1:2004/A2:2006 Group 1 Class B; EN 61326-1:2006, EN 61000-4-2:2009, EN 61000-4-4:2004,
EN 61000-4-6:2009, EN 61000-4-3:2006/A1:2008; EN61010-1 CAT IV 300V.
EARTH VOLTAGE MEASUREMENT
E
ES
!
C
P
1
1
Earth electrode
(rod) under test
THREE-TERMINAL EARTH RESISTANCE MEASUREMENT
E
ES
!
C
P
1
1
Earth electrode
(rod) under test
An ISO 9001:2008 Company
Navin.com/D.drive/sandeep gupta/New catlog Dec 2011/KM-4234ER.cdr
®
DIGITAL
4 WIRE
LCM display.
Auto power OFF.
Data Hold.
Robust, Compact and easy to carry.
2-wire test, 3-wire test, 4-wire test.
: 0-300V AC
0-20 : 0.1
0-200 : 1
0-2k : 10
: ± 2%rdg ± 3dgt
Storage : -10°C ~ 60°C 80% R.H.
S
H
MAX.
AC 300V
P
C
2
2
Test spike
S
H
MAX.
AC 300V
P
C
2
2
Potential
Current
spike
spike
®
G-17, Bharat Industrial Estate, T. J. Road, Sewree (W), Mumbai - 400 015. INDIA.
Sales Direct.: 022 -24156638,
Email : kusam_meco@vsnl.net,
EARTH RESISTANCE TESTER
FOUR-TERMINAL EARTH RESISTANCE MEASUREMENT
E
ES
!
C
P
1
1
Earth electrode
(rod) under test
TWO-TERMINAL EARTH RESISTANCE MEASUREMENT
E
ES
!
C
P
1
1
Earth electrode
(rod) under test
All Specifications are subject to change without prior notice
Tel. : 022-24124540, 24181649,
Website : www.kusamelectrical.com
Model KM 4234ER
S
H
MAX.
AC 300V
P
C
2
2
Potential
Current
spike
spike
S
H
MAX.
AC 300V
P
C
2
2
Potential
spike
Fax : 24149659
