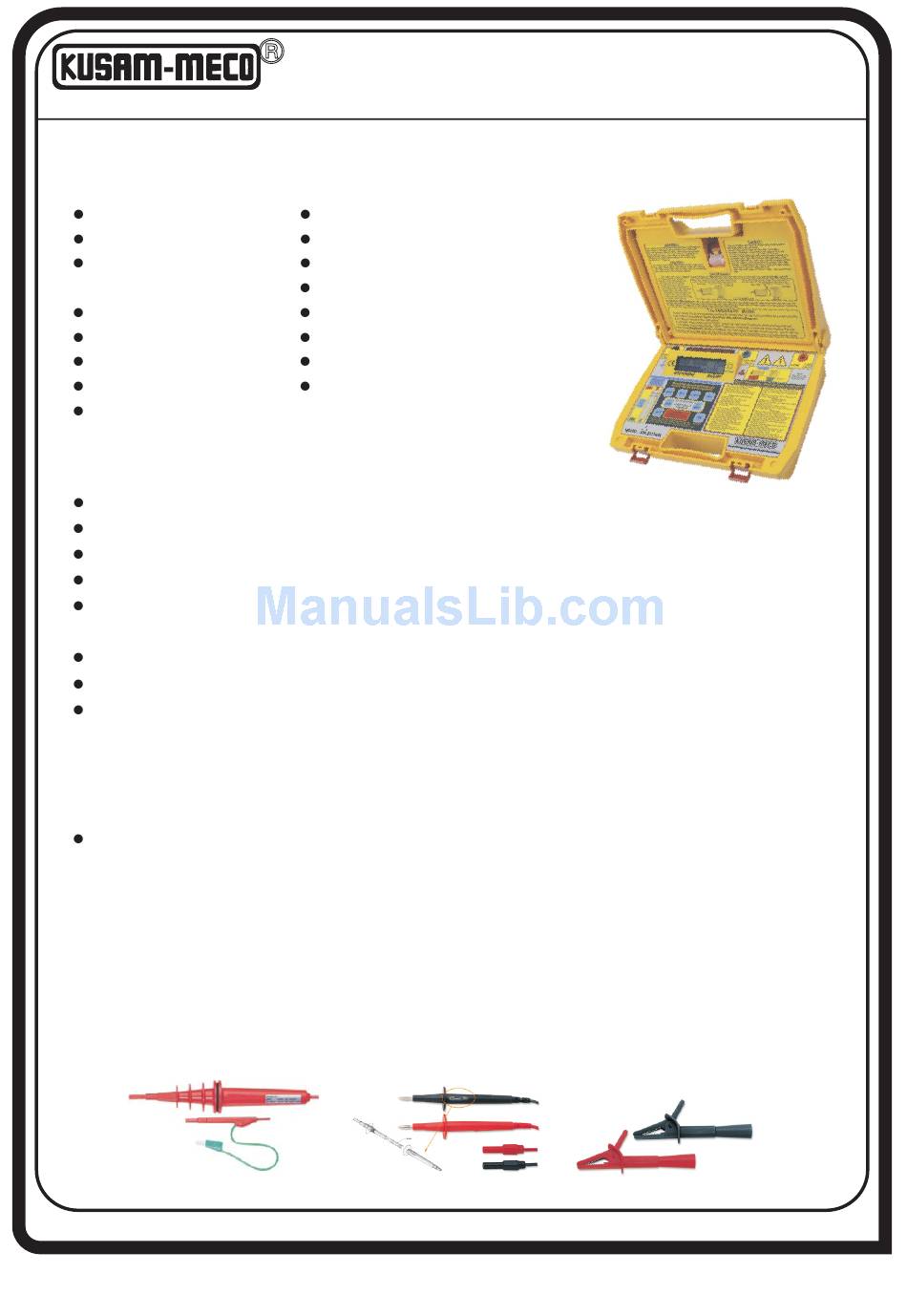

Kusam-meco KM 6213A IN Instruction Manual

An ISO 9001:2008 Company
WITH POLARIZATION INDEX & DIELECTRIC ABSORPTION RATIO
SPECIAL FEATURES :
Variable High Voltage 500V-10kV DC.
Voltage Steps of 500V.
Shows Polarization Index (auto) &
Dielectric Absorption Ratio.
Fast Calculation and Display.
Colour Coded Terminals-Test Leads.
Warning Voltage Detection.
Large LCD Display with timer.
Automatically Stops the Test.
FEATURES :
The KM 6213A IN is the KUSAM-MECO premium model of High Voltage Digital Insulation Resistance Testers.
The KM 6213A IN has new added features with a low consumption High Performance processor.
It displays results much faster and has more advanced features.
The KM 6213A IN has Automatic Polarization Index and Dielectric Absorption Ratio Calculations.
Results are displayed on the new High Contrast LCD. It's mounting angle makes it more readable for all users, in
different working conditions.
The user's manual reflects the new features and added benefits of this instrument.
It has Auto-Off, Auto-Stop, EnerSave
Once you start the tester, it waits for your selection. You can go up and down in voltage to select the voltage at which you want to
test the insulation. Once you have selected that voltage, you need to connect the test leads to the Insulation Tester to measure.
Then it measures voltage to ensure there is no voltage present on the equipment under test. If there is a voltage present,
it will warn you to disconnect the circuit before proceeding. If it's free of any voltage, then you can proceed with the testing.
This ensures that no damage is done to the Insulation Tester KM 6213AIN.
One of the new innovation on this tester is also the way the new unique calibration process works. It's fully digital, has no
moving parts and does not require expensive and complicated jigs or computers systems to be calibrated.
It's cheaper to maintain than any other Digital HV Insulation tester on the market today. The KM 6213AIN is supplied standard
with our Premium test Leads Kit, the AL-50.
SAFETY :
CE marking according to the Low Voltage Directive (2006/95/EC) and EMC Directive (2004/108/EC, 92/31/EEC, & 93/68/EEC) and found to comply with
the essential requirement of the directives.
IEC/EN 61010-1: 2001. EN 61326-1, EN 55011+A1+A2, EN 61000-3-2+A2, EN 61000-3-3+A1+A2, EN 61000-4-2+A1+A2, EN 61000-4-3+A1,
EN 61000-4-4, EN 61000-4-5+A1, EN 61000-4-6+A1, EN 61000-4-8+A1, EN 61000-4-11.
AL-50 Red Test Lead standard
Navin com/D:Sandeep Gupta/New Catlog Dec 2011/KM-6213AIN.cdr
®
DIGITAL INSULATION RESISTANCE TESTER
Automatically Switch tester OFF.
Works from 8 x C size 1.5V Alkaline Battery.
Very Low Power Consumption.
Guard Connection to reduce errors.
Lightweight, Robust & Compact
Automatic Discharge of Circuits
Low Battery Indication.
Includes AL-50 Red Test Leads (3 meter) as
standard, Blue Test lead (1.25 meter) &
Green Test lead (1.25 meter).
TM
and is a non destructive tester.
AL-30 TestLead
10KV HIGH VOLTAGE
Model KM 6213AIN
All Specifications are subject to change without prior notice
AL-30C TestLead
41
