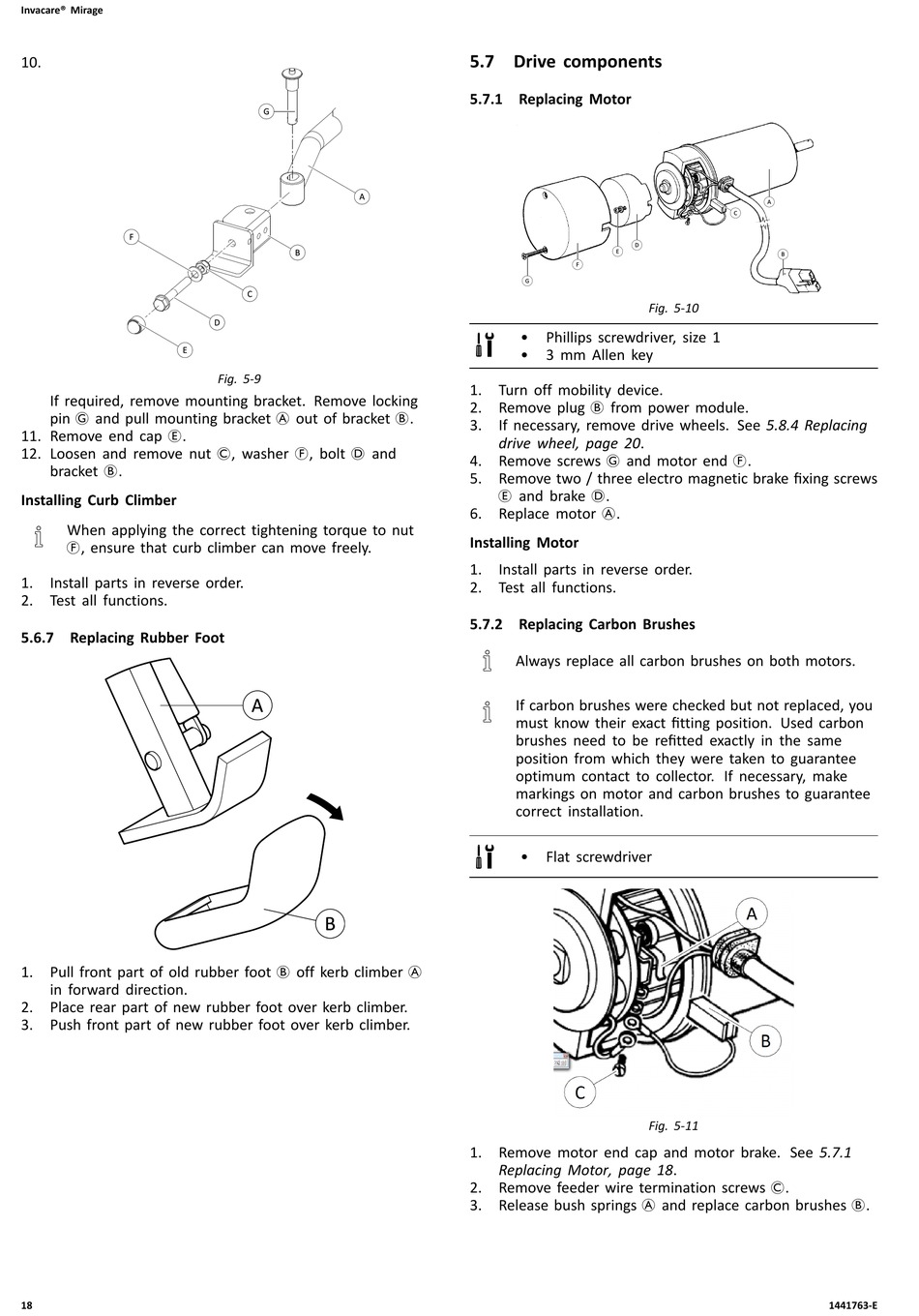

10.
If required, remove mounting bracket. Remove locking
pin G and pull mounting bracket A out of bracket B.
11. Remove end cap E.
12. Loosen and remove nut C, washer F, bolt D and
bracket B.
Installing Curb Climber
When applying the correct tightening torque to nut
F, ensure that curb climber can move freely.
1. Install parts in reverse order.
2. Test all functions.

5.6.7 Replacing Rubber Foot

1. Pull front part of old rubber foot B off kerb climber A
in forward direction.
2. Place rear part of new rubber foot over kerb climber.
3. Push front part of new rubber foot over kerb climber.
18
Fig. 5-9

5.7 Drive components

5.7.1 Replacing Motor

• Phillips screwdriver, size 1
• 3 mm Allen key
1. Turn off mobility device.
2. Remove plug B from power module.
3. If necessary, remove drive wheels. See 5.8.4 Replacing
drive wheel, page 20.
4. Remove screws G and motor end F.
5. Remove two / three electro magnetic brake fixing screws
E and brake D.
6. Replace motor A.
Installing Motor
1. Install parts in reverse order.
2. Test all functions.

5.7.2 Replacing Carbon Brushes

Always replace all carbon brushes on both motors.
If carbon brushes were checked but not replaced, you
must know their exact fitting position. Used carbon
brushes need to be refitted exactly in the same
position from which they were taken to guarantee
optimum contact to collector. If necessary, make
markings on motor and carbon brushes to guarantee
correct installation.
• Flat screwdriver
1. Remove motor end cap and motor brake. See 5.7.1
Replacing Motor, page 18.
2. Remove feeder wire termination screws C.
3. Release bush springs A and replace carbon brushes B.
Fig. 5-10
Fig. 5-11
