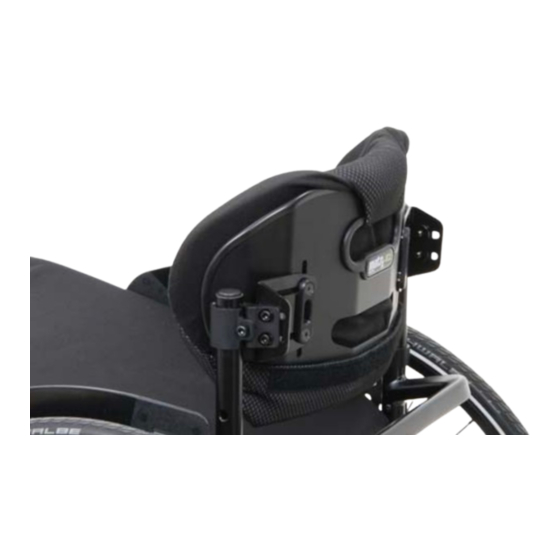

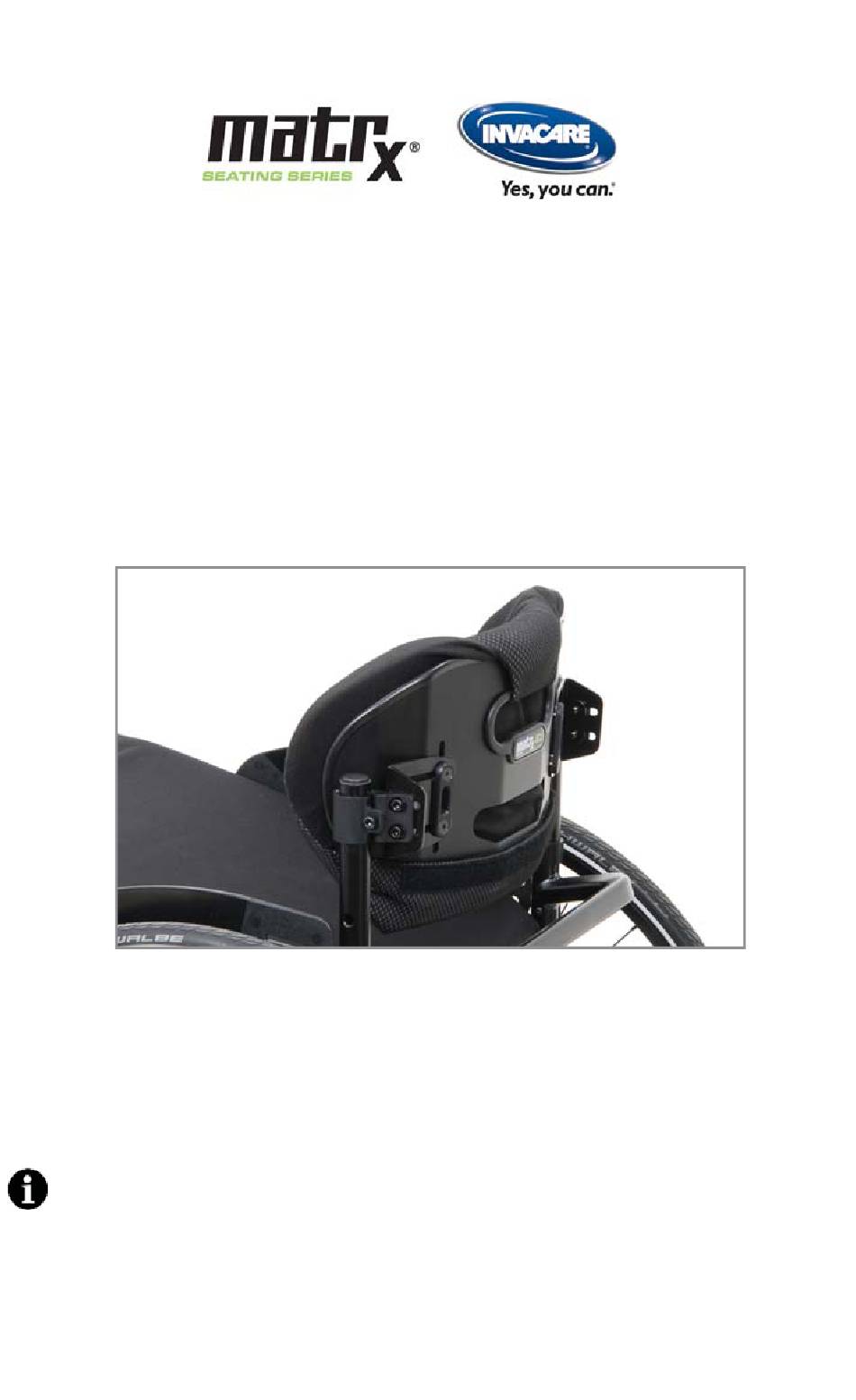

- Page 1 Invacare Matrx E2S/E2D B LITE FIXED HARDWARE INSTALLATION SET-UP MANUAL IMPORTANT! The installation instructions contained in this manual must only be carried out by a qualified service technician. TRD0591 Rev A...
- Page 2 This manual may not be reproduced or reprinted either partly or completely without previous written consent from Motion Concepts or its statutory representatives. This manual is compiled from the latest specifications and product information available at the time of publication. We reserve the right to make any necessary changes as they become necessary. Any changes made to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased.
-
Page 3: Safety Symbols
1.2 GENERAL SAFETY AND INSTALLATION WARNINGS! WARNING! Risk of Serious Injury ® ® When establishing the mounting position for the Invacare Matrx back, ensure the stability of the wheelchair is not compromised. Adjusting the forward and aft position and/or angle of the backrest will alter the user’s center of gravity within the wheelchair. - Page 4 2.0 M E2S/E2D B ATRX LITE NSTALLATION 2.1 FITTING THE E2S/E2D BACK TO THE WHEELCHAIR: PRIOR to installation, verify the diameter of the wheelchair back canes (A) and the width between back canes (B) Contour Hardware fits the following Model # Description Depth back cane diameters:...
- Page 5 2.2 E2 FIXED HARDWARE ASSEMBLY OVERVIEW IMPORTANT! The E2 Fixed hardware utilizes a unique fixed mounting plate* in place of the (seahorse) mounting plate and mounting bracket ass’y used on the E2 Removable Hardware. If converting from removable to fixed hardware, the cane clamps from the E2 Removable Hardware assembly are re- used to complete the E2 Fixed Hardware installation.
- Page 6 2.2.2. F IXED ARDWARE Standard Mounting Hardware for Back Heights 18” (46cm) or greater Optional Mounting Hardware for Back Heights 12/14/16” (31/36/41cm)) 2 - EasySet Fixed Mounting Plate (A) 4 - Width/Height Adjustment Screws (B) 2 - E2 EasySet Washer Plate (C) 2 - E2 EasySet Nut Plate (D) 2 - Cane Clamp Assy’y (E) 2 - Cane Inserts 7/8”...
- Page 7 2.3 E2 FIXED MOUNTING PLATE INSTALLATION IMPORTANT! Unless otherwise necessary, always ensure that adjustments are made symmetrically on the left and right mounting brackets. IMPORTANT! The Fixed MiniSet mounting plates allow for installation of the E2S/E2D back onto back canes up to 1”...
- Page 8 Fig. 2. EasySet Fixed Mounting Plate Installation INSIDE VIEW (cover removed) REAR VIEW (installed) 2.4 CANE CLAMP ORIENTATION The orientation of the Cane Clamps (A) provides approximately 4” (102 ) of fore/aft adjustment for the Fixed EasySet hardware, and 3” (76mm) of fore/aft adjustment for the Fixed MiniSet hardware.
- Page 9 Standard Orientation Inverted* Orientation Front Front +2.0” (51mm) -2.0” (51mm) Fig. 4b Fig. 4a (*Requires the mounting plate to be disassembled from the cane clamp and rotated 180°) 2.5 CANE CLAMP INSTALLATION (see Fig. 5a/5b; Fig 6a/6b) NOTE: The mounting position of the cane clamps should be estimated so that, when installed, the installed Elite E2S/E2D back will be close to the desired back height.
- Page 10 Fig. 5b Install MiniSet Clamps at the same height and parallel to each other REAR VIEW Fig. 6b Install EasySet Clamps at the same height and parallel to each other REAR VIEW 2.6 E2 BACK INSTALLATION, SET-UP & ADJUSTMENT NOTE: During final set-up, we recommend having the end user seated in the wheelchair to best fit/position the Elite E2S/E2D back.
- Page 11 Installation, Width and Height Adjustment: (see Fig. 7a/7b, 8a/8b) 1. Loosen (do not remove) the adjustment screws (A), then adjust the width of both mounting plates (B) horizontally (1) so that the mounting plates align with the left and right cane clamp assemblies- see Fig 7a/8a. To install the Elite E2 Back (2), insert the mounting screws (C) through the cane clamp (E) and mounting plate (B), and secure into the threaded nut plate (D).
- Page 12 Fig. 7b Back Height/Centering Adjustment- Fixed MiniSet: use hash marks along vertical slots to adjust the mounting brackets symmetrically Adjust the Back Height and Center the Back Shell between the back canes 4”- 5” 10-13 Cu sh io n Fig. 8a Back Installation- Fixed EasySet: - 12 -...
- Page 13 Fig. 8b Back Height/Centering Adjustment- Fixed EasySet: use hash marks along vertical slots to adjust the mounting brackets symmetrically Adjust the Back Height and Center the Back Shell between the back canes Cu sh i on 4”- 5” 10-13 2.6.2 B EPTH AND NGLE DJUSTMENT...
- Page 14 Back Depth and Angle Adjustment - Fixed MiniSet Fig. 9a Fig. 9b Back Depth and Angle Adjustment - Fixed EasySet Fig. 10a Fig. 10b NOTE: The range of depth adjustment will be reduced when the angle of the Elite E2S/E2D back (fixed mounting plate) is altered. - 14 -...
- Page 15 3.0 E E2S/E2D A LITE CCESSORIES 3.1 E2 HEADREST INTERFACE PLATE The E2 Headrest Interface Plate (A) is included only with Elite E2S/E2D backs for Back Heights ranging from 14” (36cm) up to 20” (51cm). The E2 headrest interface is compatible with most industry standard headrest mounting hardware, including our Matrx Elan Headrest Hardware (sold separately).
- Page 16 Invacare Distributors Belgium & Luxemburg: Eastern Europe, Middle East & CIS: Österreich: Invacare nv Autobaan 22 Invacare EU Export Kleiststraße 49 Invacare Austria GmbH Herzog B-8210 Loppem D-32457 Porta Westfalica / Odilostrasse 101 Tel: (32) (0)50 83 10 10 Germany...
