Outdoor Lifestyles CASTLEWOOD Dimension Manual

Specifications
MODEL MODEL FRONT WIDTH HEIGHT
Actual Actual
CASTLEWOOD
52-7/8
5"
[129]
16-1/8"
[408]
Left Side View
Additional information can be found online at www.fireplaces.com
Please consult the manufacturer's
installation manual for all details and
requirements before making a final
design layout decision.
FRONT WIDTH BACK WIDTH
Framing Framing Actual Actual Framing Framing
53-7/8 37-1/8 53-7/8
37-1/8"
[943]
74° TYP.
Top View
41-7/8"
[1067]
52-7/8"
[1343]
Front View
BACK WIDTH HEIGHT
Actual Actual Framing Framing Actual Actual
74-1/8 74-1/2 27-1/2
11-1/8"
[281]
27-1/2"
[699]
74-1/8"
[1883]
70-3/4"
[1797]
60"
[1525]
38"
[967]
3-3/4"
[97]
16-1/8"
[408]
Castlewood
Castlewood

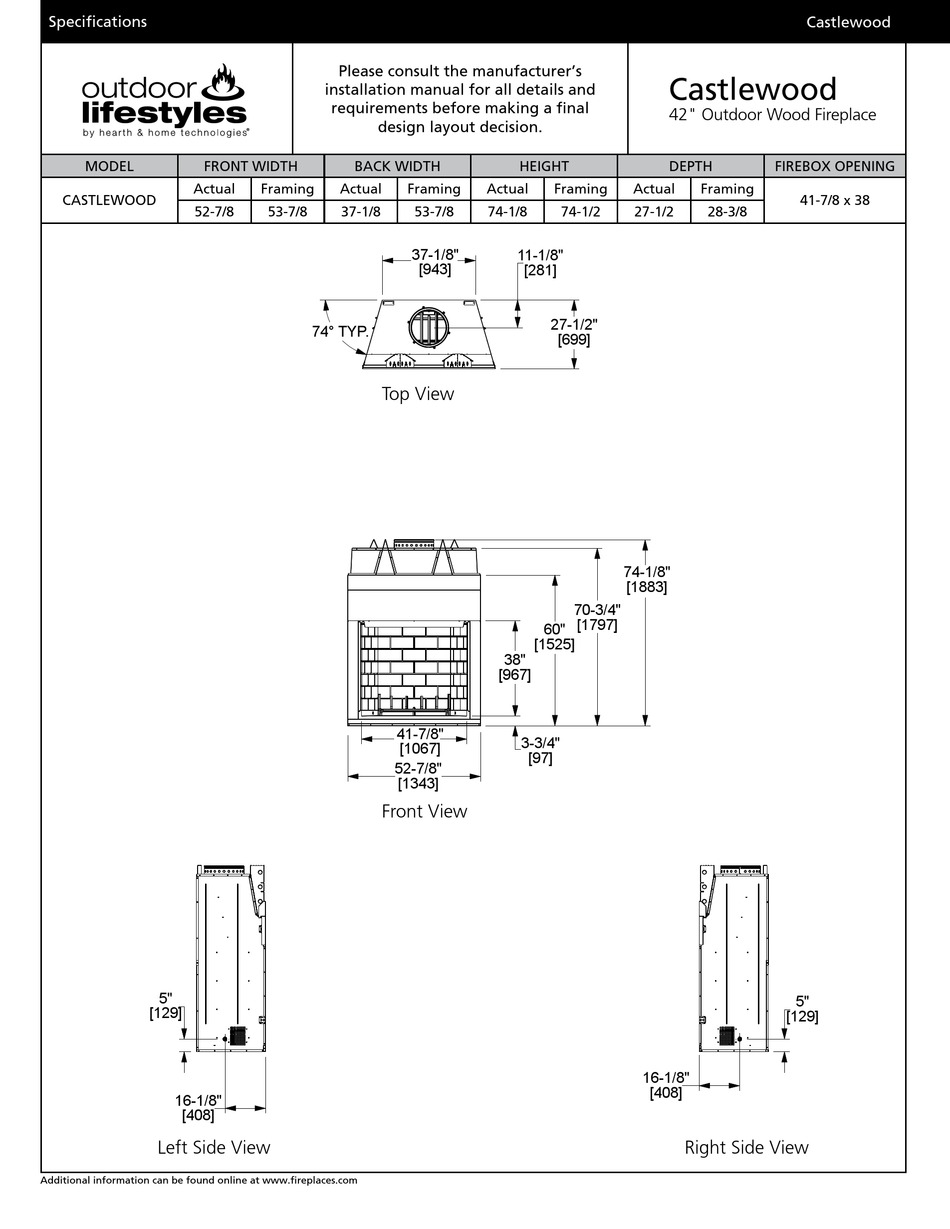

42" Outdoor Wood Fireplace
DEPTH DEPTH FIREBOX OPENING VIEWING AREA
Framing Framing
41-7/8 x 38
28-3/8
5"
[129]
Right Side View
