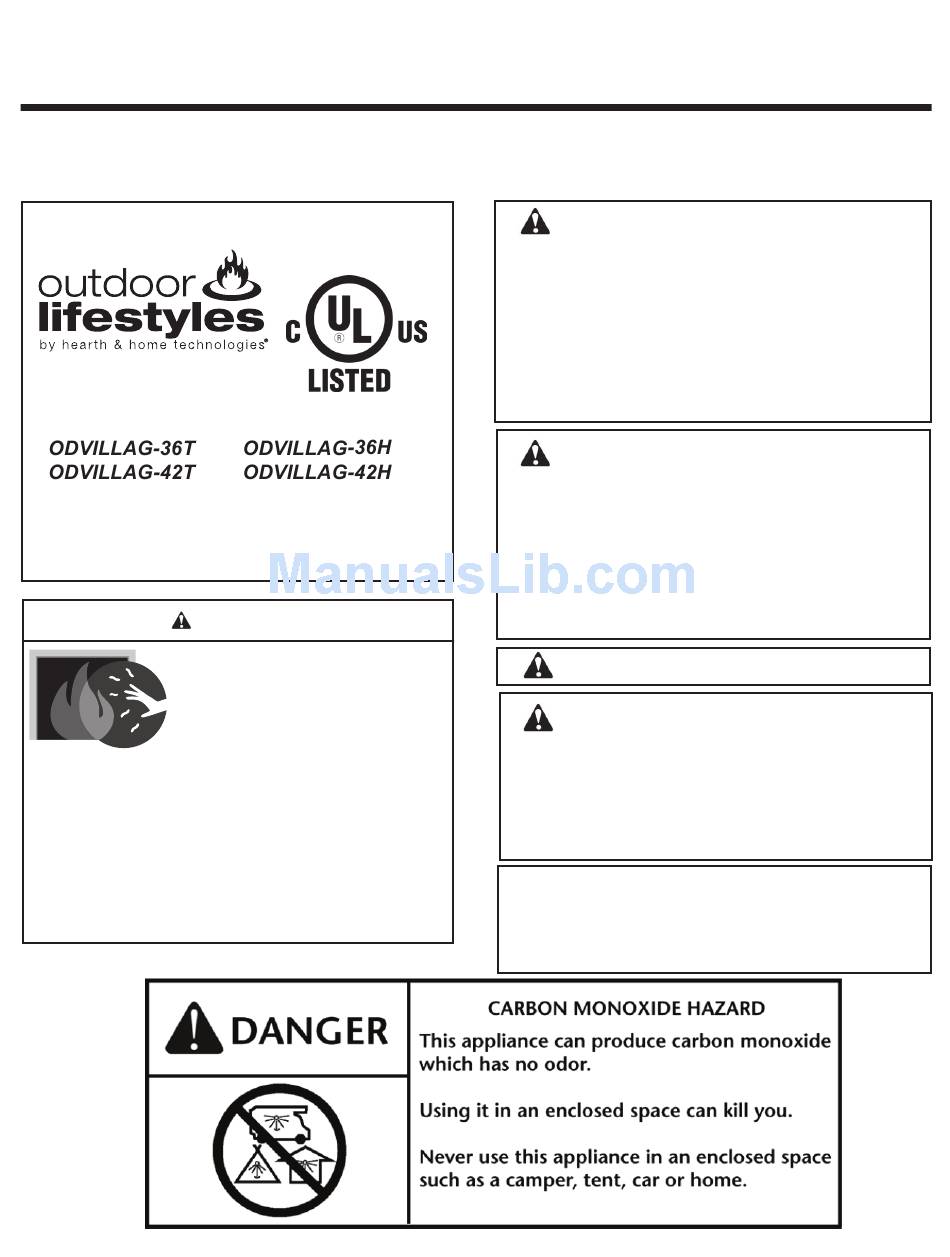

INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE:
DO NOT discard this manual!
Model(s):
Outdoor Decorative Gas Appliance
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
•
•
• Keep children away
• CAREFULLY SUPERVISE children in same area as
fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable
materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14
Installation Manual
Installation and Fireplace Setup
WARNING
DO NOT touch glass until it is cooled
NEVER allow children to touch glass
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open fl ame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fi re department.
WARNING
Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance
An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
WARNING: For outdoor use only.
WARNING: Improper installation, ad-
justment, alteration, service or maintenance
can cause injury or property damage. Read
the installation, operating and maintenance
instructions thoroughly before installing or
servicing this equipment.
This appliance is only for use with the type(s) of gas indicated
on the rating plate. This appliance is not convertible for use
with other gases, unless a certifi ed kit is used.
NOT for use with solid wood fuel.
Pour demander un exemplaire
en français de ce Manuel
du propriétaire, visitez www.
heatnglo.com/translations.
1
Advertisement
Table of Contents
Related Manuals for Outdoor Lifestyles ODVILLAG-36T
Summary of Contents for Outdoor Lifestyles ODVILLAG-36T
- Page 1 Installation Manual Pour demander un exemplaire en français de ce Manuel du propriétaire, visitez www. Installation and Fireplace Setup heatnglo.com/translations. INSTALLER: Leave this manual with party responsible for use and operation. OWNER: Retain this manual for future reference. NOTICE: DO NOT discard this manual! DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open fl ame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fi re department.
-
Page 2: Table Of Contents
B. Accessories 4 Framing and Clearances C. Contact Information A. Appliance Dimension Diagram B. Clearances to Combustibles C. Constructing the Appliance Enclosure D. Securing and Leveling the Appliance E. Non-Combustible Material Installation 5 Gas Information A. Fuel Conversion B. Gas Pressure C. Gas Connections Provision D. High Altitude Installations E. Air Shutter Setting Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... - Page 3 Finishing Section 6 (Pg. 16) Combustible materials not installed in non-combustible areas. Verified all clearances meet installation manual requirements. Mantels and wall projections comply with installation manual requirements. Appliance Setup Section 7 (Pg. 18) All packaging and protective materials removed. Refractory, logs, media and embers installed correctly. Optional mesh doors properly installed. Manual bag and all of its contents are removed from the fireplace and given to the party responsible for use and operation. Started appliance and verified no gas leaks exist. Hearth & Home Technologies recommends the following: • Photographing the installation and copying this checklist for your file. • That this checklist remain visible at all times on the fireplace until the installation is complete. Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed: Comments communicated to party responsible __________________________ by ______________________on _________ (Builder/Gen. Contractor) (Installer) (Date) 4072-171 • Rev A • 07/25/13 Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14...
-
Page 4: Welcome
5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia) 543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending (ou autres brevets americains et etrangers en attente). Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 5: Warranty
B. Warranty Outdoor Lifestyles by Hearth & Home Technologies™ Warranty Hearth & Home Technologies (“HHT”) extends the following warranty for all Outdoor Lifestyles by HHT™ brand products (“Products”) that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the Product at the site of installation, and to any transferee taking ownership of the Product at the site of installation within one year following the date of original purchase, that the Product will be free from defects in materials and workmanship at the time of manufacture. - Page 6 The Product has been over-fired or operated in atmospheres contaminated by chlorine, fluorine, or other damaging chemicals. Over-firing can be identified by, but not limited to, warped plates or tubes, rust colored cast iron, bubbling, cracking and discoloration of steel or enamel finishes and cracking or spalling of refractory or cementitious materials. • The Product is subjected to prolonged periods of dampness, condensation, ice or snow. • There is any damage to the Product or other components due to water or weather damage which is the result of, but not limited to, improper chimney or venting installation. LIMITATIONS OF LIABILITY: Repair or replacement in accordance with the provisions of this warranty will be the owner’s exclusive remedy for and will constitute HHT’s sole obligation under this warranty, under any other warranty (express or implied), or in contract, tort or otherwise; provided, however, that if HHT is unable to provide repair or replacement in an expedient and cost effective manner, HHT may discharge all such obligations by refunding the purchase price of the Product. No employee, agent, dealer, or other person is authorized to give any warranty on behalf of HHT. TO THE EXTENT ALLOWED BY LAW, HHT MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHT WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING OUT OF DEFECTS IN OR USE OF THE PRODUCTS. Some states do not allow exclusions or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific rights; you also may have other rights, which vary from state to state. The duration of any implied warranty is limited to the duration of the warranty period specified herein. Outdoor Lifestyles Warranty - 2108-975B - 2/15/13 - page 2 Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14...
-
Page 7: Product Specific & Important Safety Information
Test Method for Behavior of Metals, in a Vertical Tube Furnace at 750° C D. Combustible Materials • Materials made of or surfaced with any of the following materials: - Wood - Compressed paper - Plant fibers - Plastic - Plywood/OSB - Sheet rock (drywall) • Any material that can ignite and burn; flame proofed or not, plastered or un-plastered Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 8: Getting Started
When installed on exterior walls: Hearth & Home any part of the gas control system which has been under Technologies recommends that the appliance enclosure water. be constructed outside the structure’s weather envelope. Where the platform meets the wall, use a flashing detail similar to that required for attached decks. Enclosure platforms, including hearths should slope away from the Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 9: Framing And Clearances
9 1/4 in. 1067 mm 191 mm 194 mm KNOCKOUT 235 mm 7 1/2 in. 47 1/8 in. KNOCKOUT 191 mm 1197 mm Figure 4.1 Appliance Dimensions Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 10: Clearances To Combustibles
57-3/4 in. (1467 mm) ODVILLAG-36 67 7/8 21 1/2 1724 1067 ODVILLAG-42 73 7/8 21 1/2 1876 1219 Figure 4.2 Appliance Locations Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 11: Constructing The Appliance Enclosure
• Insulation and other materials must be secured to prevent accidental contact. • The enclosure must be properly blocked to prevent blown insulation or other combustibles from entering and making contact with fireplace or chimney. • Failure to maintain airspace may cause overheating and a fire. Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 12: Securing And Leveling The Appliance
• Secure the appliance to the framing by using nails or screws through the nailing tabs. • Secure the appliance to the floor by inserting two screws through the pilot holes at the bottom of the appliance. NAILING TABS (BOTH SIDES) Figure 4.4 Proper Positioning and Securing of an Appliance Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 13: Gas Information
National Fuel Gas Code, ANSI Z223.1/NFPA 54, or International Fuel Gas Code. Figure 5.1 Gas Line Installation Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 14: High Altitude Installations
4500 feet (1370 m) above sea level. Please consult provincial and/or local authorities having jurisdiction for installations at elevations above 4500 feet (1370 m). Check with your local gas utility to determine proper orifice size. E. Air Shutter Setting Refer to instructions provided with log set. Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 15: Finishing
12 in. noncombustible material (required) 0 in. 0 in. High Temperature Sealant (300° F/149° C min.) Top and Side Seal Joint Figure 6.1 Non-combustible Facing Diagram Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 16: Mantel And Wall Projections
406 432 457 483 508 533 559 584 610 635 660 686 711 737 762 787 813 838 Noncom bustible in. 12 mm 305 330 356 381 406 432 457 483 508 533 559 584 610 635 660 686 711 737 Figure 6.2 Minimum Vertical and Maximum Horizontal Dimensions of Combustibles Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 17: Mantel Legs Or Wall Projections
TO PERPENDICULAR WALL 8-1/2 IN. (216 MM) MIN. FROM FIREPLACE OPENING TO PERPENDICULAR WALL Figure 6.3 Mantel Leg or Wall Projections (Acceptable on both sides of opening) Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 18: Appliance Setup
Install ONLY doors or fronts C. Install Hood approved by Hearth & Home Technologies. Unapproved • Loosen six screws located on bottom edge of upper face. doors or fronts may cause fireplace to overheat. • Slide hood into position. • Tighten six screws previously loosened. Figure 7.1 Install Hood Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 19: Maintenance And Service
The appliance should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that control compartment, burners, and circulating air passageways of the appliance be kept clean. Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 20: Reference Materials
Non-combustible Front 4072-174 Hood 4072-244 Upper Trim 4072-121 Left Side Trim 4072-125 Firescreen Rod 1 piece 4072-133 Firescreen Assembly 4072-019 Lower Trim 4072-120 Right Side Trim 4072-124 Nailing Flange Qty 4 req 4044-161 Conversion Kit,LP LPK-ODVILLAG Installation Instructions and Owner’s Manual 4072-170 Additional service parts following page. 11/13 Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... - Page 21 13.4 13.1 13.3 13.2 Herringbone Refractory 13.1 Hearth Refractory, 36.38” F x 17.88” D x 21.18 B SRV4072-101 13.2 Back Refractory, 17.25” W x 20.93” H 4072-106 13.3 Side Refractory, Right, 17.25” W x 18.21” H 4072-108 13.4 Side Refractory, Left, 17.25” W x 18.21” H 4072-109 13.5 Corner Shield Qty 2 req 4072-145 13.6 Retainer Qty 3 req 4072-250 Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14...
- Page 22 Non-combustible Front 4072-175 Hood 4072-210 Upper Trim 4072-123 Left Side Trim 4072-125 Firescreen Rod 1 piece 4072-134 Firescreen Assembly 4072-020 Lower Trim 4072-122 Right Side Trim 4072-124 Nailing Flange Qty 4 req 4044-161 Conversion Kit,LP LPK-ODVILLAG Installation Instructions and Owner’s Manual 4072-170 Additional service parts following page. 11/13 Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14...
- Page 23 13.4 13.1 13.3 13.2 Herringbone Refractory SRV4072-104 13.1 Hearth Refractory, 42.38” F x 17.88” D x 21.18 B 4072-107 13.2 Back Refractory, 17.25” W x 26.93” H 4072-108 13.3 Side Refractory, Right, 17.25” W x 18.21” H 4072-109 13.4 Side Refractory, Left, 17.25” W x 18.21” H Corner Shield Qty 2 req 4072-145 13.5 Retainer Qty 3 req 4072-250 13.6 Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14...
-
Page 24: Accessories
B. Accessories Mesh Doors DSVILLA36 DSVILLA42 Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14... -
Page 25: Contact Information
5890485, 5941237, 6006743, 6019099, 6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7098269, 7258116, 7470729, 8147240 or other U.S. and foreign patents pending. 2000-945B Printed in U.S.A. - Copyright 2013 Outdoor Lifestyles • Villa Gas Owners/Installation Manual • 4072-170 • Rev C • 04/01/14...
