Models:
Dakota 42-B
Dakota 42H-B
• Important operating
a n d m a i n t e n a n c e
instructions included.
WARNING
If the information in these instruc-
tions is not followed exactly, a
fi re may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas:
- Do not try to light any appliance.
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or
the gas supplier.
Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev P • 11/4/13
CAUTION
DO NOT DISCARD THIS MANUAL
Read, understand
•
and follow these
instructions for safe
i n s t a l l a t i o n a n d
operation.
• CAREFULLY SUPERVISE children in same room as
• A l e r t c h i l d r e n a n d a d u l t s t o h a z a r d s o f h i g h
High temperatures may ignite clothing or other
fl ammable materials.
• Keep clothing, furniture, draperies and other combustibles
This appliance must be installed outside.
Note: An arrow () found in the text signifi es change in
content.
Installation and service of this appliance should
be performed by qualifi ed personnel. Hearth &
Home Technologies suggests NFI certifi ed or
factory-trained professionals, or
technicians supervised by an NFI
certifi ed professional.

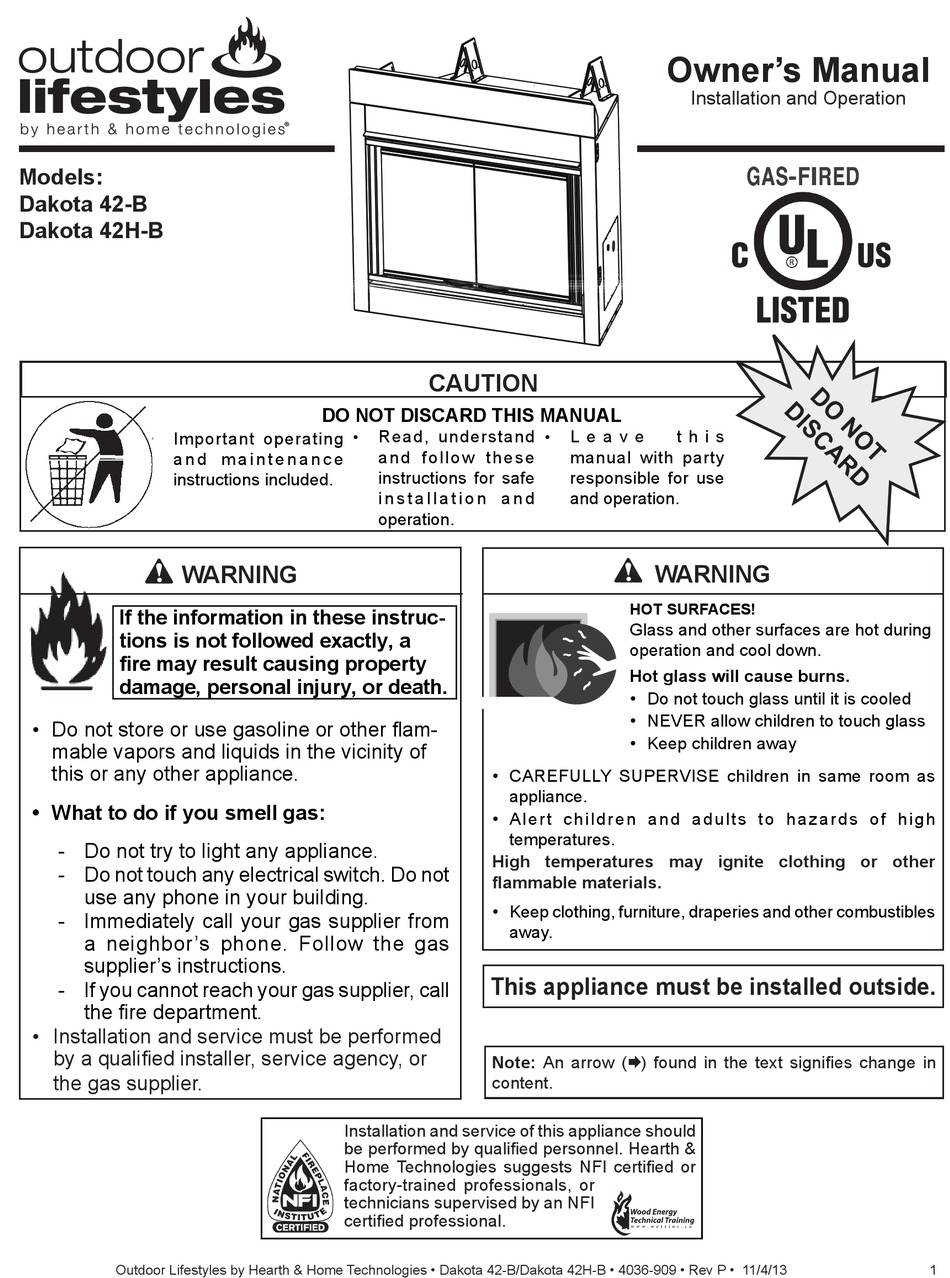

Owner's Manual
Installation and Operation
L e a v e
t h i s
•
manual with party
responsible for use
and operation.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation and cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
appliance.
temperatures.
away.
1
Advertisement
Table of Contents
Related Manuals for Outdoor Lifestyles Dakota42-B
Summary of Contents for Outdoor Lifestyles Dakota42-B
- Page 1 Owner’s Manual Installation and Operation Models: Dakota 42-B Dakota 42H-B CAUTION DO NOT DISCARD THIS MANUAL Read, understand L e a v e t h i s • Important operating • • and follow these manual with party a n d m a i n t e n a n c e instructions for safe responsible for use instructions included.
- Page 2 Approved Minimum (De Gaz) Acceptable . . 7.0 in. w.c. (Po. Col. d'eau) . . .11.0 in. w.c. (Po. Col. d'eau) Vented gas fireplace - for outdoor installation DAKOTA42-B Maximum Pressure (Pression) ..10.0 in. w.c. (Po. Col. d'eau) . .14.0 in. w.c. (Po. Col. d'eau) only.
-
Page 3: Table Of Contents
Table of Contents 1 Listing and Code Approvals 9 Appliance Setup A. Appliance Certification ......4 A. Clean the Appliance......17 B. Glass Specifications . -
Page 4: Listing And Code Approvals
Listing and Code Approvals A. Appliance Certification C. BTU Specifications Maximum Orifice Size MODELS: Dakota 42-B, Dakota 42H-B Models Input BTUH (DMS) LABORATORY: Underwriters Laboratories, Inc. (UL) Dakota 42-B (NG) 60,000 TYPE: Vented Gas Appliance STANDARD: ANSI Z21.50-2003—CSA2.22-M2003 Dakota 42-B (LP) 53,000 This product is listed to ANSI standards for “Vented Gas Fireplaces” and applicable sections of “Gas Burning Heating D. -
Page 5: Getting Started
Getting Started A. Design and Installation Considerations These appliances must be installed outdoors. Moisture Resistance: The Dakota 42-B Series outdoor gas fireplace is designed This outdoor fireplace will shed moderate amounts of water, for outdoor use. It may also be installed in screened porches but is not waterproof. Water and condensing water vapor and lanais that meet these minimum requirements: may enter the chase under certain conditions. -
Page 6: Tools And Supplies Needed
B. Tools and Supplies Needed Before beginning the installation be sure that the following tools and building supplies are available. Reciprocating saw Framing material Pliers Hi temp caulking material Hammer Gloves Phillips screwdriver Framing square Flat blade screwdriver Electric drill and bits (1/4 in.) Plumb line Safety glasses Manometer Voltmeter Tape measure Level Non-corrosive leak check solution 1/2 - 3/4 inch length, #6 or #8 Self-drilling screws C. Inspect Appliance and Components WARNING Inspect appliance and components for damage. Damaged parts may impair safe operation. -
Page 7: Framing And Clearances
Framing and Clearances Note: WARNING • Illustrations reflect typical installations and are FOR DESIGN PURPOSES ONLY. Fire Risk • Illustrations/diagrams are not drawn to scale. Provide adequate clearance: • Actual installation may vary due to individual design • Around air openings. preference. • To combustibles. • For service access. A. Select Appliance Location Locate appliance away from traffic areas. When selecting a location for your appliance it is important to consider the required clearances to walls (See Figure 3.1). -
Page 8: Clearances
B. Clearances Framing Dimensions 24-1/8 43-7/8 43-7/8 1114 1245 1114 Header height. Use only noncombustible material below the top of the top standoffs. Upper front can be covered with 0 in. to level non-combustible 1-1/2 in. (38 mm) of standoffs material or removed and replaced with 84 in. -
Page 9: Termination Locations
Termination Locations A. Vent Termination Minimum Clearances (See Note 2) J or K = FIREPLACE OPENING = AIR SUPP LY INLET = AREA WHERE FIREPLACE IS NOT PERMITTED 0 in..clearances above grade, 9 in. -
Page 10: Appliance Preparation
Appliance Preparation B. Securing and Leveling Appliance CAUTION WARNING Sharp Edges • Wear protective gloves Fire Risk and safety glasses during • Prevent contact with sagging, loose installation. insulation. • Do NOT install against vapor barriers or exposed insulation. A. Remove Logs and Shipping Cover The diagram shows how to properly position, level, and se- Remove locking screw at the top of the doors (shown in Fig- cure the appliance (see Figure 5.2). Nailing tabs are pro- ure 5.1). -
Page 11: Gas Information
Gas Information A. Fuel Conversion C. Gas Connection Before making gas connections ensure appliance being in- stalled is compatible with the available gas type. Note: Have the gas supply line installed in accordance with local building codes, if any. If not, follow ANSI Any natural or propane gas conversions necessary to meet 223.1. Installation should be done by a qualified installer the appliance and locality needs must be made by a quali- approved and/or licensed as required by the locality. (In fied technician using Hearth & Home Technologies specified the Commonwealth of Massachusetts installation must be... -
Page 12: High Altitude Installations
D. High Altitude Installations WARNING U.L. listed gas appliances are tested and approved without requiring changes for elevations from 0 to 2000 ft in the USA Fire Risk and Canada. Explosion Risk When installing this appliance at an elevation above 2000 ft, • Gas build-up during line purge may it may be necessary to decrease the input rating by chang- ignite. ing the existing burner orifice to a smaller size. Input rate • Purge should be performed by qualified should be reduced by 4% for each 1000 ft above a 2000 ft technician. -
Page 13: Valve Access
E. Valve Access After Installation • Remove the inside valve access panel by lifting it up and out. • The gas valve can be accessed after installation from behind the cement refractory panel on the right side of the fireplace. • Lift doors out and set aside. There is a washer under each door. Be careful not to lose those washers. Washer Figure 6.4 Remove Valve Access Panel • Use a phillips screwdriver to remove the exterior valve access panel (remove four screws). -
Page 14: Electrical Information
Electrical Information A. Intellifire Ignition System Wiring WARNING • This appliance is equipped with an Intellifire control valve which operates on a 3 volt system. Shock Risk • This appliance is supplied with a battery pack which is • Replace damaged wire with type 105° C located in the ON/OFF switch terminal box. A wiring rated wire. diagram is shown in Figure 7.1. • Wire must have high temperature • The battery pack requires two D cell batteries (not insulation. -
Page 15: Finishing
Finishing A. Mantel Projections Figure 8.1 shows the minimum vertical dimension of appliance mantels or other combustible projections above the top front edge of the appliance. Roof or Overhang 12 in. (305 mm) max. combustible 84 in. mantel depth (2134 mm) minimum height Then B must be at If A is: least: 6 - 36 mm 152 - 914 in. -
Page 16: Facing Material
B. Facing Material WARNING Fire Risk Do NOT obstruct air inlet or outlet grilles. Do NOT modify grilles. • Modifying or covering grilles could cause temperature rise and fire hazard. Finishing materials must not interfere with: • Air flow through grilles or louvers. • Operation of louvers or doors. • Access for service. Upper front can be covered with non-combustible Finish wall material material or removed and may be combustible, replaced with non- top &... -
Page 17: Appliance Setup
Appliance Setup A. Clean the Appliance C. Positioning the Logs Clean/vacuum any sawdust that may have accumulated in- • See Section 13.B. for log descriptions and illustrations. • Place right rear log on the grate against the appliance right side the firebox or underneath in the control cavity. side wall. WARNING Shock Risk Fire Risk Use ONLY optional accessories approved for this appliance. • Using non-listed accessories voids warranty. • Using non-listed accessories may result in a safety hazard. Figure 9.2 Right Rear Log (SRV720) • Only Hearth & Home Technologies... - Page 18 • Place front log in front of the main grate with its left end • Place right log against the rightmost front grate bar and resting on left rear log as shown. rest its rear on right rear log, angled towards the corner as shown. Figure 9.8 Right Side Log (SRV740) Figure 9.5 Front Log (SRV727) • Place right front corner log between the right hand side • Place front left log between locating bars so it rests against wall and right hand side grate bar as shown. log left side log and on top of front log. Figure 9.9 Right Front Corner Log (SRV742) Figure 9.6...
-
Page 19: Glass Assembly
• To adjust handle, loosen screws to move handles as Figure 9.10 Placement of Lava Rocks necessary and tighten screws. Glass Specifications F. Reinstall Door Lock Dakota42-B: Tempered Dakota42L-B: Tempered When logs and lava rock have been installed, or if the glass Dakota42H-B: Tempered assembly has been adjusted, reinstall the door lock by Dakota42HL-B: Tempered inserting the screw at the top of the door. Tighten screw. You... -
Page 20: Operating Instructions
Operating Instructions A. Before Lighting Appliance WARNING Before operating this appliance, have a qualifi ed Improper installation, adjustment, alteration, service or technician: maintenance can cause injury or property damage. Refer • Remove all shipping materials from inside and/or to the owner’s information manual provided with this underneath the fi rebox. appliance. -
Page 21: Lighting The Appliance
B. Lighting the Appliance Intellifire Ignition FOR YOUR SAFETY LIGHTING READ BEFORE LIGHTING INSTRUCTIONS WARNING: If you do not follow these instructions 1. Turn off wall switch. exactly, a fire or explosion may result causing property damage, personal injury or loss of life. 2. -
Page 22: After The Appliance Is Lit
C. After the Appliance is Lit CAUTION Initial Break-in Procedure When you light the appliance, you may notice that it pro- • Prevent accidental appliance operation when not duces heat which does have an associated odor or smell. If attended. you feel this odor is excessive it may require the initial three • Unplug or remove batteries from remote switch if to four hour continuous burn on high followed by a second absent or if appliance will not be used for an extended burn up to 12 hours to fully drive off any odor from paint and... -
Page 23: Troubleshooting
Troubleshooting With proper installation, operation and maintenance your gas appliance will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist a qualified service person in the diagnosis of a problem and the corrective action to be taken. This troubleshooting guide can only be used by a qualified service technician. A. Intellifire Ignition System Symptom Possible Causes Corrective Actions The ignitor/module makes Incorrect wiring. Verify “S” wire (white) for sensor and “I” wire (orange) for ignitor are connected to the noise, but no spark. correct terminals on the module and the pilot assembly. Reversed wires at the module may cause the system to make a sparking noise, but the spark may not be present at pilot hood. Loose connections or Verify there are no loose connections or electrical shorts in wiring from module to electrical shorts in the pilot assembly. The rod closest to the pilot hood should be ignitor. Verify connections wiring. underneath pilot assembly are tight; also verify the connections are not grounding out to the metal chassis, pilot burner, pilot enclosure, mesh screen if present, or any other metal object. Ignitor gap is too large. Verify gap of ignitor to pilot hood. The gap should be approximately .17 in. or 1/8 in. -
Page 24: Maintaining And Servicing The Appliance
Maintaining and Servicing the Appliance Although the frequency of appliance servicing and maintenance will depend on use and the type of installation, a qualified service technician should perform an appliance check-up at the beginning of each heating season. WARNING CAUTION Risk of injury or property damage Handle glass assembly with care. Before servicing: Note: Clean glass after initial 3-4 hours • Turn off gas. operation. Longer operation without • Turn off electricity to appliance. cleaning glass may cause a permanent • Disable remote control, if one is present. -
Page 25: Valve Service And Replacement
A. Valve Service and Replacement • Remove the inside valve access panel by lifting it up and out. Tools Required Phillips sc rewdriver /8 in., 13/16 in., 15/16 in. wrenches 7/16 in., 5 Figure 12.4 Remove Valve Access Panel Figure 12.1 Tools Required • Using a phillips screwdriver remove the exterior valve • The valve can be accessed through the valve access panel access panel. on the right side of the fireplace. • Lift doors out and set aside. • Remove grate and pilot shield (see Figure 6.2). -
Page 26: Battery Replacement
B. Battery Replacement • Using two 3/4 in. wrenches, disconnect the burner supply tube. • Remove switch cover plate from the wall. Figure 12.9 Switch Cover Plate Figure 12.7 Disconnect Burner Supply Tube • Replace two D-cell battieres. • Remove the two screws securing the valve to the valve bracket. Ground Wire Figure 12.10 Batteries Figure 12.8 Remove Valve from Valve Bracket • Replace switch cover plate. • Disconnect the pilot and orifice tubes using a 7/16 in. and a 5/8 in. wrench. -
Page 27: Maintenance And Service Tasks
B. Maintenance and Service Tasks: Inspect Maintenance Tasks Doors, surrounds and fronts 1 Inspect for scratches and nicks that can lead to breakage when exposed to heat. 2 Verify no obstructions to airflow through the louvers. 3 Verify proper clearance to combustible household objects is maintained. Glass assembly and glass 1 Inspect glass panels for scratches and nicks that can lead to breakage when exposed to heat. 2 Confirm there is no damage to glass or glass frame. Replace as necessary. 3 Verify that latches engage properly, clip studs are not stripped, and glass attachment components are intact and operating properly. Replace as necessary. 4 Clean glass using a nonabrasive cleaner such as Brasso®. Replace glass assembly if severely coated with silicate deposits that cannot be removed. Valve compartment and 1 Vacuum and wipe out dust, cobwebs, debris or pet hair. Use caution when cleaning these areas. firebox top Screw tips that have penetrated the sheet metal are sharp and should be avoided. 2 Remove any foreign objects. 3 Verify unobstructed air circulation. Logs 1 Inspect for broken, damaged or missing logs. Replace as necessary. 2 Verify correct log placement and no flame impingement causing sooting. Correct as necessary. -
Page 28: Reference Materials
Reference Materials A. Appliance Dimension Diagram Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Sec- tion 3. 31 in. (787 mm) 23-1/4 in. (591 mm) 1 in. 7/8 in. (25 mm) (22 mm) External Valve Cover 43-1/2 in. (1105 mm) 37-1/8 in. (943 mm) 23-1/8 in. (587 mm) 12-5/8 in. (321 mm) 42 in. -
Page 29: Service Parts List
B. Service Parts List Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev P • 11/4/13... - Page 30 B. Service Parts List (continued) Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev P • 11/4/13...
- Page 31 This page intentionally left blank. Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev P • 11/4/13...
- Page 32 This page intentionally left blank. Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev P • 11/4/13...
- Page 33 This page intentionally left blank. Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev P • 11/4/13...
-
Page 34: Warranty
C. Warranty Outdoor Lifestyles by Hearth & Home Technologies™ Limited Warranty Hearth & Home Technologies (“HHT”) extends the following warranty for all Outdoor Lifestyles by HHT™ brand products (“Products”) that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the Product at the site of installation, and to any transferee taking ownership of the Product at the site of installation within one year following the date of original purchase, that the Product will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered components manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period, HHT will, at its option, repair or replace the covered components. This warranty is subject to conditions, exclusions and limitations as described below. WARRANTY PERIOD: The warranty period runs for one year, beginning on the earlier of: (i) the date of invoice for the Product; (ii) in the case of new home construction, the date of first occupancy of the residence or six months after the date of sale of the Product by an HHT authorized dealer, whichever occurs first; or (iii) the date 24 months following the date of Product shipment from HHT, regardless of the invoice or occupancy date. WARRANTY CONDITIONS: • This warranty only covers Products that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the Product remains at the site of original installation. • Contact your installing dealer for warranty service. If the installing dealer is unable to provide necessary parts, contact the nearest HHT authorized dealer or supplier. Additional service fees may apply if you are seeking warranty service from a dealer other than the dealer from whom you originally purchased the Product. •... - Page 35 C. Warranty (continued) • Damages resulting from: (1) failure to install, operate, or maintain the Product in accordance with the installation instructions, operating instructions, and listing agent identification label furnished with the Product; (2) failure to install the Product in accordance with local building codes; (3) shipping or improper handling; (4) improper operation, abuse, misuse, continued operation with damaged, corroded or failed components, accident, or incorrectly performed repairs; (5) inad- equate ventilation, negative pressure or environmental conditions, including, without limitation: hail, snow, ice, fallen branches, flooding, water damage and fading of color; (6) use of fuels other than those specified in the operating instructions; (7) installation or use of components not supplied with the Product or any other components not expressly authorized and approved by HHT; (8) modification of the Product not expressly authorized and approved by HHT in writing; and/or (9) interruptions or fluctuations of electrical power supply to the Product. • Non-HHT venting components, hearth components or other accessories used in conjunction with the Product. • Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is installed. • The Product’s capability to heat the desired space. Information is provided to assist the consumer and the dealer in selecting the proper appliance for the application. Consideration must be given to the Product’s location and configuration and environmental conditions. This warranty is void if: • The Product has been over-fired or operated in atmospheres contaminated by chlorine, fluorine, or other damaging chemicals. Over-firing can be identified by, but not limited to, warped plates or tubes, rust colored cast iron, bubbling, cracking and discoloration of steel or enamel finishes and cracking or spalling of refractory or cementitious materials. • The Product is subjected to prolonged periods of dampness, condensation, ice or snow. • There is any damage to the Product or other components due to water or weather damage which is the result of, but not limited to, improper chimney or venting installation. LIMITATIONS OF LIABILITY: Repair or replacement in accordance with the provisions of this warranty will be the owner’s exclusive remedy for and will constitute HHT’s sole obligation under this warranty, under any other warranty...
-
Page 36: Contact Information
D. Contact Information Please contact your Outdoor Lifestyles dealer with any questions or concerns. For the number of your nearest Outdoor Lifestyles dealer, please visit www.hearthnhome.com. - NOTES - CAUTION DO NOT DISCARD THIS MANUAL Read, understand L e a v e t h i s • Important operating • • and follow these manual with party a n d m a i n t e n a n c e...
