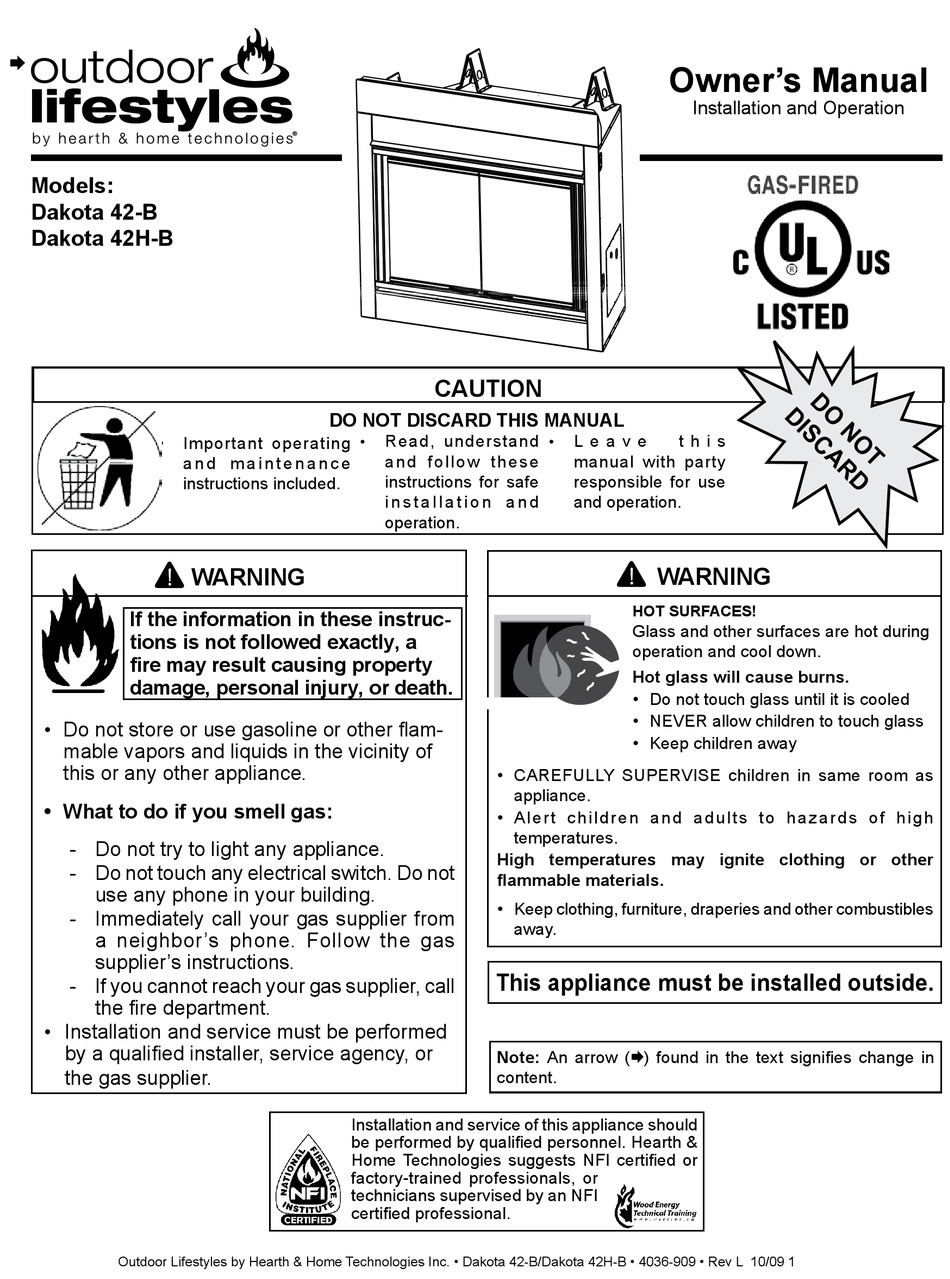

Outdoor Lifestyles Dakota 42-B Owner's Manual

Dakota 42-b; dakota 42h-b
Hide thumbs Also See for Dakota 42-B:

Advertisement

Quick Links

Models:
Dakota 42-B
Dakota 42H-B
• Important operating
a n d m a i n t e n a n c e
instructions included.
WARNING
If the information in these instruc-
tions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas:
- Do not try to light any appliance.
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or
the gas supplier.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 1
CAUTION
DO NOT DISCARD THIS MANUAL
Read, understand
and follow these
instructions for safe
i n s t a l l a t i o n a n d
operation.
• CAREFULLY SUPERVISE children in same room as
• A l e r t c h i l d r e n a n d a d u l t s t o h a z a r d s o f h i g h
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other combustibles
This appliance must be installed outside.
Note: An arrow () found in the text signifies change in
content.
Installation and service of this appliance should
be performed by qualified personnel. Hearth &
Home Technologies suggests NFI certified or
factory-trained professionals, or
technicians supervised by an NFI
certified professional.
Owner's Manual
Installation and Operation
L e a v e
t h i s
manual with party
responsible for use
and operation.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation and cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
appliance.
temperatures.
away.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dakota 42-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Outdoor Lifestyles Dakota 42-B

  • Page 1  Owner’s Manual Installation and Operation Models: Dakota 42-B Dakota 42H-B CAUTION DO NOT DISCARD THIS MANUAL Read, understand L e a v e t h i s • • • Important operating and follow these manual with party a n d m a i n t e n a n c e...
  • Page 2 Read this manual before installing or operating this appliance. Please retain this owner’s manual for future reference. Congratulations Congratulations on selecting a Heat & Glo LifeStyle Collection This owner’s manual should be retained for future reference. gas appliance—an elegant and clean alternative to wood We suggest you keep it with your other important documents burning appliances. The Heat & Glo LifeStyle Collection gas and product manuals. appliance you have selected is designed to provide the utmost The information contained in this owner’s manual, unless in safety, reliability, and efficiency.
  • Page 3: Table Of Contents

    Table of Contents 1 Listing and Code Approvals 9 Appliance Setup A. Appliance Certification ......4 A. Clean the Appliance......
  • Page 4: Listing And Code Approvals

    Listing and Code Approvals A. Appliance Certification C. BTU Specifications Maximum Orifice Size MODELS: Dakota 42-B, Dakota 42H-B Models Input BTUH (DMS) LABORATORY: Underwriters Laboratories, Inc. (UL) Dakota 42-B (NG) 60,000 TYPE: Vented Gas Appliance STANDARD: ANSI Z21.50-2003—CSA2.22-M2003 Dakota 42-B (LP) 53,000 This product is listed to ANSI standards for “Vented Gas Fireplaces” and applicable sections of “Gas Burning Heating D.
  • Page 5: Getting Started

    Getting Started A. Design and Installation Considerations These appliances must be installed outdoors. Moisture Resistance: The Dakota 42-B Series outdoor gas fireplace is designed This outdoor fireplace will shed moderate amounts of water, for outdoor use. It may also be installed in screened porches but is not waterproof. Water and condensing water vapor and lanais that meet these minimum requirements: may enter the chase under certain conditions.
  • Page 6: Tools And Supplies Needed

    B. Tools and Supplies Needed Before beginning the installation be sure that the following tools and building supplies are available. Reciprocating saw Framing material Pliers Hi temp caulking material Hammer Gloves Phillips screwdriver Framing square Flat blade screwdriver Electric drill and bits (1/4 in.) Plumb line Safety glasses Manometer Voltmeter Tape measure Level Non-corrosive leak check solution 1/2 - 3/4 inch length, #6 or #8 Self-drilling screws C. Inspect Appliance and Components WARNING Inspect appliance and components for damage. Damaged parts may impair safe operation.
  • Page 7: Framing And Clearances

    Framing and Clearances Note: WARNING • Illustrations reflect typical installations and are FOR DESIGN PURPOSES ONLY. Fire Risk • Illustrations/diagrams are not drawn to scale. Provide adequate clearance: • Actual installation may vary due to individual design • Around air openings. preference. • To combustibles. • For service access. A. Select Appliance Location Locate appliance away from traffic areas. When selecting a location for your appliance it is important to consider the required clearances to walls (See Figure 3.1).
  • Page 8: Clearances

    B. Clearances Framing Dimensions 24-1/8 43-7/8 43-7/8 1114 1245 1114 Header height. Use only noncombustible material below the top of the top standoffs. Upper front can be covered with 0 in. to level non-combustible 1-1/2 in. (38 mm) of standoffs material or removed and replaced with 84 in.
  • Page 9: Termination Locations

    Termination Locations A. Vent Termination Minimum Clearances (See Note 2) J or K = FIREPLACE OPENING = AIR SUPP LY INLET = AREA WHERE FIREPLACE IS NOT PERMITTED 0 in..clearances above grade, 9 in.
  • Page 10: Appliance Preparation

    Appliance Preparation B. Securing and Leveling Appliance CAUTION WARNING Sharp Edges • Wear protective gloves Fire Risk and safety glasses during • Prevent contact with sagging, loose installation. insulation. • Do NOT install against vapor barriers or exposed insulation. A. Remove Logs and Shipping Cover The diagram shows how to properly position, level, and se- Remove locking screw at the top of the doors (shown in Fig- cure the appliance (see Figure 5.2). Nailing tabs are pro- ure 5.1).
  • Page 11: Gas Information

    Gas Information A. Fuel Conversion C. Gas Connection Before making gas connections ensure appliance being in- stalled is compatible with the available gas type. Note: Have the gas supply line installed in accordance with local building codes, if any. If not, follow ANSI Any natural or propane gas conversions necessary to meet 223.1. Installation should be done by a qualified installer the appliance and locality needs must be made by a quali- approved and/or licensed as required by the locality. (In fied technician using Hearth &...
  • Page 12: High Altitude Installations

    D. High Altitude Installations WARNING U.L. listed gas appliances are tested and approved without requiring changes for elevations from 0 to 2000 ft in the USA Fire Risk and Canada. Explosion Risk When installing this appliance at an elevation above 2000 ft, • Gas build-up during line purge may it may be necessary to decrease the input rating by chang- ignite. ing the existing burner orifice to a smaller size. Input rate • Purge should be performed by qualified should be reduced by 4% for each 1000 ft above a 2000 ft technician.
  • Page 13: Valve Access

    E. Valve Access • Remove the inside valve access panel by lifting it up and out. • The gas valve can be accessed behind the cement refractory panel on the right side of the fireplace. • Lift doors out and set aside. There is a washer under each door. Be careful not to loose those washers. Washer Figure 6.4 Remove Valve Access Panel • Use a phillips screwdriver to remove the exterior valve access panel (remove four screws).
  • Page 14: Electrical Information

    Electrical Information A. Intellifire Ignition System Wiring WARNING • This appliance is equipped with an Intellifire control valve which operates on a 3 volt system. Shock Risk • This appliance is supplied with a battery pack which is • Replace damaged wire with type 105° C located in the ON/OFF switch terminal box. A wiring rated wire.
  • Page 15: Finishing

    Finishing A. Mantel Projections Figure 8.1 shows the minimum vertical dimension of appliance mantels or other combustible projections above the top front edge of the appliance. Roof or Overhang 12 in. (305 mm) max. combustible 84 in. mantel depth (2134 mm) minimum height Then B must be at If A is: least: 6 - 36 mm 152 - 914 in. 36 or more mm 914 or more Figure 8.1 Clearances to Mantels or other Combustibles above Appliance.
  • Page 16: Facing Material

    B. Facing Material WARNING Fire Risk Do NOT obstruct air inlet or outlet grilles. Do NOT modify grilles. • Modifying or covering grilles could cause temperature rise and fire hazard. Finishing materials must not interfere with: • Air flow through grilles or louvers. • Operation of louvers or doors. • Access for service. Upper front can be covered with non-combustible Finish wall material material or removed and may be combustible, replaced with non- top &...
  • Page 17: Appliance Setup

    Appliance Setup A. Clean the Appliance C. Positioning the Logs Clean/vacuum any sawdust that may have accumulated in- • See Section 13.B. for log descriptions and illustrations. • Place right rear log on the grate against the appliance right side the firebox or underneath in the control cavity. side wall. WARNING Shock Risk Fire Risk Use ONLY optional accessories approved for this appliance. • Using non-listed accessories voids warranty.
  • Page 18 • Place front log in front of the main grate with its left end • Place right log against the rightmost front grate bar and resting on left rear log as shown. rest its rear on right rear log, angled towards the corner as shown. Figure 9.8 Right Side Log (SRV740) Figure 9.5 Front Log (SRV727) • Place right front corner log between the right hand side • Place front left log between locating bars so it rests against wall and right hand side grate bar as shown. log left side log and on top of front log. Figure 9.9 Right Front Corner Log (SRV742) Figure 9.6 Front Left Log (SRV722) • Place right center log between the 4th and 5th vertical bars on the log grate, resting the back on right rear log.
  • Page 19: Glass Assembly

    D. Glass Assembly E. Placing Lava Rock • After logs have been placed spread part of the lava rock (included) between the rock pan and ashlip (see WARNING Figure 9.10). Handle glass with care. • Inspect the glass for cracks, chips or Rock Pan scratches.
  • Page 20: Operating Instructions

    Operating Instructions A. Before Lighting Appliance WARNING Before operating this appliance, have a qualified Improper installation, adjustment, alteration, service or technician: maintenance can cause injury or property damage. Refer • Remove all shipping materials from inside and/or to the owner’s information manual provided with this underneath the firebox. appliance. For assistance or additional information consult • Review proper placement of logs, rockwool, lava rock and a qualified installer, service agency or the gas supplier.
  • Page 21: Lighting The Appliance

    B. Lighting the Appliance Intellifire Ignition FOR YOUR SAFETY LIGHTING READ BEFORE LIGHTING INSTRUCTIONS WARNING: If you do not follow these instructions 1. Turn off wall switch. exactly, a fire or explosion may result causing property damage, personal injury or loss of life. 2. This appliance is equipped with an igni- tion device which automatically lights the A. This appliance is equipped with...
  • Page 22: After The Appliance Is Lit

    C. After the Appliance is Lit CAUTION Initial Break-in Procedure When you light the appliance, you may notice that it pro- • Prevent accidental appliance operation when not duces heat which does have an associated odor or smell. If attended. you feel this odor is excessive it may require the initial three • Unplug or remove batteries from remote switch if to four hour continuous burn on high followed by a second absent or if appliance will not be used for an extended burn up to 12 hours to fully drive off any odor from paint and...
  • Page 23: Troubleshooting

    Troubleshooting With proper installation, operation and maintenance your gas appliance will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist a qualified service person in the diagnosis of a problem and the corrective action to be taken. This troubleshooting guide can only be used by a qualified service technician. A. Intellifire Ignition System Symptom Possible Causes Corrective Actions...
  • Page 24: Maintaining And Servicing The Appliance

    Maintaining and Servicing the Appliance Although the frequency of appliance servicing and maintenance will depend on use and the type of installation, a qualified service technician should perform an appliance check-up at the beginning of each heating season. WARNING CAUTION Risk of injury or property damage Handle glass assembly with care. Before servicing: Note: Clean glass after initial 3-4 hours • Turn off gas.
  • Page 25: Valve Service And Replacement

    A. Valve Service and Replacement • Remove the inside valve access panel by lifting it up and out. Tools Required Phillips sc rewdriver /8 in., 13/16 in., 15/16 in. wrenches 7/16 in., 5 Figure 12.4 Remove Valve Access Panel Figure 12.1 Tools Required • Using a phillips screwdriver remove the exterior valve • The valve can be accessed through the valve access panel access panel. on the right side of the fireplace. • Lift doors out and set aside.
  • Page 26: Battery Replacement

    B. Battery Replacement • Using two 3/4 in. wrenches, disconnect the burner supply tube. • Remove switch cover plate from the wall. Figure 12.9 Switch Cover Plate Figure 12.7 Disconnect Burner Supply Tube • Replace two D-cell battieres. • Remove the two screws securing the valve to the valve bracket. Ground Wire Figure 12.10 Batteries Figure 12.8 Remove Valve from Valve Bracket • Replace switch cover plate. • Disconnect the pilot and orifice tubes using a 7/16 in. and a 5/8 in. wrench.
  • Page 27: Maintenance And Service Tasks

    B. Maintenance and Service Tasks: Inspect Maintenance Tasks Doors, surrounds and fronts 1 Inspect for scratches and nicks that can lead to breakage when exposed to heat. 2 Verify no obstructions to airflow through the louvers. 3 Verify proper clearance to combustible household objects is maintained. Glass assembly and glass 1 Inspect glass panels for scratches and nicks that can lead to breakage when exposed to heat. 2 Confirm there is no damage to glass or glass frame. Replace as necessary. 3 Verify that latches engage properly, clip studs are not stripped, and glass attachment components are intact and operating properly. Replace as necessary.
  • Page 28: Reference Materials

    Reference Materials A. Appliance Dimension Diagram Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Sec- tion 3. 31 in. (787 mm) 23-1/4 in. (591 mm) 1 in. 7/8 in. (25 mm) (22 mm) 43-1/2 in. (1105 mm) 37-1/8 in. (943 mm) 23-1/8 in. (587 mm) 12-5/8 in. (321 mm) 42 in.
  • Page 29: Service Parts List

    B. Service Parts List Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 29...
  • Page 30 B. Service Parts List (continued) Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09...
  • Page 31 B. Service Parts List (continued) Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 31...
  • Page 32 This page intentionally left blank. Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09...
  • Page 33 This page intentionally left blank. Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 33...
  • Page 34: Warranty

     C. Warranty Outdoor Lifestyles by Hearth & Home Technologies, Inc.™ Limited Warranty Hearth & Home Technologies, Inc. (“HHT”) extends the following warranty for all Outdoor Lifestyles by HHT™ brand products (“Products”) that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the Product at the site of installation, and to any transferee taking ownership of the Product at the site of installation within one year following the date of original purchase,...
  • Page 35 C. Warranty (continued) • Damages resulting from: (1) failure to install, operate, or maintain the Product in accordance with the installation instructions, operating instructions, and listing agent identification label furnished with the Product; (2) failure to install the Product in accordance with local building codes; (3) shipping or improper handling;...
  • Page 36: Contact Information

    D. Contact Information Please contact your Outdoor Lifestyles dealer with any questions or concerns.  For the number of your nearest Outdoor Lifestyles dealer, please visit www.hearthnhome.com. - NOTES - CAUTION DO NOT DISCARD THIS MANUAL Read, understand L e a v e t h i s • • • Important operating and follow these manual with party a n d m a i n t e n a n c e...
