HIKVISION UD02454B Quick Start Manual

Fingerprint Time Attendance Terminal
Quick Start Guide
UD02454B
©2016 Hangzhou Hikvision Digital Technology Co., Ltd.
It includes instructions on how to use the Product. The software embodied
in the Product is governed by the user license agreement covering that
Product.
About this Manual
This Manual is subject to domestic and international copyright protection.
Hangzhou Hikvision Digital Technology Co., Ltd. ("Hikvision") reserves all
rights to this manual. This manual cannot be reproduced, changed,
translated, or distributed, partially or wholly, by any means, without the
prior written permission of Hikvision.
Trademarks
and other Hikvision marks are the property of Hikvision and
are registered trademarks or the subject of applications for the same by
Hikvision and/or its affiliates. Other trademarks mentioned in this manual
are the properties of their respective owners. No right of license is given to
use such trademarks without express permission.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE
PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE,
IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION
MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A
PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO
EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR
AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL,
INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS,
DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR
LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF
THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT
TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY
LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER
ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;
HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF
REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT
LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO
ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION
SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH
ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.
1

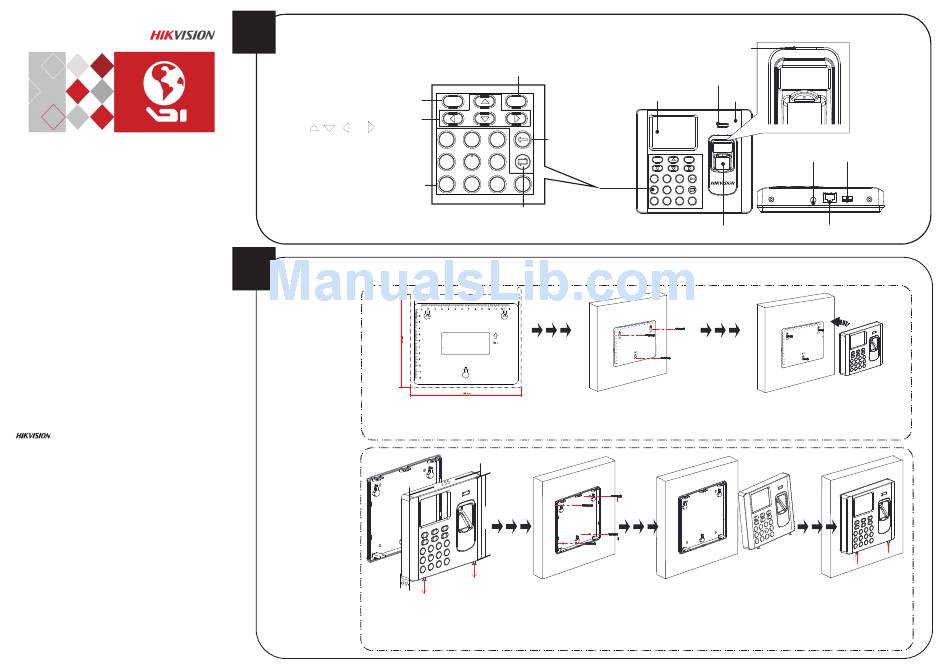

Appearance

Exiting Key:
Press the button to exit the menu.
Direction Keys:
Use , , and to move the
cursor on the screen.
Numeric Keys/Letter Keys:
Press to input numbers or letters.
2

Installation

Wall Mounting
102010858
1. Drill holes on the wall or other places
according to the mounting template. (supplied)
Wall Mounting
with
Mounting Plate
1. Remove the two screws at the
bottom of the front cover and
remove the back cover.
Confirming Key:
Press to confirm operations.
Press and hold the key for 3s
to login the main interface.
ESC OK
Deleting Key:
2 3
1
Delete the contents
ABC DEF
in the textbox.
4 5 6
GHI JKL MNO
Keypad
7 8 9
0
PQRS TUV WXYZ
Editing Key:
Press to enter the editing status.
Shift among Chinese, numbers/lowercases,
numbers/uppercases and symbols.
Hole 1 Hole 1
Mounting Template
Paste the template on the required place,. Drill screw and cable
holes according to the template.
UP
Hole 1: Wall Mounting Screw Hole
Hole 1
165.0 mm
2. Insert the screw sockets of the
setscrews in the drilled holes.
3. Fix and fasten the screws in the sockets
on the wall or other places.
140
2. Align the back cover on the level on the
wall or other places.
3. Drill through the holes at the four corners
of the back cover.
4. Insert the screw sockets of the setscrews
in the drilled holes.
Indicator
Loudspeaker
2.8-inch
Front Cover
LCD Display Screen
12V
Power Interface USB Interface
ESC OK
2 3
1
ABC DEF
4 5 6
GHI JKL MNO
7 8 9
0
PQRS TUV WXYZ
Fingerprint Reading Module
4. Align the three holes on the device
plate with the fixed screws and hang the
device on the wall.
5. Fasten the screws in the
sockets to fix the back cover on
the wall or other places.
Ethernet Port
6. Align the front cover to
the back cover and buckle
them together.
