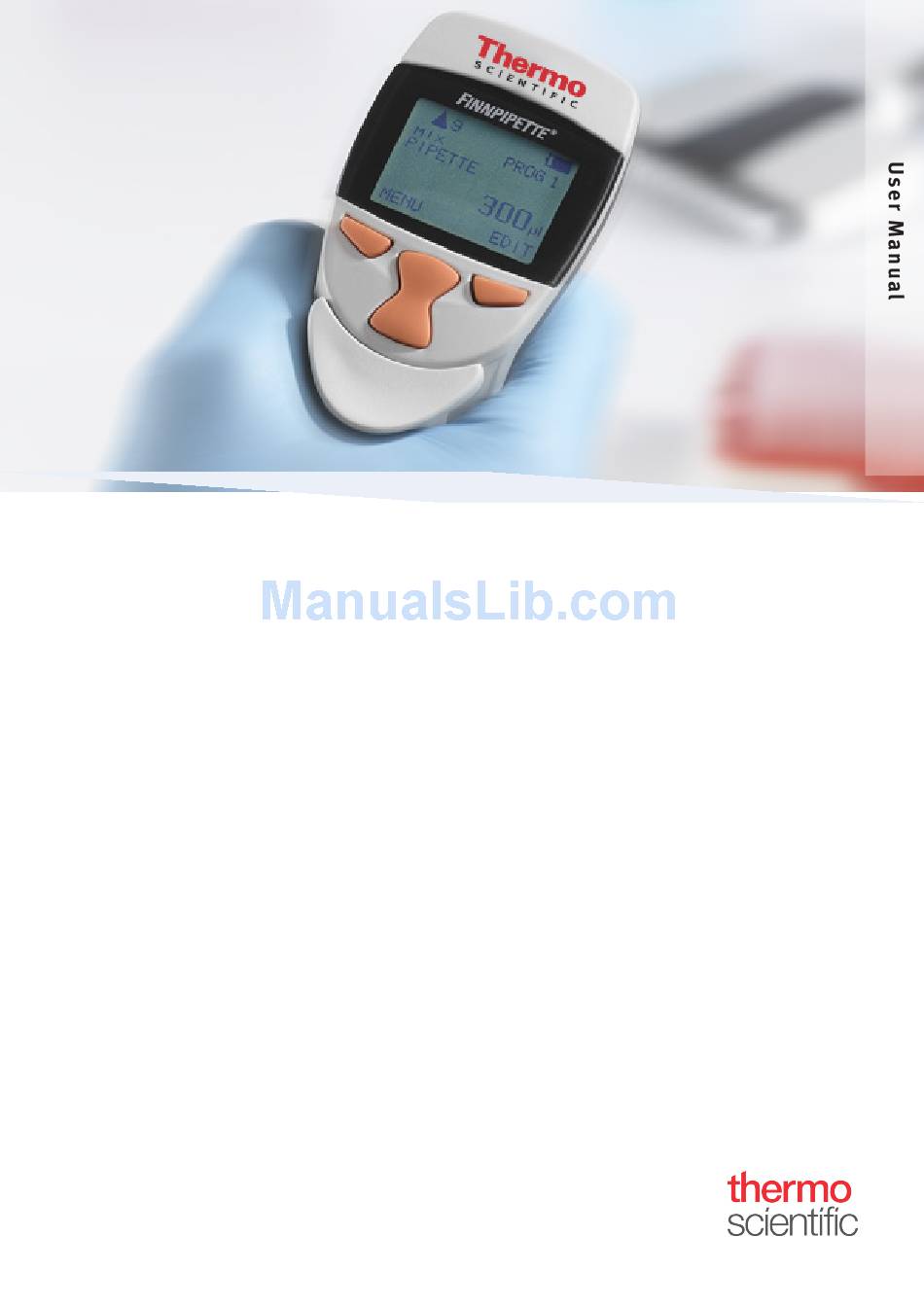

- Page 1 Finnpipette Novus ® Single Channel & Multichannel Instructions for Use Thermo Fisher Scientific Thermo Scientific Novus SCP/MCP User Manual...
-
Page 2: Table Of Contents
CONTENT PRODUCT DESCRIPTION ....... 4 Raw materials ..............5 Description of tips . - Page 3 CALIBRATION ......... 17 Device requirements and test conditions .
-
Page 4: Product Description
PRODUCT DESCRIPTION The different models of Finnpipette Novus pipettes cover a volume range from 1 μl to 10 ml. Order No. Volume Range Finntip 46200000 1 µl µl Flex 10, 10, 20, 50 46200100 1 µl µl Flex 200, 250 Univ., 200 Ext, 300 46200200 5 µl... -
Page 5: Raw Materials
Raw materials The Finnpipette Novus is made of mechanically durable and chemically resistant materials. The tip cone modules can be repeatedly autoclaved at 121°C. Note The 1200 µl module is NOT autoclavable. Description of tips Finntips are recommended for use with the Finnpipette Novus. -
Page 6: Installing The Battery
Only use the supplied power supply unit for charging the pipette. You can recognize the correct power supply by the Thermo Scientific logo and the pipette name on the power supply unit. Do not charge the pipette in a hot location (>40°C) -
Page 7: Charging The Battery
A typical Finnpipette Novus battery lasts for around 500 charging cycles. Please note that an old battery can cause the pipette to malfunction. - Page 8 Safety Precautions Warning Novus pipette contains a Li-Ion battery and a potential malfunction of the battery (short circuit, mechanical damage, overheating etc) may cause explosion. Warning Incorrect handling of the battery or pipette may cause personal injury. Do not drop the battery. Do not expose battery to any kind of mechanical stress or extreme temperatures: above 60 °C (45 °C when charging) or under 0 C°.
-
Page 9: Pipette Operation
PIPETTE OPERATION Speed indicator Battery indicator Speed in / out Volume indicator Function Right Selection Key Left Selection Key Scroll Key Tip Ejector Lever Choosing pipetting To choose the pipetting function press Menu (left selection key). Scroll the function list and select the desired function with OK (right selection key). In functions and most cases the volume can be selected simply by pressing the scroll key up or down. -
Page 10: The Menu Map
The Menu Map PIPETTE RPIPET STEPPER PROG 1 DILUTE PROG 2 PROGRAM OPTIONS PIPETTE PROG 9 MIX+PIPETTE PIPETTE+COUNT RPIPET CALIBRATE STEPPER SERVICE SEQ+STEPPER LANGUAGE DILUTE TWO POINTS NAME MIX+DILUTE ONE POINT POWER MANUAL COUNTER BUZZER SEQ+ASPIRATE VERSION BACKLIGHT Pipette (Forward Choose the PIPETTE function as described above. -
Page 11: Rpipet (Reverse & Repetitive)
Rpipet (Reverse & With RPIPET function both reverse and repetitive techniques are possible. Choose the RPIPET function as described above. Repetitive) Select the pipetting volume simply by pressing the scroll key up or down. Accept the volume with OK. Press SPEED and the speed in starts to blink. Select the speed with scroll key and accept with OK. -
Page 12: Stepper (Multi Dispensing)
Stepper (multi With STEPPER function repeated dispensing of selected volume is possible. dispensing) Choose the STEPPER function as described above. Select the pipetting volume simply by pressing the scroll key up or down. The display shows always the maximum number of steps during volume selection. Accept the volume with OK. -
Page 13: Program
1. Dip the tip under the surface of the fi rst liquid in the reservoir and press the trigger. The fi rst volume is drawn in to the tip. A text AIR appears on display. 2. Withdraw the tip from the liquid touching it against the edge of the reservoir to remove excess liquid. -
Page 14: Seq Stepper
Seq stepper The sequential stepper mode enables serial dispensing of different volumes (in normal stepper mode only fi xed volume). First choose the amount of dispensings (max. 20) with SCROLLKEY and accept with OK. Vol 1 appears to display and highest possible volume is fl... -
Page 15: Manual
Manual With manual mode it is possible to measure volumes. In manual mode only slower speeds are available to ensure a quick stop. First select a limit for total volume, the default is the max. volume. Then select the pipetting speeds and zero volume appears to the display. -
Page 16: Options
Options Calibrate Calibration mode. See chapter calibration. Service The piston can be disconnected and reconnected in Service mode. For details see chapter Maintenance. Language Name This function enables user to set a name to the pipette. The name is always shown on the display when the pipette is in sleep mode. -
Page 17: Calibration
CALIBRATION All Finnpipettes are factory calibrated and adjusted to give the volumes as specifi ed with distilled or deionized water. Normally, the pipettes do not need adjustment, but they are constructed to permit recalibration and adjustment for liquids of different temperature and viscosity. Device An analytical balance must be used. -
Page 18: Adjustment
TABLE1: Maximum permissible errors according ISO 8655 Range Volume Inaccuracy Imprecision µl µl s.d. µl 1-10 µl ±0.120 ±1.2 0.080 ±0.120 ±12 0.080 5-50 µl ±0.50 ±1.0 0.20 ±0.50 ±10 0.20 10-100 µl ±0.80 ±0.8 0.30 ±0.80 ±8.0 0.30 30-300 µl ±4.0 ±1.3 ±4.0... -
Page 19: One Point Calibration
One point calibration The one point calibration can be used if a single specifi c volume must be calibrated. The calibration volume can be selected from the entire volume range. Note that the inaccuracy of other volumes changes also and the performance for other volumes cannot be assured. -
Page 20: Inaccuracy (Systematic Error)
Inaccuracy (systematic error) Inaccuracy is the difference between the dispensed volume and the selected volume of a pipette. A = - V A = inaccuracy = mean volume = nominal volume Inaccuracy can be expressed as a relative value: A% = 100% x A / V Imprecision (random error) Imprecision refers to the repeatability of the pipettings. -
Page 21: Maintenance
MAINTENANCE When the Finnpipette Novus is not in use, make sure it is stored in an upright position. We recommend a Finnpipette stand for this purpose. The part # refer to exploded views beginning at page 31. Daily checking The pipette should be checked at the beginning of each day for dust and dirt on the outside surfaces of the pipette. -
Page 22: Long-Term Service Single Channel Pipettes
5 ml and 10 ml pipettes 1. Pull down the lower tip ejector sleeve. 2. Note that the tip ejector button is in fully up position. 3. Remove the tip cone by pulling it out (snap fi tting). 4. Remove the ejector sleeve by pulling it to two parts (snap fi tting). 5. - Page 23 Reassembly: 1-10 µl pipettes 1. Put the spring hatch 25, the spring 16, spring support 17 and the tube 18 back on the piston. 2. Slide the bigger O-ring 19, smaller O-ring 20 and tube 21 on the piston. 3. Slide the small spring 22, spring support 23 and O-ring 24 on the tube 21. 4.
-
Page 24: Short-Term Service Multichannel Pipettes
30-300 µl pipette: 1. Put the spring hatch 25, the spring 16, spring support 17 and the O-ring 20 back on the piston. 2. Carefully slide the entire assembly into the tip, then push the spring hatch 25 down and turn it 90 degrees. 3. -
Page 25: Long-Term Service Multichannel Pipettes
Long-term service If the pipette is used daily it should be serviced every six months. The servicing procedure starts with the disassembly of the pipette. The servicing procedure Multichannel starts with choosing the Service-mode from the menu (Menu -> Options -> Service). -
Page 26: Service Instructions For Multichannel Pipette Tip Cones
See picture on page 35. Pipette Tip Cones Replacing the There are two versions of battery lids in Finnpipette Novus Pipettes battery - Follow the instructions below according to the battery lid version Opening the Version 1 battery lid - Use a small fl... -
Page 27: Sterilization Single Channel Pipettes
Sterilization Single Channel pipettes The tip cone module can be sterilized by autoclaving it at 121°C (252°F) (2 ata) for 20 minutes. You can use steam sterilization bags if needed. 1. Remove the lower tip ejector sleeve 13 by pulling it out (snap fi tting). 2. -
Page 28: Trouble Shooting
TROUBLE SHOOTING The table below lists possible problems and their solutions. Defect Possible reason Solution Leakage Tip incorrectly attached Attach fi rmly Foreign particles between tip and tip cone Clean tip cones attach new tips Foreign particles between the piston, the Clean and grease O-ring and cylinder. - Page 29 Conversion Table Value of the conversion factor Z (μl/mg), as a function of temperature and pressure, for distilled water. Temperature Air pressure °C 101.3 15.0 1.0017 1.0018 1.0019 1.0019 1.0020 1.0020 1.0020 15.5 1.0018 1.0019 1.0019 1.0020 1.0020 1.0020 1.0021 16.0 1.0019 1.0020...
-
Page 30: Technical Data
Power supply unit Type: Switching power supply Input voltage: 100-240 V ~50/60 Hz, 180 mA Output voltage: 5.0 V 0.5 A Finnpipette Novus Type: Weight with battery Single channel pipette 210 g max. (tip not included): Multichannel pipette 315 g max. Operation:... -
Page 31: Spare Parts Scp
SPARE PARTS Single Channel pipette 100-1000 μl 0,5-5 ml 1-10 ml 1-10ml 2209580 2209680 1062620 1132390 2209600 1033050 1060510 1060530 0,5-5ml 2209570 2209670 1062610 1132390 2209590 1030230 1060790 1060810 100-1000μl 2209560 2209660 1062030 1062600 1132180 1062060 1062360 1132620 1060630 1030020 1061350 Thermo Fisher Scientifi... - Page 32 30-300 μl 10-100 μl 5-50 μl, 5-50 μl Micro 1-10 μl, 1-10 μl Micro Thermo Fisher Scientifi c Thermo Scientifi c Novus SCP/MCP User Manual...
- Page 33 5-50μl 2209530 1-10μl 2209510 30-300μl 2209550 5-50μl Micro 2209520 1-10μl Micro 2209500 2209650 2209700 2209690 1062020 2209630 Micro 2209620 Micro 1062590 1062010 1062000 1132180 1062000 Micro 1062570 1062050 1062570 1062560 Micro 1062250 1062580 Micro 1132180 1132620 1132180 1062050 1060620 1062050 1062040 Micro 1033180 1062040 Micro...
-
Page 34: Spare Parts Mcp
SPARE PARTS Multichannel pipette 8-channel 16-channel 1062470 2209790 1062460 1062470 1062450 1062460 1062380 1062450 1062390 1062380 1132470 1062390 4x0202040 1132470 1132490 4x0202040 2x1062400 1132490 2x1061300 2x1062401 2x11072010 12-channel 10593840 1062470 2x1132130 1062460 1132150 1062440 2x10593500 1062420 2x1030170 1062410 10593870 1132480 2207950 8 pcs 2x0202020 4x0202040... - Page 35 1-10μl 8-ch 2209800 1-10μl 12-ch 2209810 5-50μl 8-ch 2209820 5-50μl 12-ch 2209830 1-10μl 5-50μl Picture / Abbildung / Illustration / Imagen / Bild / Immagine / 図 Thermo Fisher Scientifi c Thermo Scientifi c Novus SCP/MCP User Manual...
- Page 36 30-300μl 8-ch 2209840 30-300μl 12-ch 2209850 5-50μl 16-ch 2209860 Thermo Fisher Scientifi c Thermo Scientifi c Novus SCP/MCP User Manual...
- Page 37 1200μl 8-ch 2209930 1200 μl 8-channel 2209940 1062470 1062460 1062780 1062750 1062740 1132480 4x0202050 1132630 2x1062760 1062720 2209920 Thermo Fisher Scientifi c Thermo Scientifi c Novus SCP/MCP User Manual...
- Page 38 Finntip (sterile and non-sterile) Finntip Filter (sterile) • • • • • • • • FP Novus 1-10μl Micro • • • • • • • • • FP Novus 1-10μl • • FP Novus 5-50μl Micro • • • •...
- Page 39 Tip Ordering Information Code Finntip Volume 9400300 10 Micro 0,2-10 μl 10x96/rack 9400303 10 Micro sterile 0,2-10 μl 10x96/rack 94060100 Flex 10 0,2-10 μl 10x96/rack 94060103 Flex 10 sterile 0,2-10 μl 10x96/rack 9400610 20 Micro 0,2-20 μl 10x384/rack 9400613 20 Micro sterile 0,2-20 μl 10x384/rack 9400370...
- Page 40 Inc. and its subsidiaries. Specifications, terms and pricing are subject to change. Not all products are available in all countries. Please consult your local sales representative for details. Thermo Fisher Scientific Oy Ratastie 2, 01620 Vantaa Finland Thermo Fisher Scientific 1509000-02-EN Thermo Scientific Novus SCP/MCP User Manual...
