Connection/Pinout settings

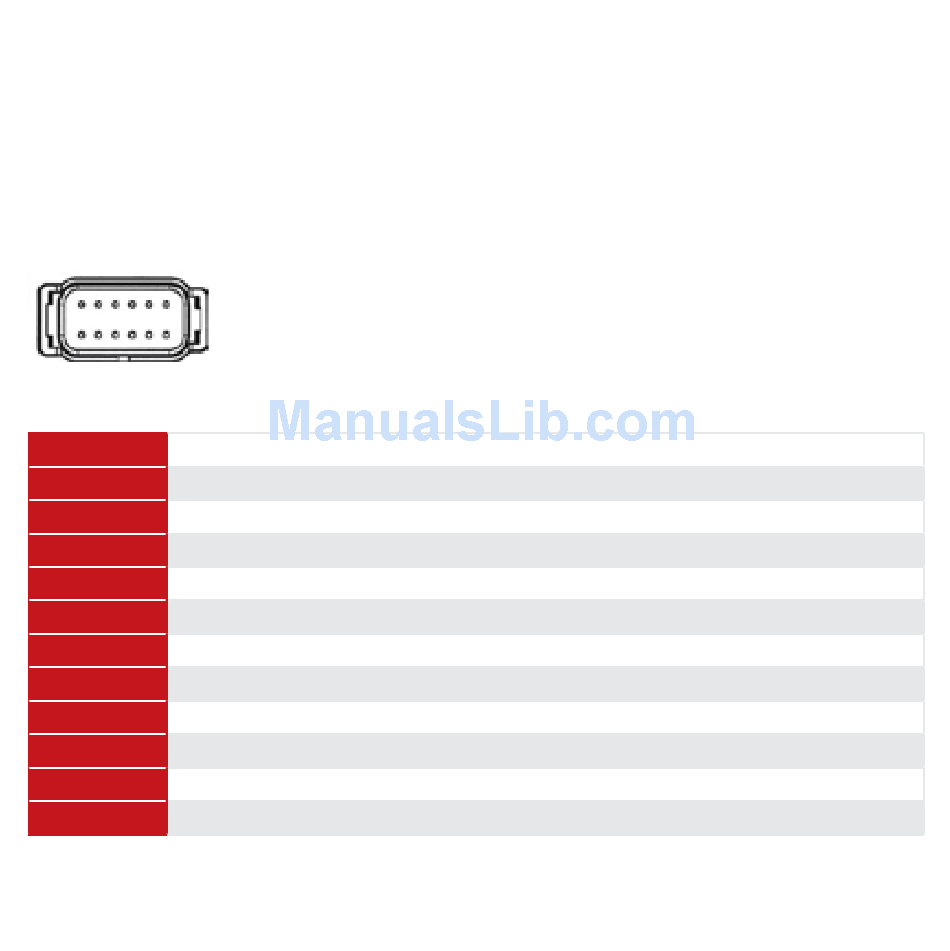

DP250 Series- Deutsch Connector

12
7
6
1

DP250 Series pin assignments

1
Power ground-
2
Power supply+
3
CAN 0+
4
CAN 0–
5
AIN/ CAN Shield
6 See Code B option/TI
7
See Code B option/TI
8
See Code B option/TI
9
See Code B option/TI
10
DIN/AIN/FREQ IN/CURRENT IN, RHEOSTAT
11
DIN/AIN/FREQ IN/CURRENT IN, RHEOSTAT
12
DOUT (0.5A)
EIC-Engine Information Center – DP2xx
11032748_Rev DA_Sep2014
43
