User Manual

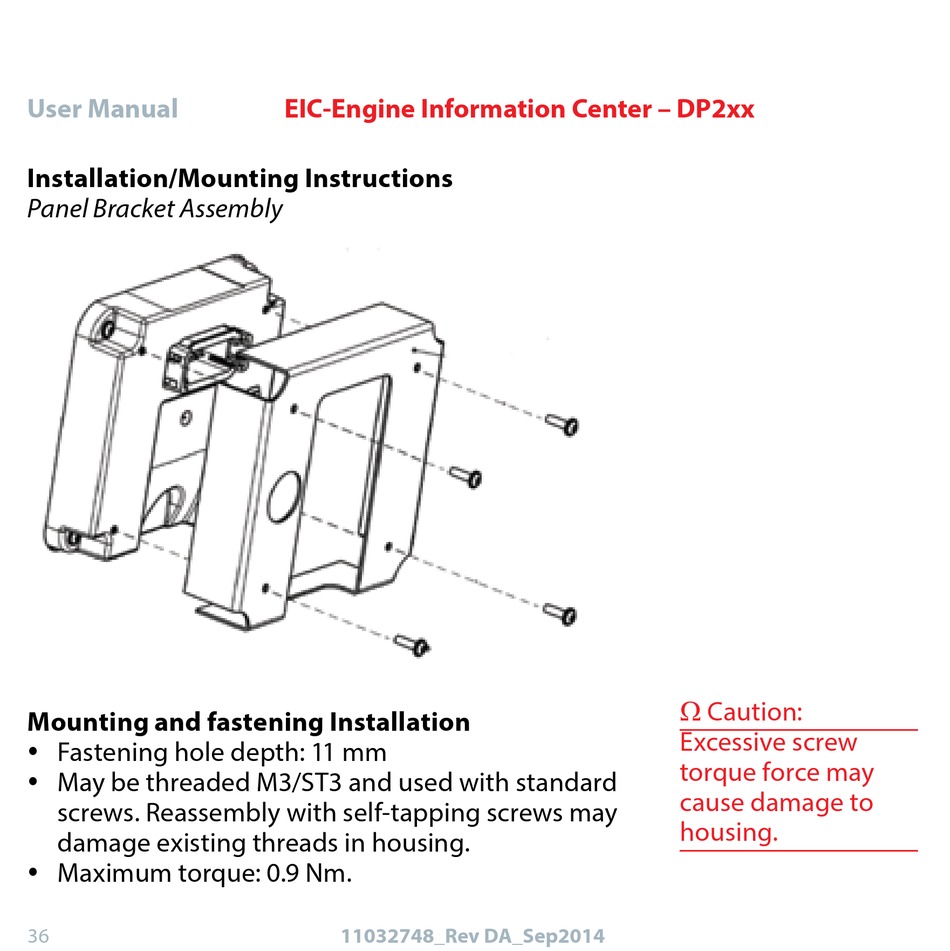

Installation/Mounting Instructions
Panel Bracket Assembly
Mounting and fastening Installation
y Fastening hole depth: 11 mm
y May be threaded M3/ST3 and used with standard
screws. Reassembly with self-tapping screws may
damage existing threads in housing.
y Maximum torque: 0.9 Nm.
36
EIC-Engine Information Center – DP2xx
11032748_Rev DA_Sep2014
W Caution:
Excessive screw
torque force may
cause damage to
housing.
