User Manual
EIC-Engine Information Center – DP2xx
Installation/Mounting Instructions

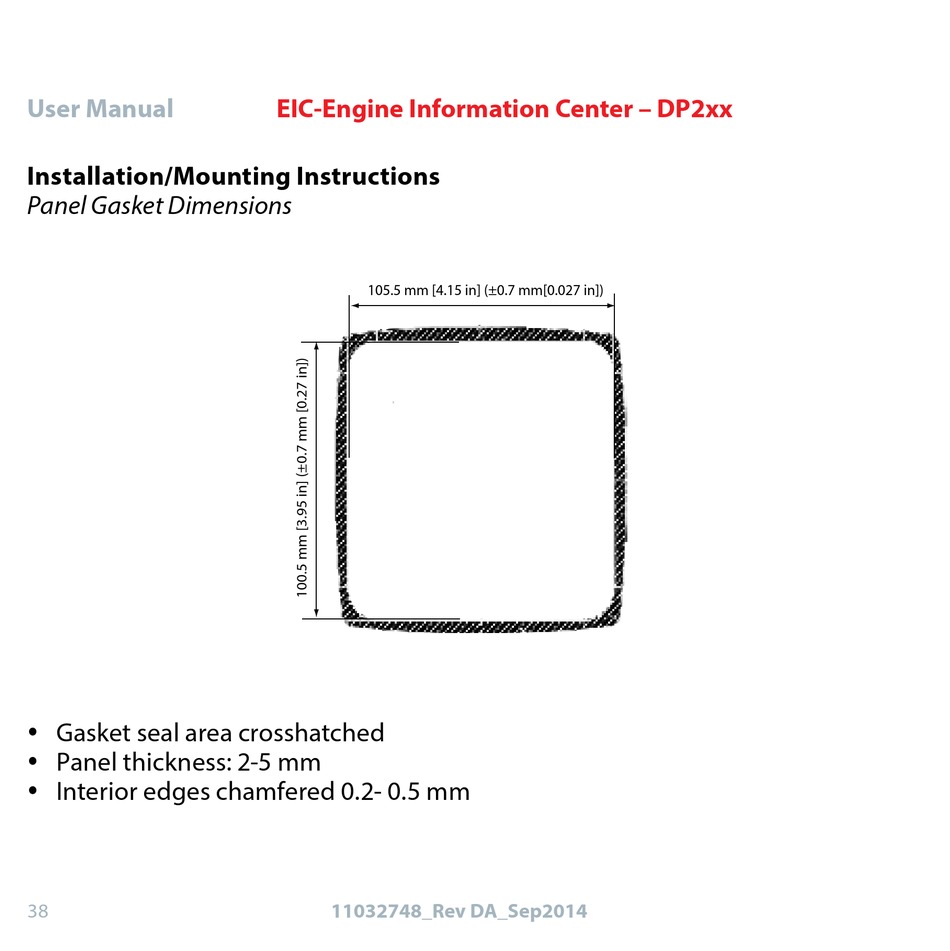

Panel Gasket Dimensions

105.5 mm [4.15 in] (±0.7 mm[0.027 in])
y Gasket seal area crosshatched
y Panel thickness: 2-5 mm
y Interior edges chamfered 0.2- 0.5 mm
11032748_Rev DA_Sep2014
38
