User Manual

Connection/Pinout settings

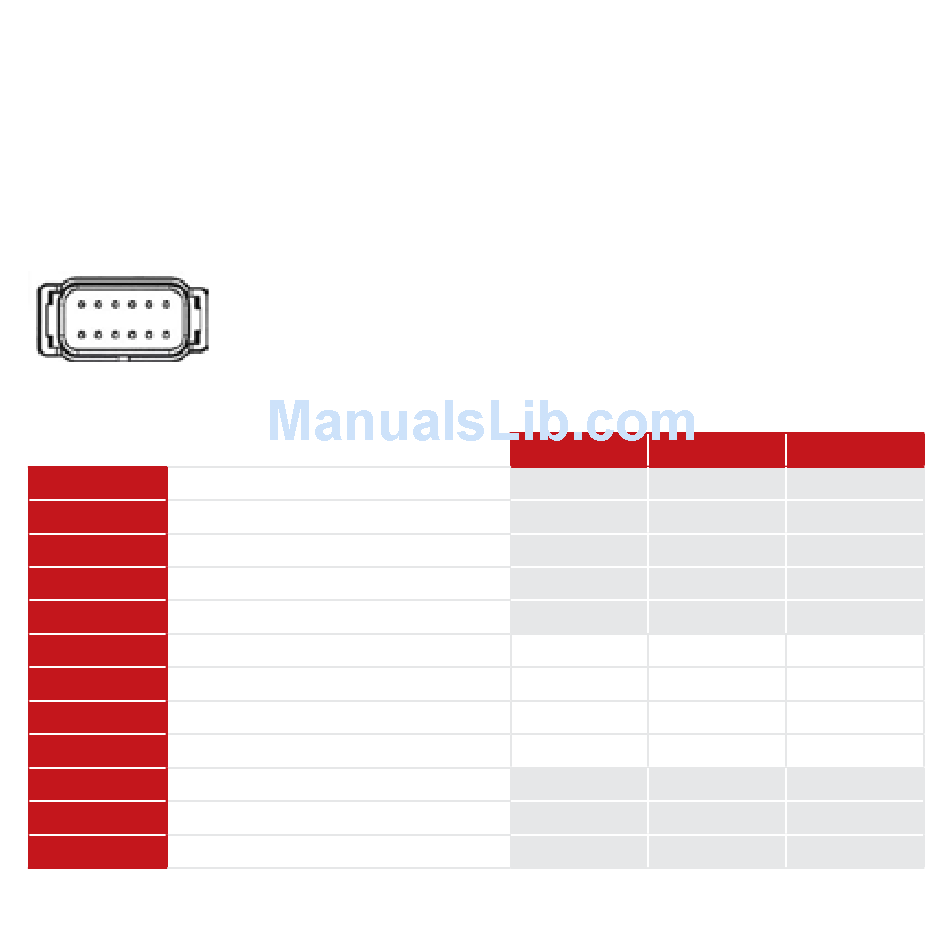

DP200 Series- Deutsch Connector

12
7
6
1

DP200 Series pin assignments

1
Power ground–
2
Power supply+
3
CAN 0+
4
CAN 0–
5 AIN/ CAN Shield
6
See Code B option
7
See Code B option
8
See Code B option
9
See Code B option
10
DIN/AIN/FREQ IN/CURRENT IN
11
DIN/AIN/FREQ IN/CURRENT IN
12
DOUT (0.5A)
42
EIC-Engine Information Center – DP2xx
11032748_Rev DA_Sep2014
Code B 00 Code B 01
N/C DIN/AIN
N/C DIN/AIN
N/C DIN/AIN
N/C DIN/AIN
Code B 04
N/C
N/C
CAN 1+
CAN 1–
