- Page 1 Product Manual ICC1-IRX IR TV Controller, 1-way RF Coax Control November 28, 2017 Contemporary Research ICC1-IRX...
-
Page 2: Table Of Contents
Using Display Express or IC Send Software ........................10 Display Express ................................11 RS-232 Control Protocol ..............................12 Writing Your Own Control Code ............................13 RS-232 Commands ................................14 RS-232 Commands ................................. 15 iC-Net Zones ..................................17 System Map ..................................18 Safety Instructions ................................19 Limited Warranty and Disclaimer ............................19 Contemporary Research ICC1-IRX... -
Page 3: Overview

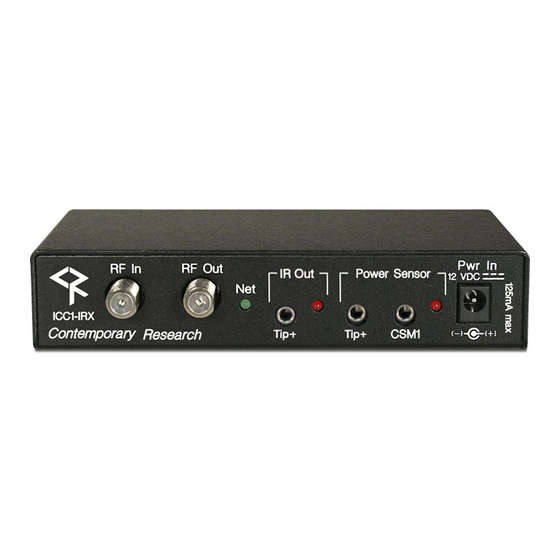

ICC1-IRX has inputs for scanning and power sensors. ICC1-IRX TV Controllers receive the ICC-Net data channel and pass analog and digital channels on to the TV. The commands are generic, as make/model specific IR commands, logic, and sensor responses are stored and sent directly from the TV Controller. -
Page 4: Specifications
-25 to +35 dBmV signal level Includes CC-IRE IR Emitter RF Loop cable, 18” 12 VDC power supply, 500 mA Mounting Velcro for unit and CC-HSD Options Xantech CSM1 Power Current Sensor CC-USB USB Sensing Cable (upcoming) CC-HSD Scan Sensor Contemporary Research ICC1-IRX... -
Page 5: Installation
If needed, fix CATV problems before installing the system. 2. Connect the CATV RF Coax cable into the RF In input on the ICC1-IRX. 3. If the iCC-Net signal is operating, the Net LED will blink once per second. -
Page 6: Installation
CSM1 Power Sensor. Apply DC power to the ICC1-IRX. If the unit’s device number has already been set, note the current settings for S1 switches 1-8 and S2 switches 1-4 – you will reset those switches when you’re done. - Page 7 PC Sensor Setup: LCDs marked CSM1 or CC-HSD do not have discrete IR power commands. The first Code number is set to look for the sensor to know if the TV is on or off. If you want to use unsensed toggling power instead, use the –CSM code. Instead, the ICC1-IRX will wait for an “OFF”...
- Page 8 Turn enclosure so the DIP switches are on the bottom In the next step, you’ll need to set up the device number and operation parameters for the ICC1-IRX. Notice that the functions of the S1 and S2 switches change when you set the unit in Device mode.
- Page 9 1. Connect the CC-IRE IR Emitter plug into the IR Out jack. 2. Mount the emitter cube to the TV case where the TV receives IR commands. 3. Mount the ICC1-IRX to the TV using included Velcro tape. 4. Connect DC power to unit.
-
Page 10: Using Display Express Or Ic Send Software
2 = Virtual HD Major-Minor tuning (tunes to virtual channel ID in display) 3 = Physical HD Major-Minor tuning (physical channel, minor digital) HD Tuning <H1 Style><Major>,<Minor> Example: TH,2,15,1 tunes channel 15-1 IR Code Sets IR control code. T1,46 sets controller to Sharp Contemporary Research ICC1-IRX... -
Page 11: Display Express
You can use the Preset Edit page to send the same command. Select the TV (s) you want to change, check Use Commands and Command String, then enter “T1,code #” (example, T1,46 for Sharp TVs). Click Send to send the command. If you haven’t defined a Display database in DX yet, manually enter the device # as shown. Contemporary Research ICC1-IRX... -
Page 12: Rs-232 Control Protocol
The unit or low order byte of the device (0 for global zone) <ncb> The number of command bytes to follow <cmd1> The first command byte <parameter> Command parameters (not used by all commands) [<cmdN>] Multiple commands can be concatenated, with byte count added to <ncb> Contemporary Research ICC1-IRX... -
Page 13: Writing Your Own Control Code
RTI = Select port, Hex mode, enter A5 01 04 05 54 48 02 02 03 - note that when you go back to normal editing mode, the app inserts an \x before each Hex character Go to www.asciitable.com for a handy Decimal/ASCII/Hex conversion chart. Contemporary Research ICC1-IRX... -
Page 14: Rs-232 Commands
Identical to using DIP switch to set IR control codes. Specify value to match IR code type. Add 64 to the IR code to set the ICC1-IRX to ignore the power sensor – if the type is specified as Sensor – discrete types always ignore the sensor input. -
Page 15: Rs-232 Commands
ICC1-IRX. For example, if the ICC1-IRX power state is off, the display can’t be turned on from the IR remote or TV front panel. The controller will sense the change from the power sensor and turn the set off. - Page 16 A few TVs, such as some Visio models, will respond to every repeat, so that channel 3-1 appears as 3311. Making the pulse shorter, typically N1,2, fixes the problem. Sending an N1,0 command resets the controller to the default pulse length. Contemporary Research ICC1-IRX...
-
Page 17: Ic-Net Zones
The ICC1-IRX and ICC1-232 controllers typical for many SignStream display control systems are designed to follow a Zone address format. You can use the 4 top switches in the second DIP switch (S2) to define the controller’s Zone. You could stop at that point, or use the upper switches (S1) to define the controller’s address within the Zone. -
Page 18: System Map
1025 E254 1026 Coffee Areas 1280 G100 1281 G150 1282 G151 1283 Day Care 1536 TV 1 1537 TV 2 1538 Hallways 1792 1793 1794 1795 1796 Office 2048 Admin 2049 A/V Center 2050 All Zones 4095 Contemporary Research ICC1-IRX... -
Page 19: Safety Instructions
Warranty: Contemporary Research warrants most products to be free from defects in material and workmanship under normal use for a period of three years from the date of purchase. Should such a defect occur, Contemporary Research will repair or replace, at their option, the defective product at no cost for parts or labor. This warranty extends to product purchased directly from CR or an authorized dealer.
