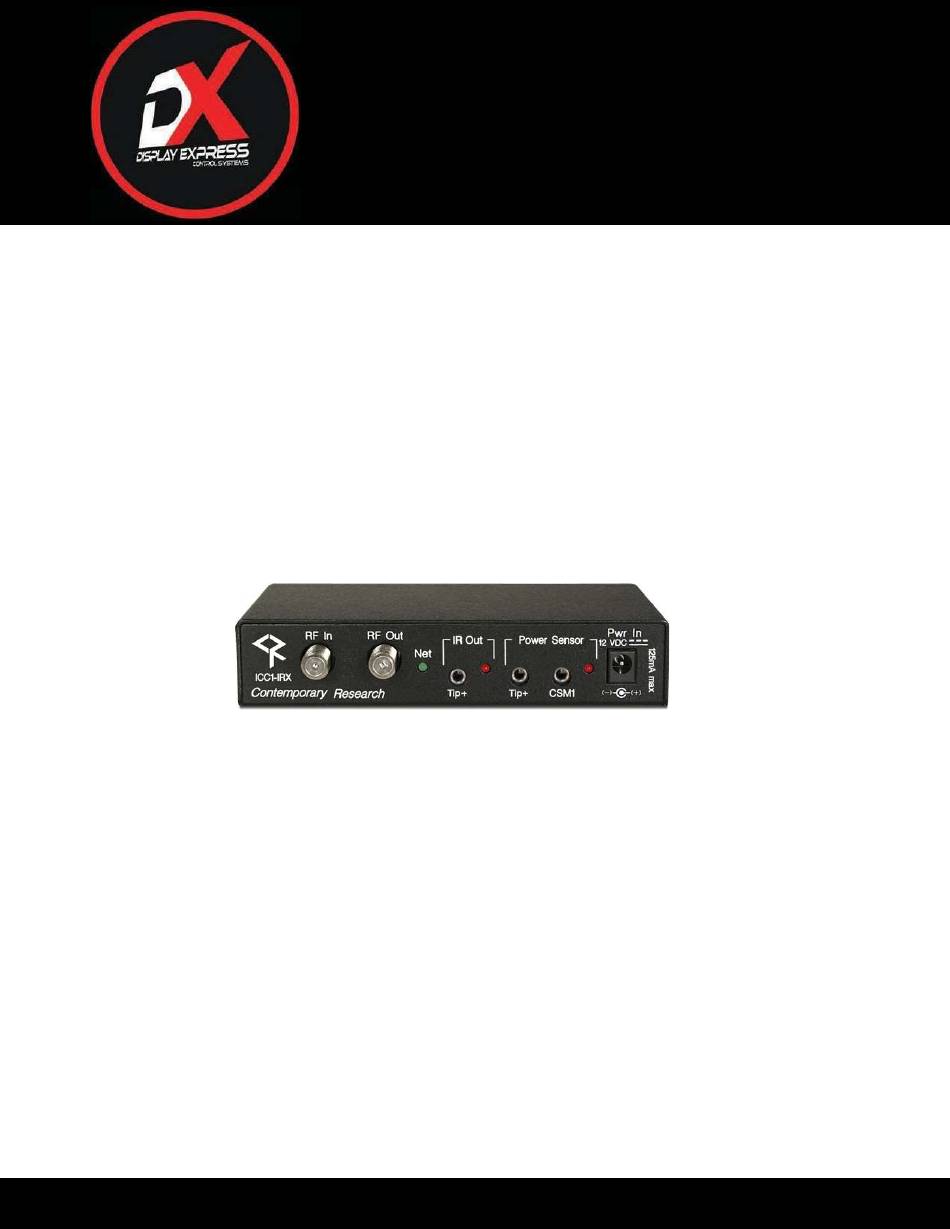

- Page 1 ICC1-IRX Display Controller Product Manual 972-931-2728 | 888-972-2728 | www.contemporaryresearch.com...
-
Page 2: Table Of Contents
Contents 1. Overview ......................................3 2. Installing the ICC1-IRX ..................................4 3. ICC1-IRX Connections ..................................4 4. LCD Display Status Indicators ................................4 5. Configuration ....................................5 6. Setting the Display Device Number ..............................6 8. iCC-Net Display Control Protocol ..............................10 9. -
Page 3: Overview
1. Overview The ICC1-IRX Display Controller delivers economical 1-way infrared display control for power, volume, channel, and input commands, receiving iCC-Net network commands over the same broadband coax that carries the CATV channels. The ICC1-IRX works in conjunction with the ICE-HE-DXL Display Control Center as part of a complete over the coax display control solution. ICC1-IRX Display Controllers receive the iCC-Net data channel and pass through analog and digital television channels to the TV’s internal tuner. -
Page 4: Installing The Icc1-Irx
2. Installing the ICC1-IRX The ICC1-IRX may be attached to the rear of a flat panel display using the included Velcro tape. Connect the included power supply to the Pwr In connector. Connect the cable from the cable drop to the RF In and connect the included coax jumper cable from the RF Out to the TV’s tuner input. -
Page 5: Configuration
5. Configuration The ICC1-IRX will receive all iCC-Net control commands transmitted over the RF network via the ICE-HE-DXL. The ICC1-IRX will accept commands intended for the unit based on its assigned zone and unit number and ignore all others. The commands are converted in the ICC1-IRX to IR commands specific to the make of TV that is set in its configuration. -
Page 6: Setting The Display Device Number
Power Sensor Inputs Some TV types do not have discrete Power On and Power Off IR commands, but have a single command for power that will toggle the TV on and off. The power sensor inputs are available for more reliable operation with TV types that do not have discrete Power On and Power Off commands. - Page 7 7. Setting the TV Type The TV display type may be set three ways. Send IR TV type command from ICE-HE-DXL Display Control Center front panel Setup menu. Send iCC-Net IR TV type command string to the ICE-HE-DXL Display Control Center from CR Toolbox software, Display Express software, or third-party control system processor.
- Page 8 Setting the TV Type with Display Express For systems that utilize Display Express software, the command string to set the TV type may be sent to any ICC1-IRX on the RF network from the Presets/Edit page. Click on Presets and select Edit from the drop-down menu. ...
- Page 9 Codes for TV Display Types Make Code SW1 DIP Power Notes Switches LG/Zenith 1,3,5 Discrete On/Off Supports Input Selection Panasonic 1,3,4,6 Discrete On/Off Supports Input Selection Samsung_1 1,4,5 Discrete On/Off Supports Input Selection Samsung_2 1.3.5.6 Discrete On/Off Alternate Power On, Supports Input Selection Sharp 2,3,4,6 Discrete On/Off...
-
Page 10: Icc-Net Display Control Protocol
8. iCC-Net Display Control Protocol The main components of the iCC-Net command string include the display device number, the command, and command parameters if required. Display Device Numbers A unique display device number from 1 to 4094 is assigned to each TV controller, tuner/controller, QIP-D decoder/controller, QIP-DVX decoder/controller, or tuner to which control commands are addressed. -
Page 11: Table Of Icc-Net Control Commands
String Format Every software application has a different denotation for handling hex, ASCII, and decimal formats. The examples in this manual are in AMX format, which is understood by many in the control industry: Hex values begin with a dollar ($) symbol ... - Page 12 Code Function Operation Channel Selection Set Digital Channel "$A5,<dh>,<dl>,5,'TH',<H1>,<Major>,<Minor>" (9 bytes) Sets digital channel with one-part virtual channel numbers and two-part channel numbers up to 255-255. For tuning analog channels, use Style 2 with a minor channel of 0. <H1> Tuning Style 0=No Change in tuning style 1=Five digit one-part channel (Major=high byte, Minor=low byte) Formula: (high byte x 256) + low byte = channel number...
- Page 13 Code Function Operation Audio Set Volume "$A5,<dh>,<dl>,3,'VL',<Level>" (7 bytes) Sets volume in 64 steps 0 - 63. Volume will ramp to lowest setting, then ramp up to specified level. Captions Captions "$A5,<dh>,<dl>,3,'Q0',<Control>" (7 bytes) Displays closed captions on screen. <Control> 0=Disable 1=Enable Analog Service...
- Page 14 Code Function Operation Display Input Selection Select Input "$A5,<dh>,<dl>,3,'LQ',<Input>" (7 bytes) (Alternate) Selects display input using IR emulation commands. <Input> 200=TV/Tuner 210=RGB 3 201=Video 1 211=HDMI 1 202=Video 2 212=HDMI 2 203=Video 3 213=HDMI 3 204=S-Video 1 214=HDMI 4 205=S-Video 2 215=HDMI 5 206=Component 1 216=HDMI 6...
-
Page 15: Operational Testing
10. Operational Testing AC Power Test Insert DC power supply plug into 12 VDC jack. Plug power adaptor into AC wall outlet. The Net LED should turn on and stay lit. RF Coax and iCC-Net Operation Connect the TV to CATV and observe quality of RF broadcasting. A low-quality CATV system can also affect performance of the iCC- Net commands. -
Page 16: Specifications
11. Specifications Physical Size: 5.5" [140 mm] wide x 1.1" [28 mm] height x 3.4" [86 mm] deep Weight: 8 oz [226 g] Enclosure: All aluminum with durable black powder coat paint Mounting: Mounts rear of TV Rear Panel RF In ‘F’, female, 75 ohm impedance, RF from CATV system, iCC-Net control RF Out: ‘F’, female, 75 ohm impedance, RF to TV, less than 1.5 dB loss... -
Page 17: Safety Instructions And Warranty
12. Safety Instructions and Warranty Read before operating equipment. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. Power Sources - Use supplied or equivalent UL/CSA approved low voltage DC plug-in transformer. ... - Page 18 Product Service: Contemporary Research will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Contemporary Research will test, and then repair the product or products. The parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair.
