Summary of Contents for Contemporary Research ICC2-IRC

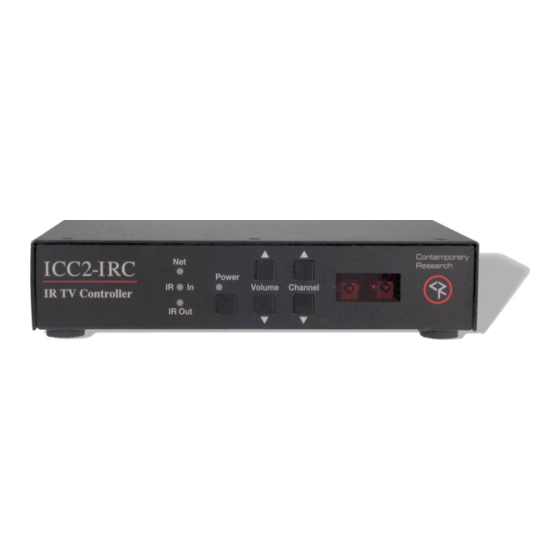

- Page 1 Product Manual ICC2-IRC / ICW-IRC IR TV Controller Ver. 2.5 October 30, 2002 17630 Davenport Rd, Suite113 Dallas, TX 75252 USA Tel: 972.931.2728 888.972.2728 Fax: 972.931-2765 Web: www.crwww.com www.contemporaryresearch.com...
-
Page 2: Table Of Contents
Overview... 3 Specifications... 4 Physical ...4 Front Panel ...4 Rear Panel ...4 Internal Closures ...4 RF Tuner ...5 iCC-Net (ICC2-IRC)...5 iCW-Net (ICW-IRC) ...5 CC-HSD Scan Sensor ...5 Status Indication ...5 Installation ... 6 AC Power...6 RF Coax and iCC-Net Operation ...6 iCW-Net Connection (ICW-IRC) ...6... -
Page 3: Overview
Contemporary Research offers two solutions for intelligent, interactive distributed media management, the ICC2-IRC and ICW-IRC IR TV Controllers. The ICC2-IRC communicates bi-directionally over the same RF coax that carries the broadband TV channels, dramatically simplifying system wiring. The ICW-IRC connects over a twisted-pair network using Category 5 or Category 3 wiring and connectors. -
Page 4: Specifications
2 Solid-State output switch closures, max 50 mA, 24 VDC Closure 1 normally used for optional buzzer Closure 2 normally used for an external camera power relay (by others) Available as factory-installed option only Contemporary Research Corporation IR TV Controller... -
Page 5: Rf Tuner
+20dBmV Video Gain: ±5% maximum, 2% typical Video Phase: ±3 degrees maximum, 2 degrees typical iCC-Net (ICC2-IRC) Operation: Carried over the same RF coax connection as TV channels Data Receive: Mid-band VHF, 74.7MHz, sent from IC Head-End Network Controller -25 to +35 dBmV signal level Data Transmit: Sub-band, 5.6MHz sent to Head-End Network Controller... -
Page 6: Installation
RF Coax and iCC-Net Operation 1. Connect the RF Coax cable into the Antenna/Cable input on the IRC. 2. If the iCC-Net signal is operating, the Net LED will blink once per second (ICC2-IRC only). iCW-Net Connection (ICW-IRC) 1. Plug the iCW-Net RJ-45 connector into the iCW-Net input on the ICW-IRC. -
Page 7: A/V Setup
Philips Smart TV RCA Smart TV Contemporary Research 38 KHz Contemporary Research 57 KHz (default) Tip: Normally, the 57 KHz frequency works the best, avoiding most sources of IR interference. The IRC has 38 KHz and 57 KHz sensors, so it can receive either frequency. -
Page 8: On-Screen Setup Menus
The following commands are used for the ICC2-IRC only 65480 Enable constant Net transmit to the Head-End. This is used for measuring the signal strength of the ICC2-IRC’s RF output. Press Enter to stop transmitting, or the unit will automatically stop after 50 seconds. 65481 Display ICC2 transmitter frequency control voltage –... -
Page 9: Rs-232 Control Protocol
Overview RS-232 control for up to 4000 ICC2-IRC and ICW-IRC TV Controllers is provided through an iC-series Head-End Network Controller. The ICC-HE Head-End manages iC-Net communication over RF Coax to ICC2-IRC TV Controllers as well as ICW-IRC TV Controllers over twisted-pair Cat3/5 wiring. The ICW-HE Head-End operates on the twisted-pair network only. -
Page 10: Rs-232 Commands
“$A5,<dh>,<dl>,3,’QC’, <channel>” (7 bytes) – Tunes to a specific channel Same special-function channels as in the T Channel Select section above Select Q Chan “$A5,<dh>,<dl>,2,’TT’ ” (6 bytes) – Tunes channel if included in Tune Ring Contemporary Research Corporation IR TV Controller... - Page 11 "$A5,0,0,3,'SP'" (6 bytes) Queries the Head-End for the number of devices present on the network and the number of devices expected. Contemporary Research Corporation order End, so the system will know the user is trying to change channels. In response, the system could change channels on a media sources, like a VCR or satellite.
- Page 12 Clears specified number of spaces, starting from cursor to the right. Text Timeout “$A5,<dh>,<dl>,3,’DQ’, <time>” (7 bytes) Sets screen timeout to specified time in seconds (1-254). If time is 0 or 255, any text on the screen will persist indefinitely, or until cleared. Contemporary Research Corporation IR TV Controller...
-
Page 13: Rs-232 Responses
Sent when unit receives a new function command is pressed (1-8) or released (0) from the IR remote. 0 = Release 1 = Play 2 = Stop 3 = Pause 4 = Fast Forward 5 = Rewind 8 = Record Contemporary Research Corporation IR TV Controller... - Page 14 Tip: If the number of present and expected devices match, the green Net LED on the HE will blink once per second. If the two numbers do not agree, the LED blinks twice per second. Contemporary Research Corporation 105 = Media Menu 106 = Cursor Right...
-
Page 15: Ic-Net Zones
You've probably figured out that you never want to assign a virtual device number to an actual device in the system. If you assigned #1536 to a device, all the TV controllers in Zone 6 would respond every time you sent a command to that one device. Contemporary Research Corporation Virtual Device 1023... -
Page 16: System Map
TV controllers so they fall into logical zones. The device mapping could be sorted by type or location; whichever suits the application. iC-Net Zone Zone Floor Floor Floor Floor Coffee Areas Day Care Hallways Office All Zones Contemporary Research Corporation Room Device W151 W152 W153 W154 W251 W252 W253 W254 E151 E152... -
Page 17: Typical Rf And Icc-Net Signal Flow
Typical RF and ICC-Net Signal Flow The diagram below shows the structure of a typical Contemporary Research media retrieval system. One of the key aspects for iCC-Net communication is to provide a forward and return (sub-channel) path for data. Contemporary Research Corporation... -
Page 18: Icw-Net Wiring
Head-End iCW-Net #1 Screw Terminals PWR+ RXD+ RXD- TXD+ TXD- iCW-Net #2, #3 RJ-45 RXD+ RXD- TXD+ TXD- Contemporary Research Corporation Punch-down Blocks RJ-45 Harmonicas Wall Plates BRN/WHT WHT/BRN GRN/WHT WHT/BLU BLU/WHT WHT/GRN ORG/WHT WHT/ORG BRN/WHT WHT/BRN GRN/WHT... -
Page 19: Mounting The Irc
A/V and control cables. If, for some reason, the IRC must be mounted in an equipment rack, you’ll need an optional RK1 Rack Mount Kit. In addition, order the IRC with the external IR In input (a factory-installed option) and an optional IR-RX External IR Receiver. Contemporary Research Corporation IR TV Controller... -
Page 20: Safety Instructions
Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as possible. Contemporary Research Corporation IR TV Controller... -
Page 21: Limited Warranty And Disclaimer
Limited Warranty and Disclaimer Contemporary Research Corporation (CR) warrants this product to be free from defects in material and workmanship under normal use for a period of two years from the date of purchase from CR. Should such a defect occur CR will repair or replace, at their option, the defective product at no cost for parts or labor. - Page 22 Contemporary Research Corporation IR TV Controller...
