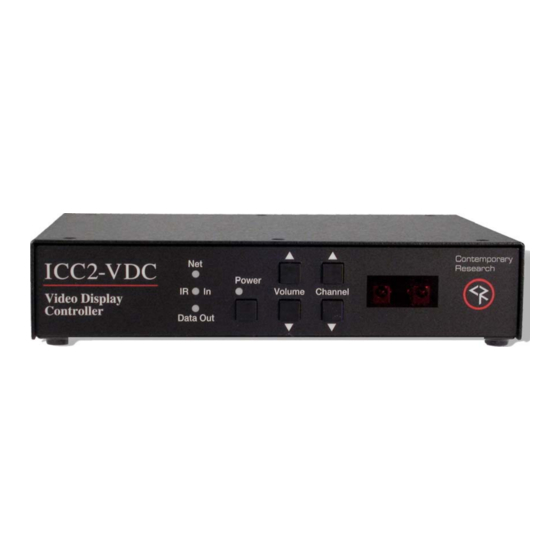

- Page 1 Product Manual ICC2-VDC Video Display Controller Ver. 7.8 February 9, 2009 17630 Davenport Road, Suite 113 • Dallas, TX 75252 Phone:972-931-2728 • Toll-Free: 888-972-2728 • Fax: 972-931-2765 E-Mail: Sales@crwww.com • Website: www.crwww.com...
-
Page 2: Table Of Contents
RS-232 Responses ... 15 Response String Structure... 15 iC-Net SmartZones... 17 System Map ... 18 Typical RF and ICC-Net Signal Flow ... 19 Mounting the VDC... 20 Safety Instructions ... 21 Limited Warranty and Disclaimer ... 22 Contemporary Research ICC2-VDC... -
Page 3: Overview
The ICC2-VDC Video Display Controller provides two-way control of video projectors, plasma monitors, and other displays over the iCC-Net data network. As part of a Contemporary Research media system, the ICC2-VDC can network with up 4,000 controllers, communicating simultaneously over the wired iCW-Net and RF coax iCC- Net pathways. -
Page 4: Specifications
Internal Closures Type: 2 Solid-State output switch closures, max 50 mA, 24 VDC Closure 1 normally used for optional buzzer Closure 2 normally used for an external camera power relay (by others) Available as factory-installed option only Contemporary Research ICC2-VDC... -
Page 5: Rf Tuner
Net LED. Accessories Includes: 12 VDC power supply, 500 mA (Domestic shipments only) Optional Accessories: IC-RC Wireless IR Remote IR-RXC External IR Receiver CC-232 RS-232 Control Cable (specify make and model) RK2 Kit for surface-mounting VDC Contemporary Research ICC2-VDC... -
Page 6: Installation
2. You may use the left or right audio output for a projector with mono audio, both for a TV with stereo audio (ICC2-VDC sound is mono). 3. Set the projector to its Video Input to view on-screen setup commands from the VDC. -
Page 7: External Ir Sensor
The ICC2-VDC includes front-panel 38 KHz and 57 KHz IR sensors. An IR In jack is provided on the back for installation of an optional external IR-RXC IR Receiver. The external sensor, switchable for 38 KHz and 57 KHz sensing, can add IR coverage to the front sensors, or solve installation hurdles. Sometimes it’s hard to mount the VDC near the display and position the front-panel sensors for good IR reception. -
Page 8: On-Screen Menus
Older units can be updated with chip replacement at the factory or in the field. There is a small charge for replacement firmware chips. Contemporary Research 1 = Enable 38KHz IR receive in, 0=disable 2 = Enable 57KHz IR receive in, 0=disable... -
Page 9: Rs-232 Control Codes
Samsung 3 Zenith/LG 2 NEC LCD LG 3 LCD NEC 3 Sharp LCD Westinghouse ProAV Panasonic Digital Projection Akira Sony Contemporary Research Type Models XG-E1200U PG-D100 19.2 Most models LS1, DP5950, DP9250 Most models EDP-2100, not recommended EDP-3100, not recommended... -
Page 10: Rs-232 Control Protocol
Overview RS-232 control for up to 4000 TV and Display Controllers is provided through an iC-series Head-End Network Controller. The ICC-HE Head-End manages iC-Net communication over RF Coax to ICC2-format controllers as well as ICW-format controllers over twisted-pair Cat3/5 wiring. The ICW-HE Head-End operates on the twisted- pair network only. -
Page 11: Rs-232 Commands
"$A5,<dh>,<dl>,2+string length>,'UX'<string>" (variable bytes) Sends an RS-232 string (ASCII, decimal, or hex) directly to the TV display. Ex: "$A5,1,2,6,'UX, 'PON', 13" Sends PON, followed by carriage return (device 258) Contemporary Research 0=alpha labels off 1=alpha labels on 0=num labels off... - Page 12 “$A5,<dh>,<dl>,2,’QP’ ” (6 bytes) – Tunes to previous channel in Tune Ring Select Q Chan “$A5,<dh>,<dl>,2,’QT’,<channel>” (7 bytes) – Tunes channel if included in TR Captions Captions “$A5,<dh>,<dl>,2,’Q0’,<mode>” (7 bytes) - 0=Captioning off (default) 1=Captioning on 2=Captioning active when volume is muted Contemporary Research Sets captioning mode ICC2-VDC...
-
Page 13: Operation
Queries the Head-End for the number of devices present on the network and the number of devices expected. Contemporary Research The ring follows the stored order, channels do not have to be in ascending order In the above mode, the IR Keypad channel up/down response to the Head-End, so the system will know the user is trying to change channels. - Page 14 Clears specified number of spaces, starting from cursor to the right. Text Timeout “$A5,<dh>,<dl>,3,’DQ’, <time>” (7 bytes) Sets screen timeout to specified time in seconds (1-254). If time is 0 or 255, any text on the screen will persist indefinitely, or until cleared. Contemporary Research ICC2-VDC...
-
Page 15: Rs-232 Responses
Sent unit receives a new function command is pressed (1-8) or released (0) from the IR remote. 0 = Release 1 = Play 2 = Stop 3 = Pause 4 = Fast Forward 5 = Rewind 8 = Record Contemporary Research ICC2-VDC... -
Page 16: Device Response
Tip: If the number of present and expected devices match, the green Net LED on the HE will blink once per second. If the two numbers do not agree, the LED blinks twice per second. Contemporary Research 105 = Media Menu 106 = Cursor Right... -
Page 17: Ic-Net Smartzones
You've probably figured out that you never want to assign a virtual device number to an actual device in the system. If you assigned #1536 to a device, all the TV controllers in Zone 6 would respond every time you sent a command to that one device. Contemporary Research Virtual Device 1023... -
Page 18: System Map
The device mapping could be sorted by type or location; whichever suits the application. iC-Net Zone Zone Floor Floor Floor Floor Coffee Areas Day Care Hallways Office All Zones Contemporary Research Room Device W151 W152 W153 W154 W251 W252 W253 W254 E151 E152... -
Page 19: Typical Rf And Icc-Net Signal Flow
Typical RF and ICC-Net Signal Flow The diagram below shows the structure of a typical Contemporary Research media retrieval system. One of the key aspects for iCC-Net communication is to provide a forward and return (sub-channel) path for data. Contemporary Research... -
Page 20: Mounting The Vdc
In all cases, it’s best to mount the VDC near to the display, simplifying wiring for A/V and control cables. If, for some reason, the VDC must be mounted in an equipment rack, you’ll need an optional RK1 Rack Mount Kit. Contemporary Research ICC2-VDC... -
Page 21: Safety Instructions
Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as possible. Contemporary Research ICC2-VDC... -
Page 22: Limited Warranty And Disclaimer
Limited Warranty and Disclaimer Contemporary Research Corporation (CR) warrants this product to be free from defects in material and workmanship under normal use for a period of two years from the date of purchase from CR. Should such a defect occur CR will repair or replace, at their option, the defective product at no cost for parts or labor.
