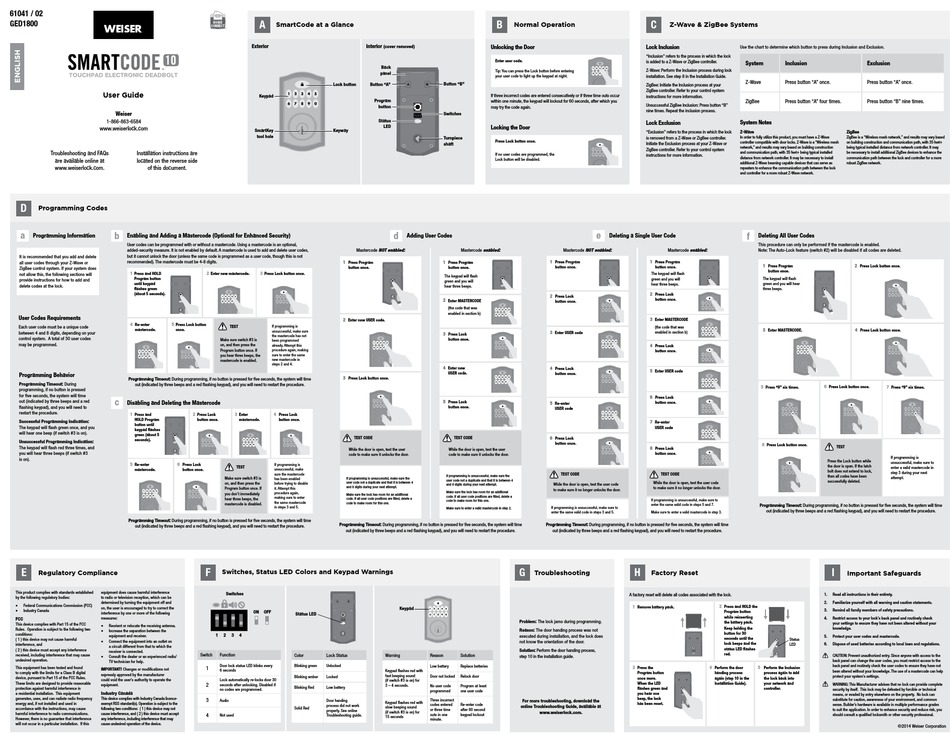

Weiser SMARTCODE 10 Installation Manual page 2

61041 / 02
GED1800
User Guide
Weiser
1-866-863-6584
www.weiserlock.com
Troubleshooting and FAQs Installation instructions are
are available online at located on the reverse side
www.weiserlock.com. of this document.
D
Programming Codes
a
b
Programming Information Enabling and Adding a Mastercode (Optional for Enhanced Security)
User codes can be programmed with or without a mastercode. Using a mastercode is an optional,
added-security measure. It is not enabled by default. A mastercode is used to add and delete user codes,
but it cannot unlock the door (unless the same code is programmed as a user code, though this is not
It is recommended that you add and delete
all user codes through your Z-Wave or recommended). The mastercode must be 4-8 digits.
ZigBee control system. If your system does
1 Press and HOLD
not allow this, the following sections will
Program button
provide instructions for how to add and
until keypad
delete codes at the lock.
ashes green
(about 5 seconds).
User Codes Requirements
4 5
Re-enter Press Lock button
Each user code must be a unique code
mastercode. once.
between 4 and 8 digits, depending on your
control system. A total of 30 user codes
may be programmed.
Programming Behavior
Programming Timeout: During programming, if no button is pressed for five seconds, the system will time
Programming Timeout: During
out (indicated by three beeps and a red flashing keypad), and you will need to restart the procedure.
programming, if no button is pressed
for five seconds, the system will time
c
out (indicated by three beeps and a red
Disabling and Deleting the Mastercode
flashing keypad), and you will need to
restart the procedure.
1 Press and
HOLD Program
Successful Programming Indication:
button until
The keypad will flash green once, and you
keypad ashes
will hear one beep (if switch #3 is on).
green (about 5
seconds).
Unsuccessful Programming Indication:
The keypad will flash red three times, and
you will hear three beeps (if switch #3
is on).
5 6
Re-enter Press Lock
mastercode. button once.
Programming Timeout: During programming, if no button is pressed for five seconds, the system will time
out (indicated by three beeps and a red flashing keypad), and you will need to restart the procedure.
E
Regulatory Compliance
This product complies with standards established equipment does cause harmful interference
by the following regulatory bodies: to radio or television reception, which can be
determined by turning the equipment off and
• Federal Communications Commission (FCC)
on, the user is encouraged to try to correct the
• Industry Canada
interference by one or more of the following
FCC measures:
This device complies with Part 15 of the FCC
• Reorient or relocate the receiving antenna.
Rules. Operation is subject to the following two
• Increase the separation between the
conditions:
equipment and receiver.
( 1 ) this device may not cause harmful
• Connect the equipment into an outlet on
interference, and
a circuit different from that to which the
( 2 ) this device must accept any interference
receiver is connected.
received, including interference that may cause
• Consult the dealer or an experienced radio/
undesired operation.
TV technician for help.
This equipment has been tested and found
IMPORTANT! Changes or modifications not
to comply with the limits for a Class B digital
expressly approved by the manufacturer
device, pursuant to Part 15 of the FCC Rules.
could void the user's authority to operate the
These limits are designed to provide reasonable
equipment.
protection against harmful interference in
Industry Canada
a residential installation. This equipment
generates, uses, and can radiate radio frequency This device complies with Industry Canada licence-
energy and, if not installed and used in exempt RSS standard(s). Operation is subject to the
accordance with the instructions, may cause following two conditions: ( 1 ) this device may not
harmful interference to radio communications. cause interference, and ( 2 ) this device must accept
However, there is no guarantee that interference any interference, including interference that may
will not occur in a particular installation. If this cause undesired operation of the device.
A A
SmartCode at a Glance
Exterior Interior
Lock button Button "A"
Keypad
Program
SmartKey Keyway
tool hole
Mastercode NOT enabled:
1 Press Program
button once.
2 Enter new mastercode. 3 Press Lock button once.
2
Enter new USER code.
TEST If programming is
unsuccessful, make sure
the mastercode has not
Make sure switch #3 is
been programmed
on, and then press the
already. Attempt this
Program button once. If procedure again, making
you hear three beeps, the sure to enter the same
mastercode is enabled. new mastercode in
steps 2 and 4.
3
Press Lock button once.
2 Press Lock 3 Enter 4 Press Lock
button once. mastercode. button once.
TEST CODE
While the door is open, test the user
code to make sure it unlocks the door.
If programming is
TEST
unsuccessful, make
sure the mastercode
Make sure switch #3 is has been enabled If programming is unsuccessful, make sure the
user code not a duplicate and that it is between 4
on, and then press the before trying to disable
and 8 digits during your next attempt.
Program button once. If it. Attempt this
procedure again,
you don't immediately
Make sure the lock has room for an additional
making sure to enter
hear three beeps, the code. If all user code positions are lled, delete a
the same mastercode
mastercode is disabled. code to make room for this one.
in steps 3 and 5.
Programming Timeout: During programming, if no button is pressed for five seconds, the system will time
out (indicated by three beeps and a red flashing keypad), and you will need to restart the procedure.
F
Switches, Status LED Colors and Keypad Warnings
Switches
ON OFF
Status LED
1 2 3 4
Switch Function Color Lock Status
Door lock status LED blinks every Blinking green Unlocked
1
6 seconds
Blinking amber Locked
Lock automatically re-locks door 30
2
seconds after unlocking. Disabled if
Blinking Red Low battery
no codes are programmed.
3
Audio Door handing
process did not work
Solid Red
properly. See online
4
Not used Troubleshooting guide.
B
Normal Operation Normal Operation
(cover removed) Unlocking the Door
Enter user code.
Back
Tip: You can press the Lock button before entering
panel
your user code to light up the keypad at night.
Button "B"
If three incorrect codes are entered consecutively or if three time outs occur
within one minute, the keypad will lockout for 60 seconds, after which you
button
may try the code again.
Switches
Status
LED Locking the Door
Turnpiece
Press Lock button once.
shaft
If no user codes are programmed, the
Lock button will be disabled.
d
Adding User Codes
Mastercode enabled:
1 Press Program 1 Press Program
button once. button once.
The keypad will ash
green and you will
hear three beeps.
2
Press Lock
2 Enter MASTERCODE
button once.
(the code that was
enabled in section b)
3
Enter USER code
3 Press Lock
button once.
4
Enter new 4 Press Lock
USER code. button once.
5 Press Lock
5
Re-enter
button once.
USER code
TEST CODE 6 Press Lock
button once.
While the door is open, test the user
code to make sure it unlocks the door.
If programming is unsuccessful, make sure the
user code not a duplicate and that it is between 4
and 8 digits during your next attempt. While the door is open, test the user code
to make sure it no longer unlocks the door.
Make sure the lock has room for an additional
code. If all user code positions are lled, delete a
code to make room for this one.
If programming is unsuccessful, make sure to
Make sure to enter a valid mastercode in step 2.
enter the same valid code in steps 3 and 5.
Programming Timeout: During programming, if no button is pressed for five seconds, the system will time
out (indicated by three beeps and a red flashing keypad), and you will need to restart the procedure.
G
Troubleshooting
Keypad
Problem: The lock jams during programming.
Reason: The door handing process was not
executed during installation, and the lock does
not know the orientation of the door.
Solution: Perform the door handing process,
Warning Reason Solution
step 10 in the installation guide.
Low battery Replace batteries
Keypad flashes red with
fast beeping sound Door not locked Relock door
(if switch #3 is on) for
3 – 4 seconds.
No user code Program at least
programmed one user code
Three incorrect For more troubleshooting, download the
Keypad flashes red with
codes entered Re-enter code
online Troubleshooting Guide, available at
slow beeping sound
or three time after 60 second
www.weiserlock.com.
(if switch #3 is on) for
outs in one keypad lockout
15 seconds
minute.
C
Switches, Status LED Colors and Keypad Warnings Z-Wave & ZigBee Systems
Lock Inclusion Use the chart to determine which button to press during Inclusion and Exclusion.
"Inclusion" refers to the process in which the lock
is added to a Z-Wave or ZigBee controller.
Z-Wave: Perform the Inclusion process during lock
installation. See step 8 in the Installation Guide.
ZigBee: Initiate the Inclusion process at your
ZigBee controller. Refer to your control system
instructions for more information.
Unsuccessful ZigBee Inclusion: Press button "B"
nine times. Repeat the inclusion process.
System Notes
Lock Exclusion
"Exclusion" refers to the process in which the lock Z-Wave
is removed from a Z-Wave or ZigBee controller. In order to fully utilize this product, you must have a Z-Wave
controller compatible with door locks. Z-Wave is a "Wireless mesh
Initiate the Exclusion process at your Z-Wave or
network," and results may vary based on building construction
ZigBee controller. Refer to your control system
and communication path, with 35 feet+ being typical installed
instructions for more information.
distance from network controller. It may be necessary to install
additional Z-Wave beaming capable devices that can serve as
repeaters to enhance the communication path between the lock
and controller for a more robust Z-Wave network.
e
Deleting a Single User Code
Mastercode NOT enabled: Mastercode enabled:
1 Press Program
button once.
The keypad will ash
green and you will
hear three beeps.
2
Press Lock
button once.
3 Enter MASTERCODE
(the code that was
enabled in section b)
4
Press Lock
button once.
5
Enter USER code
6
Press Lock
button once.
7 Re-enter
USER code
8
Press Lock
button once.
TEST CODE TEST CODE
While the door is open, test the user code
to make sure it no longer unlocks the door.
If programming is unsuccessful, make sure to
enter the same valid code in steps 5 and 7.
Make sure to enter a valid mastercode in step 3.
H
Factory Reset
A factory reset will delete all codes associated with the lock.
1 2 Press and HOLD the
Remove battery pack.
Program button
while reinserting
the battery pack.
Keep holding the
button for 30
seconds until the
lock beeps and the
status LED ashes
red.
3 4
Press the Perform the door
Program button handing process
once more. again (step 10 in the
When the LED Installation Guide).
ashes green and
you hear one
beep, the lock
has been reset.
System Inclusion Exclusion
Z-Wave Press button "A" once. Press button "A" once.
ZigBee Press button "A" four times. Press button "B" nine times.
ZigBee
ZigBee is a "Wireless mesh network," and results may vary based
on building construction and communication path, with 35 feet+
being typical installed distance from network controller. It may
be necessary to install additional ZigBee devices to enhance the
communication path between the lock and controller for a more
robust ZigBee network.
f
Deleting All User Codes
This procedure can only be performed if the mastercode is enabled.
Note: The Auto-Lock feature (switch #2) will be disabled if all codes are deleted.
1 2
Press Program Press Lock button once.
button once.
The keypad will ash
green and you will hear
three beeps.
3 Enter MASTERCODE. 4 Press Lock button once.
5 6 Press Lock button once. 7
Press "9" six times. Press "9" six times.
8
Press Lock button once.
TEST
If programming is
Press the Lock button while
unsuccessful, make sure to
the door is open. If the latch
enter a valid mastercode in
bolt does not extend to lock,
step 3 during your next
then all codes have been
attempt.
successfully deleted.
Programming Timeout: During programming, if no button is pressed for five seconds, the system will time
out (indicated by three beeps and a red flashing keypad), and you will need to restart the procedure.
I
Important Safeguards
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and caution statements.
3. Remind all family members of safety precautions.
4. Restrict access to your lock's back panel and routinely check
your settings to ensure they have not been altered without your
knowledge.
5. Protect your user codes and mastercode.
Status
6. Dispose of used batteries according to local laws and regulations.
LED
CAUTION: Prevent unauthorized entry. Since anyone with access to the
back panel can change the user codes, you must restrict access to the
back panel and routinely check the user codes to ensure they have not
5
Perform the Inclusion
been altered without your knowledge. The use of a mastercode can help
process again to add
protect your system's settings.
the lock back into
your network and
WARNING: This Manufacturer advises that no lock can provide complete
controller.
security by itself. This lock may be defeated by forcible or technical
means, or evaded by entry elsewhere on the property. No lock can
substitute for caution, awareness of your environment, and common
sense. Builder's hardware is available in multiple performance grades
to suit the application. In order to enhance security and reduce risk, you
should consult a qualified locksmith or other security professional.
©2014 Weiser Corporation
