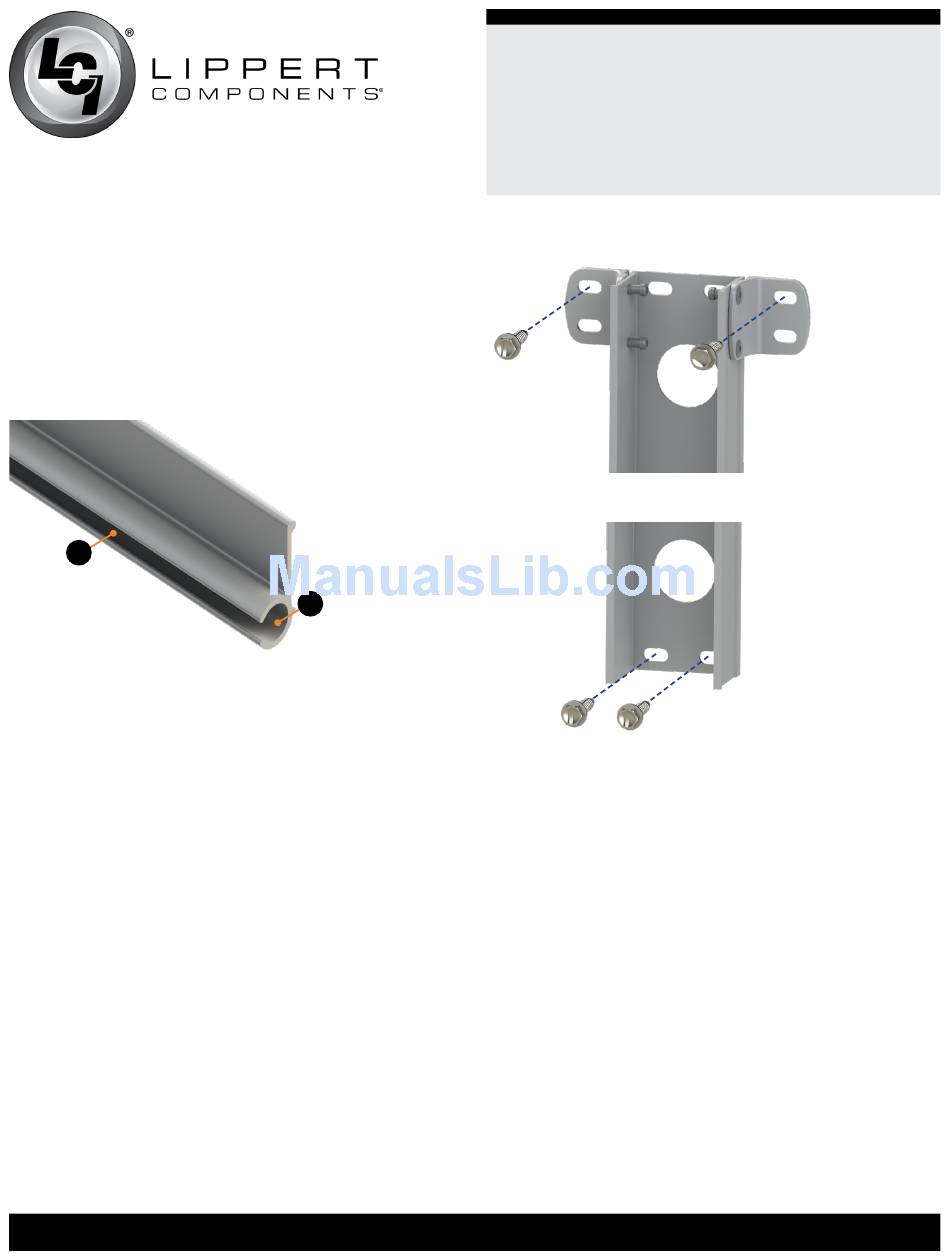

4. Use a screwdriver to spread open either end of the
awning rail channel on the installation side (Fig.4A).
5. To protect the fabric from damage during installation, file
any sharp edges or burrs from the awning rail channel.
6. Use silicone lubricant and spray the inside of the awning
rail channel (Fig.4B).
B
Fig.4
7. Remove the tape from the fabric. Unroll a small portion
of fabric.
NOTE: The next steps will require three people: One to
feed the polycord into the awning rail channel; two to walk
the support arm assemblies along the awning rail while the
fabric slides into position.
8. Slide the polycord into the awning rail channel and walk
the support arm assemblies and fabric down the awning
rail channel until the support arm assemblies are in line
with the previously-made centerline marks.
9. Lift the support arm assembly up and secure by setting
the awning assembly to the desired height and attaching it
to the side of the unit with two #14 x 1
the top (Fig.5) and two #14 x 1
bottom (Fig.6).
lci1.com
A
1/4
" screws at
1/4
" screws at the
574-537-8900
Solera
®
Installation and Owner's Manual
(For Aftermarket Application)
Fig.5
Fig.6
NOTE: Best practice for setting the awning height is to
push the top of the support arm assemblies up to be flush
with the bottom of the awning rail. The awning height
can be adjusted lower if desired, but make sure the
distance from the awning rail to the top of the support arm
assemblies is consistent at both ends of the awning.
NOTE: Make sure the awning assembly is square on the
unit prior to mounting the bottom two screws.
NOTE: Four rivets with
of the two middle and two lower screws on laminated walls.
5
CCD-0001261
Power Awning
3/16
" grip range can be used in place
