Awning Installation

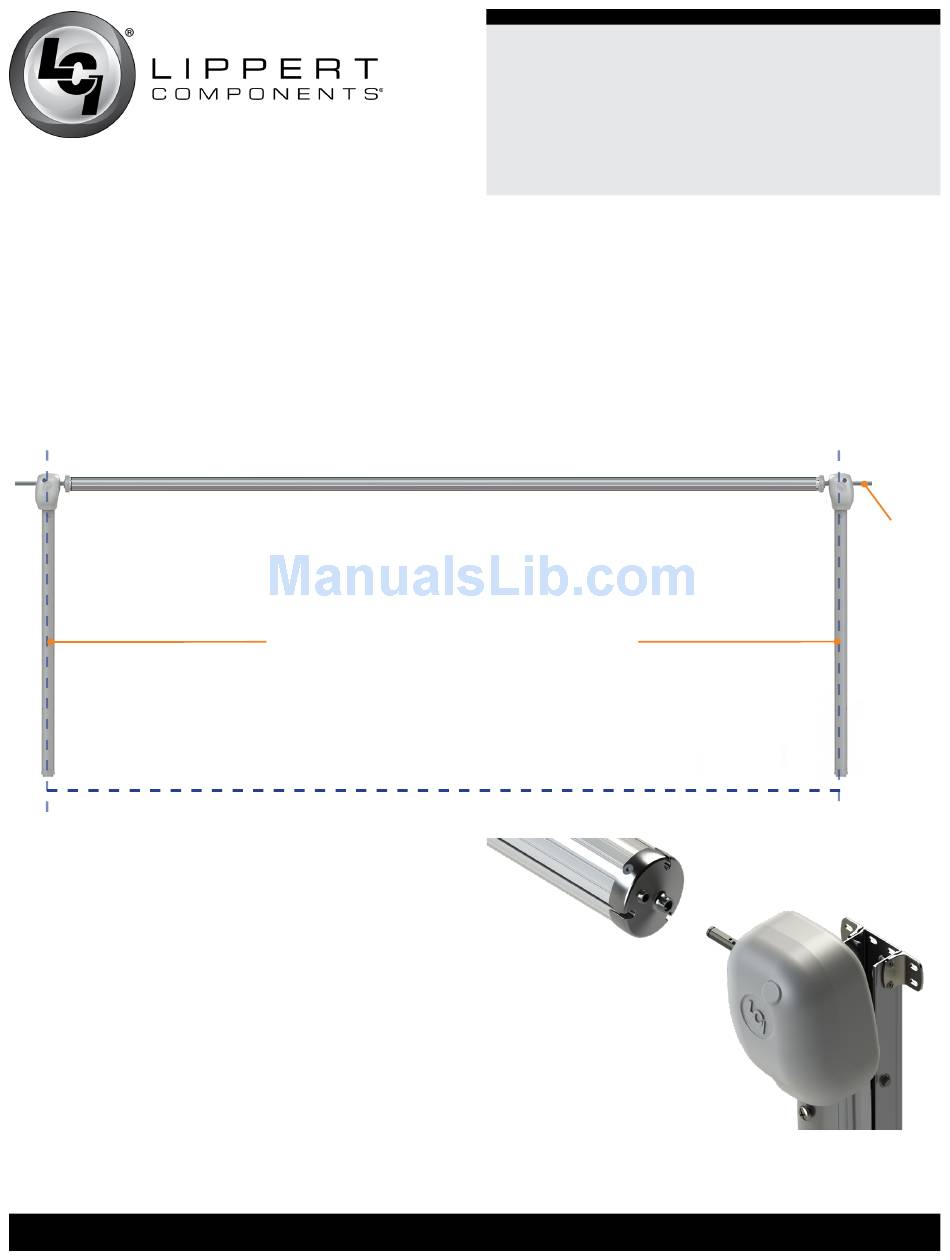

1. On the awning rail, mark the position of the centerlines
of the support arm assemblies. Make sure the support arm
assemblies will not interfere with any lights, vents or other
obstructions.
2. Using a non-permanent method of marking, mark a
perpendicular line from the awning rail down to the floor
line. This is the centerline of the support arm assembly
(Fig.2).
Fig.2
lci1.com
awning width is from centerline to
centerline of support arm assemblies
574-537-8900
Solera
Installation and Owner's Manual
(For Aftermarket Application)
3. Insert the drive head assembly shaft into the end cap
(Fig.3). Align the holes and secure with waxed screw.
Repeat process for idler head assembly at opposite end.
NOTE: Keep the head of the wax screw
to avoid compromising the structural integrity of the wax
screw.
floor line
Fig.3
4
Power Awning
®
CCD-0001261
1/8
" from fastened
awning rail
Rev: 03.16.18
