DEMO MANUAL DC951A

Quick start proceDure

Connect DC951A to a DC590 USB Serial Controller using
the supplied 14-conductor ribbon cable. Connect DC590
to host PC with a standard USB A/B cable. Run the evalu-
ation software supplied with DC590 or downloaded from
http://www.linear.com/software. The correct program will
be loaded automatically. Click the COLLECT button to start

HarDware setup

ConnECtion to DC590 SErial ControllEr
J1 is the power and digital interface connector. Connect
to DC590 serial controller with supplied 14-conductor
ribbon cable.
JuMPErS
JP1: Select the source for REF+, either an LT1236A-5, an
LT1790-5, or externally supplied if JP1 is removed.
2
reading the input voltage. Details on software features are
documented in the control panel's help menu.
Tools are available for logging data, changing reference
voltage, changing the number of points in the strip chart
and histogram, and changing the number of points aver-
aged for the DVM display.

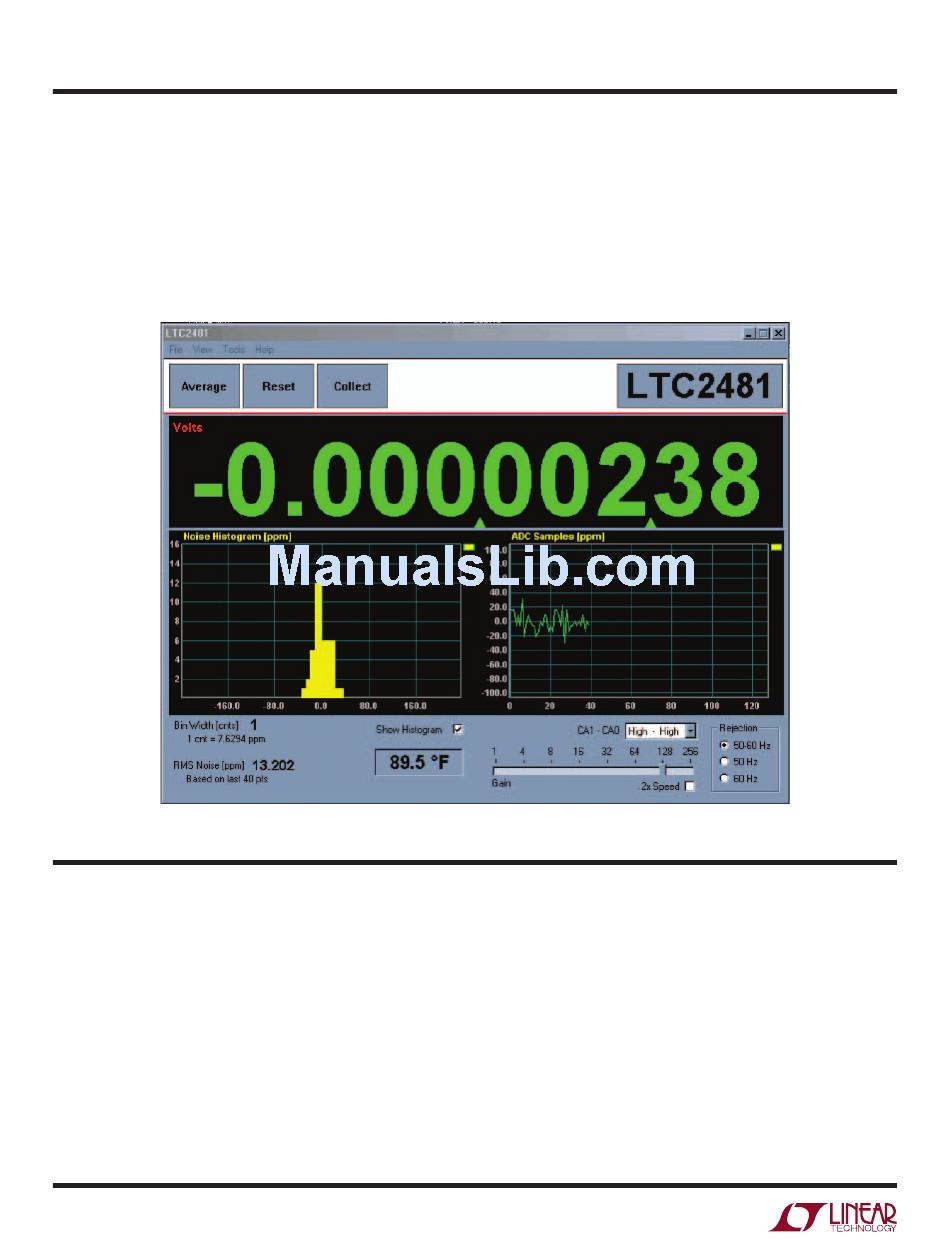

Figure 2. Software Screenshot
JP4: Select the source for REF–, either Ground (GND) or
externally supplied.
JP2, JP3: I
to CA0/F0 and CA1, respectively. Refer to the LTC2481
data sheet for address mapping.
analog ConnECtionS
Analog signal connections are made via the row of turret
posts along the edge of the board. Also, when connecting
2
C Address Selection. These pins are connected
dc951af
