PNEUMATIC INFORMATION

AIR SUPPLY INSTALLATION
If compressor has a good dryer unit, use black pickled pipe. When a dryer unit is not installed,
use galvanized or copper pipe. To perform reliably, a pneumatic tool requires a continuous
source of clean, water-free air at adequate pressure.
Never operate this tool using a bottled air or gas source.
Bottled air/gas sources do not provide consistent operating pressure

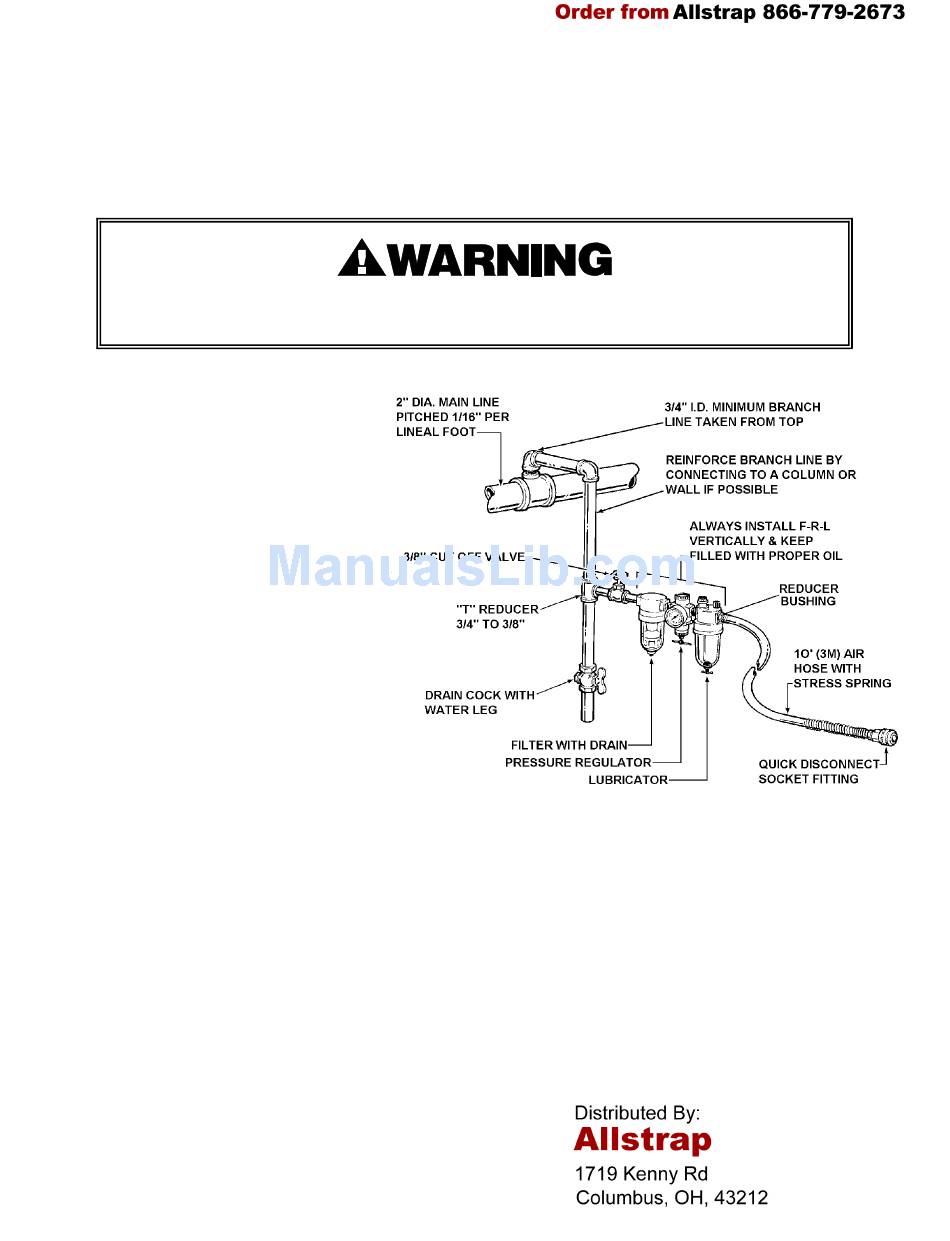

A filter-regulator-lubricator (FRL)
unit must be installed as close to
the air tool as possible, preferably
within 10 feet. It should be placed
in a convenient location where it
can easily be drained, adjusted, and
filled with oil. The air hose must
have at least a 3/8" I.D. A quick
disconnect socket fitting is installed
on the stress spring end of the hose
for convenient hookup to the air
tool.
Filter-Regulator-Lubricator Unit
(Signode Part No. 008559 or 173111)
FRL Mounting Bracket
(Signode Part No. 071982)
Air Hose, 3/8" ID, 1/4" Fittings
(Signode Part No. 008558)
Reducer Bushing, 3/8" to 1/4"
(Signode Part No. 008478)
Quick Disconnect, 1/4" Fitting
(Signode Part No. 020706)
Filter and lubricator bowls are made of polycarbonate material. Do not install where bowls may
be exposed to materials incompatible with polycarbonate. Certain oils, solvents, and chemicals
or their fumes can weaken these bowls and possibly cause them to burst. Clean only with warm
water. A cut-off valve placed ahead of the filter will be useful when cleaning the filter or
replenishing the lubricator.
6
