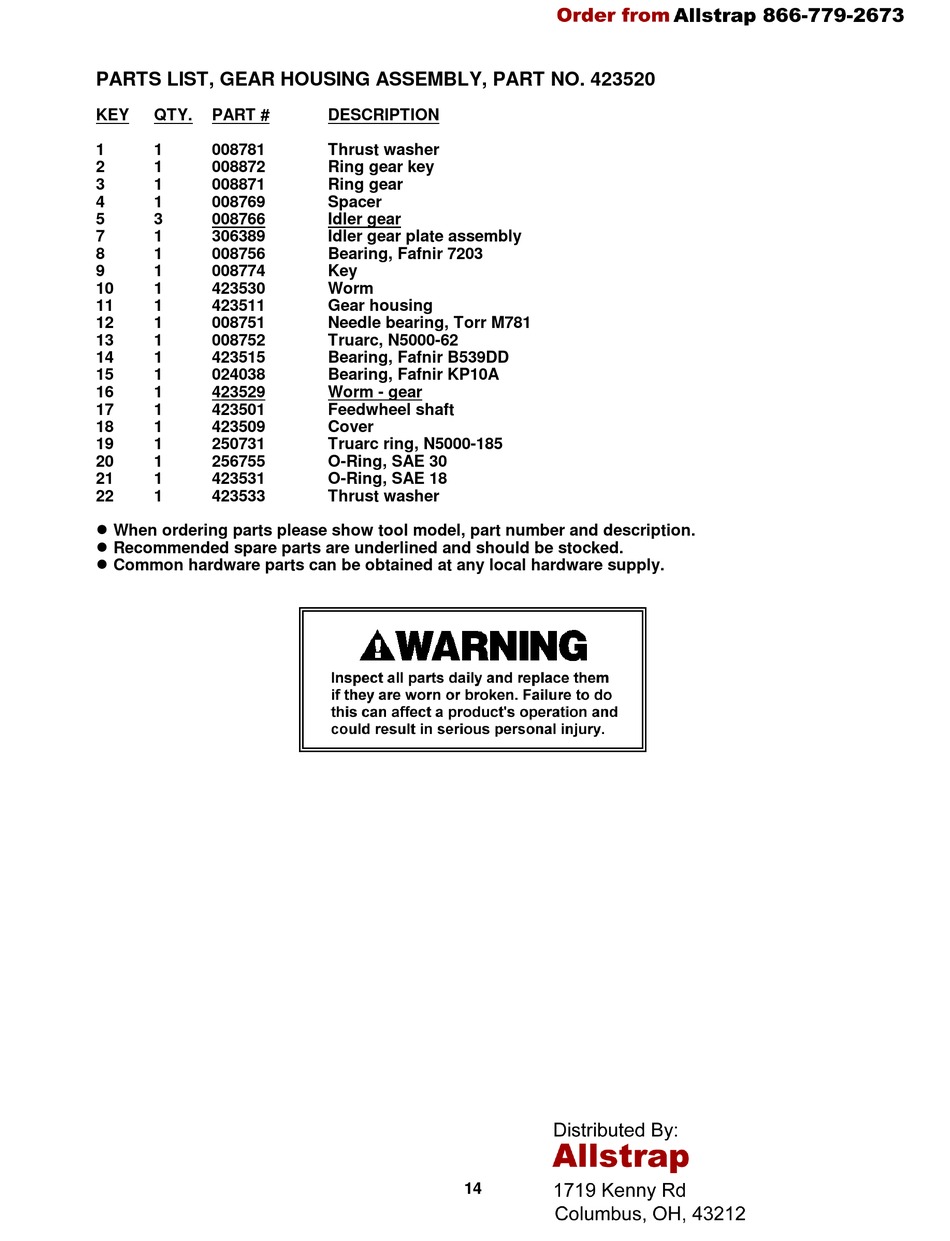

PARTS LIST, GEAR HOUSING ASSEMBLY, PART NO. 423520
KEY QTY. PART #
1 1 008781
2 1 008872
3 1 008871
4 1 008769
5 3 008766
7 1 306389
8 1 008756
9 1 008774
10 1 423530
11 1 423511
12 1 008751
13 1 008752
14 1 423515
15 1 024038
16 1 423529
17 1 423501
18 1 423509
19 1 250731
20 1 256755
21 1 423531
22 1 423533
!
When ordering parts please show tool model, part number and description.
!
Recommended spare parts are underlined and should be stocked.
!
Common hardware parts can be obtained at any local hardware supply.
DESCRIPTION
Thrust washer
Ring gear key
Ring gear
Spacer
Idler gear
Idler gear plate assembly
Bearing, Fafnir 7203
Key
Worm
Gear housing
Needle bearing, Torr M781
Truarc, N5000-62
Bearing, Fafnir B539DD
Bearing, Fafnir KP10A
Worm - gear
Feedwheel shaft
Cover
Truarc ring, N5000-185
O-Ring, SAE 30
O-Ring, SAE 18
Thrust washer
