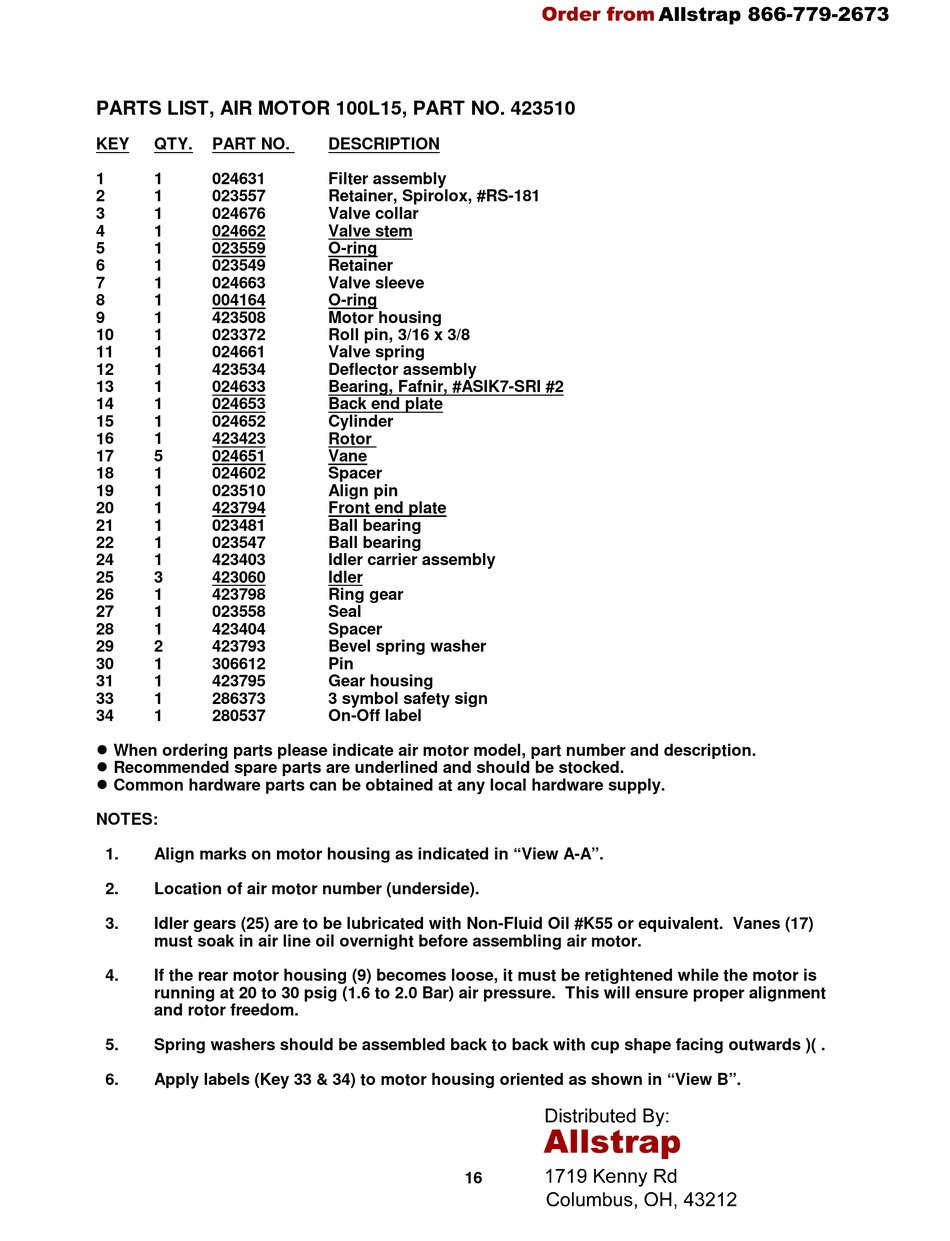

PARTS LIST, AIR MOTOR 100L15, PART NO. 423510
KEY QTY. PART NO.
1 1 024631
2 1 023557
3 1 024676
4 1 024662
5 1 023559
6 1 023549
7 1 024663
8 1 004164
9 1 423508
10 1 023372
11 1 024661
12 1 423534
13 1 024633
14 1 024653
15 1 024652
16 1 423423
17 5 024651
18 1 024602
19 1 023510
20 1 423794
21 1 023481
22 1 023547
24 1 423403
25 3 423060
26 1 423798
27 1 023558
28 1 423404
29 2 423793
30 1 306612
31 1 423795
33 1 286373
34 1 280537
!
When ordering parts please indicate air motor model, part number and description.
!
Recommended spare parts are underlined and should be stocked.
!
Common hardware parts can be obtained at any local hardware supply.
NOTES:
1. Align marks on motor housing as indicated in "View A-A".
2. Location of air motor number (underside).
3. Idler gears (25) are to be lubricated with Non-Fluid Oil #K55 or equivalent. Vanes (17)
must soak in air line oil overnight before assembling air motor.
4. If the rear motor housing (9) becomes loose, it must be retightened while the motor is
running at 20 to 30 psig (1.6 to 2.0 Bar) air pressure. This will ensure proper alignment
and rotor freedom.
5. Spring washers should be assembled back to back with cup shape facing outwards )( .
6. Apply labels (Key 33 & 34) to motor housing oriented as shown in "View B".
DESCRIPTION
Filter assembly
Retainer, Spirolox, #RS-181
Valve collar
Valve stem
O-ring
Retainer
Valve sleeve
O-ring
Motor housing
Roll pin, 3/16 x 3/8
Valve spring
Deflector assembly
Bearing, Fafnir, #ASIK7-SRI #2
Back end plate
Cylinder
Rotor
Vane
Spacer
Align pin
Front end plate
Ball bearing
Ball bearing
Idler carrier assembly
Idler
Ring gear
Seal
Spacer
Bevel spring washer
Pin
Gear housing
3 symbol safety sign
On-Off label
