Parts List, Tool - Signode PN2-2 Operation, Parts And Safety Manual

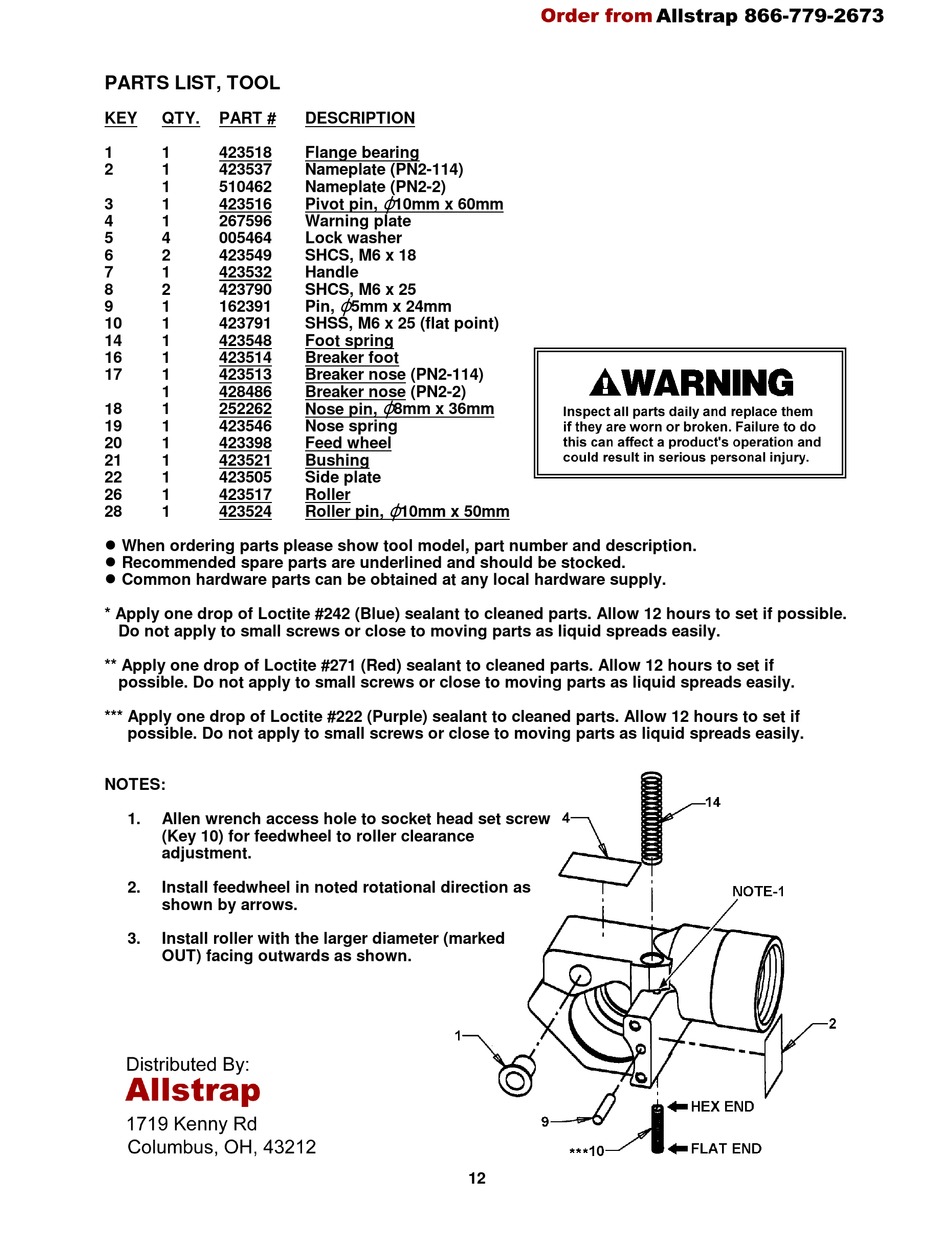

PARTS LIST, TOOL

KEY QTY. PART #
1 1 423518
2 1 423537
1 510462
3 1 423516
4 1 267596
5 4 005464
6 2 423549
7 1 423532
8 2 423790
9 1 162391
10 1 423791
14 1 423548
16 1 423514
17 1 423513
1 428486
18 1 252262
19 1 423546
20 1 423398
21 1 423521
22 1 423505
26 1 423517
28 1 423524
!
When ordering parts please show tool model, part number and description.
!
Recommended spare parts are underlined and should be stocked.
!
Common hardware parts can be obtained at any local hardware supply.
* Apply one drop of Loctite #242 (Blue) sealant to cleaned parts. Allow 12 hours to set if possible.
Do not apply to small screws or close to moving parts as liquid spreads easily.
** Apply one drop of Loctite #271 (Red) sealant to cleaned parts. Allow 12 hours to set if
possible. Do not apply to small screws or close to moving parts as liquid spreads easily.
*** Apply one drop of Loctite #222 (Purple) sealant to cleaned parts. Allow 12 hours to set if
possible. Do not apply to small screws or close to moving parts as liquid spreads easily.
NOTES:
1. Allen wrench access hole to socket head set screw
(Key 10) for feedwheel to roller clearance
adjustment.
2. Install feedwheel in noted rotational direction as
shown by arrows.
3. Install roller with the larger diameter (marked
OUT) facing outwards as shown.
DESCRIPTION
Flange bearing
Nameplate (PN2-114)
Nameplate (PN2-2)
k
Pivot pin, 10mm x 60mm
Warning plate
Lock washer
SHCS, M6 x 18
Handle
SHCS, M6 x 25
k
Pin, 5mm x 24mm
SHSS, M6 x 25 (flat point)
Foot spring
Breaker foot
Breaker nose (PN2-114)
Breaker nose (PN2-2)
k
Nose pin, 8mm x 36mm
Nose spring
Feed wheel
Bushing
Side plate
Roller
k
Roller pin, 10mm x 50mm
12
