Sangamo RSTAT5 RF Installation Instructions And Owner's Manual

Wireless digital programmable thermostat
Hide thumbs Also See for RSTAT5 RF:
Table of Contents

Advertisement

Quick Links

Enlarged version

SPECIFICATIONS

TRANSMITTER
Power supply
4x AAA 1.5V alkaline batteries
Battery lifespan
1 year
Temperature adjustment range
5 to 35°C
Temperature adjustment scale
0.5°C
Temperature display range
0 to 50°C
Temperature display scale
0.1°C
Operating temperature
0 to 50°C
Switching differential
0.5°C or 1.0°C selectable
Clock accuracy
<1 sec per day
Protection rating
IP30
Pollution class
3
Flexible wire size
0.5-1.5mm
Rigid wire size
0.5-2.5mm
Dimensions
L110.8 x H104 x D21.5
Transmission frequency
868.35Mhz
ErP Class
I
RECEIVER
Power supply
230Vac 50Hz
Contact rating
16A, 250Vac (Volt free changeover contacts)
Radio frequency
868.35Mhz
Receiver category
2
Protection rating
IP43
Insulation class
II
Operating temperature
-10 to 60°C
Storage temperature
-10 to 60°C
Flexible wire size
0.5-1.5mm
Rigid wire size
0.5-2.5mm
Dimensions
L88 x H88 x D39.4
Complies with
EN60730-1, EN60730-2-1, EN60730-2-7,
EN60730-2-11, EN60950-1, EN609501/A11,
EN12098-2, EN12098-5, EN301-489-3,
EN300-220-1, EN300-220-2, EN301-489-1
SERVICE AND WARRANTY
Guarantee: as shown on product identification label.
Any tampering or misuse will invalidate this guarantee.
This
product
must
meet
Waste
Electronic
Electrical Equipment Regulations (WEEE) for suitable
environmental recycling, recovery and/or disposal.
End of life products should be handled in line with local
regulations. Alternatively return end of life product to
Sangamo for correct disposal.
CUSTOMER CARE POLICY
As
part
of
Sangamo's
continuous
improvement
program, the company operates a Customer Care
policy. This means we welcome your comments and
complaints, as it can help us to improve our services
to you, our customer.
Due to our policy of continuous product improvement
and development, the specifications in this guide may
be subject to change without prior notice.
143882 A
2
2
2
2
and
WEE/JH0069TY
Sangamo Limited
Industrial Estate, Port Glasgow,
Renfrewshire, PA14 5XG
Tel 01475 745131
Fax: 01475 600370
Email: enquiries@sangamo.co.uk
Web: www.sangamo.co.uk

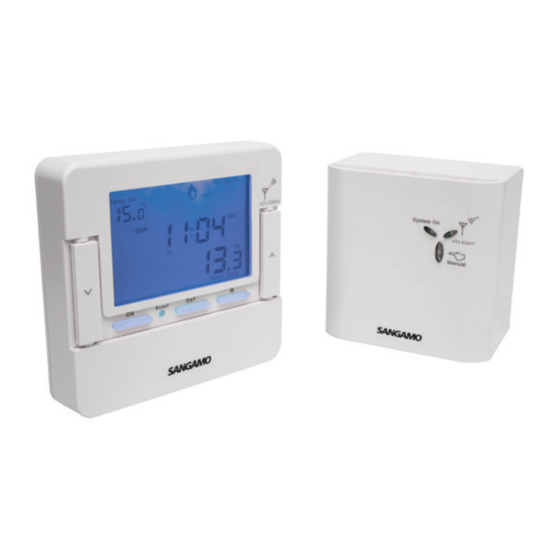

Choice RSTAT5 RF
Wireless Digital Programmable Thermostat

Installation Instructions

SAFETY NOTICE
This unit must be installed by a suitably qualified person in accordance
!
with the latest IEE Wiring Regulations.
Isolate mains supply before commencing installation. Please read all installation
instructions before proceeding.
Ensure that the fixed wiring connections to the mains supply is via a fuse rated
at not more than 16 amps and a class 'A' switch having a contact separation of a
minimum of 3mm in all poles.
No earth connection is required as the product is double insulated but ensure
continuity of earth throughout the system

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSTAT5 RF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sangamo RSTAT5 RF

Summary of Contents for Sangamo RSTAT5 RF

  • Page 1: Specifications

    SPECIFICATIONS TRANSMITTER Power supply 4x AAA 1.5V alkaline batteries Choice RSTAT5 RF Battery lifespan 1 year Temperature adjustment range 5 to 35°C Temperature adjustment scale 0.5°C Temperature display range 0 to 50°C Temperature display scale 0.1°C Operating temperature 0 to 50°C Switching differential 0.5°C or 1.0°C selectable...

  • Page 2: Receiver Wiring

    RECEIVER WIRING RF ADDRESS CODE SETTING 1. Neutral 2. Live The thermostat and receiver are automatically paired when you 3. Output (Call for heat) - Normally closed receive them, however, if there is another unit nearby (e.g. in a 4. Input (Switching circuit) neighbours home) the receiver may trigger their transmitter.

  • Page 3: Changing The Batteries

    Waste Electronic The Choice RSTAT5 RF comprises of a portable battery powered thermostat Electrical Equipment Regulations (WEEE) for suitable environmental recycling, recovery and/or disposal. (transmitter) and a separate wall mounted mains relay box (receiver). The End of life products should be handled in line with local transmitter should be located in the main living area and the receiver is mounted regulations.

  • Page 4: Setting The Time And Date

    HOLD TEMPERATURE PERMANENTLY Hold the thermostat at a desired temperature until manually cancelled by you. 1. Press M x2 to enter permanent override mode then select temperature using ▼▲ and press Ok. 2. Permanent Hold and Temp. Set are displayed. To cancel setting and return to normal operation press Ok.

  • Page 5: Default Program

    To manually change the temperature temporarily you simply press the raise or lower The Choice RSTAT5 RF comes preset with a default program so that you can get up buttons to the desired level, if left alone this will stay set until the next programmed and running straight away.

  • Page 6: Reset Unit

    CUSTOM PROGRAM cont... PROGRAMMING Within programming mode the thermostat will return Below shows the programming segments of the default program on a Weekday. to normal operati on if no butt ons are pressed for 30 6:00am 8:30am 12:00pm 2:00pm 4:30pm 10:30pm seconds.
