Sangamo Choice RSTAT5 RF User Instructions

Wireless digital programmable thermostat
Hide thumbs Also See for Choice RSTAT5 RF:

Advertisement

Table of Contents

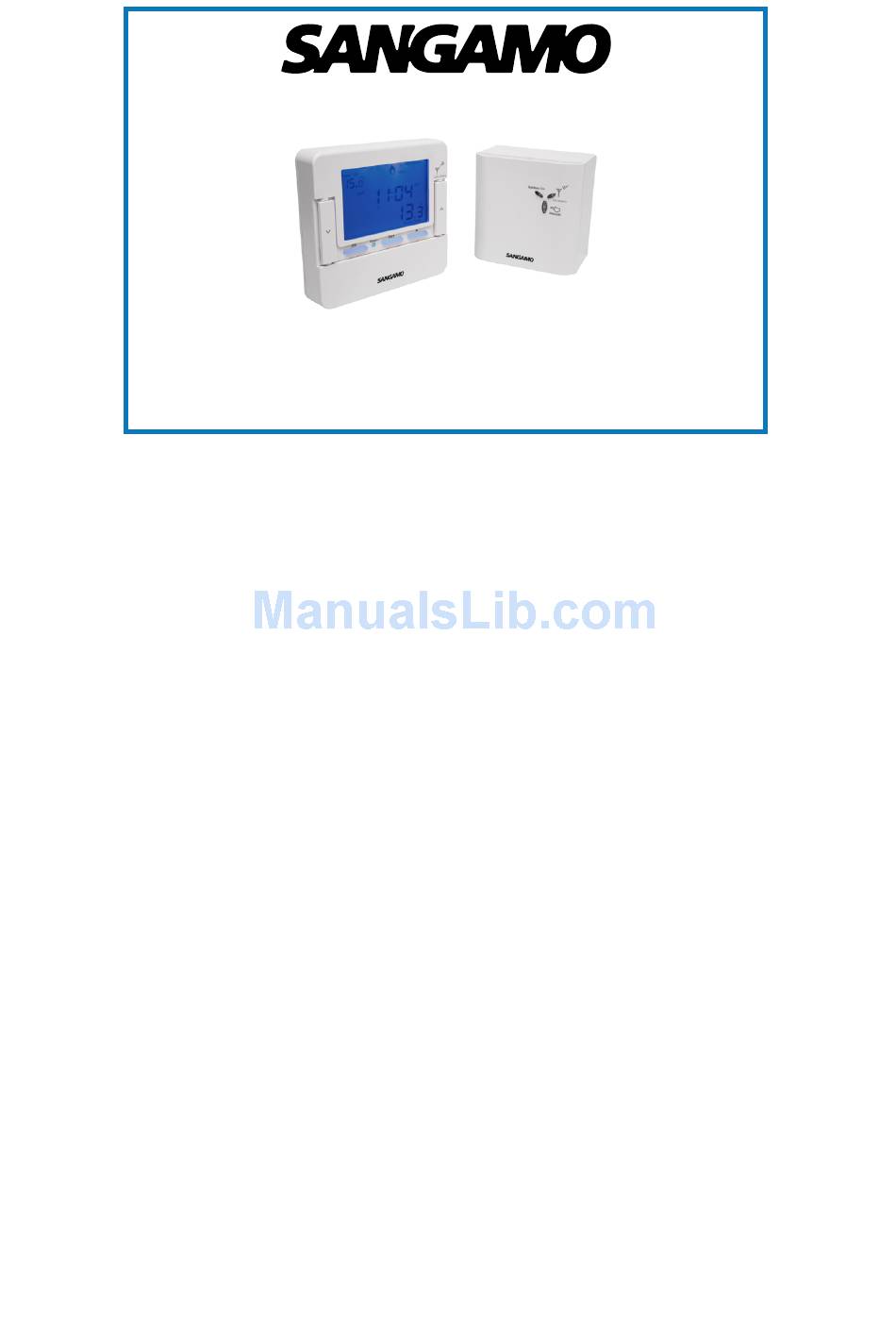

Choice RSTAT5 RF
Wireless Digital Programmable Thermostat

User Instructions

WHAT IS A PROGRAMMABLE THERMOSTAT?
A programmable thermostat differs from a programmer that you may be used to.
With this thermostat you do not set on and off times. Instead you are setting your
desired temperature at varying points throughout the day. This means your home
will always be comfortably warm when needed but you will not be wasting energy
(and money) heating your home when it's not required.
If your thermostat is set to 21°C, for example, your boiler will run until the
thermostat reads over that temperature and then tell the boiler to turn off,
meaning you won't be calling for heat when your home is already at your desired
temperature.
When you set a temperature you are saying you don't want the heating to come on
unless the room temperature is lower than the set temperature.
INTRODUCTION

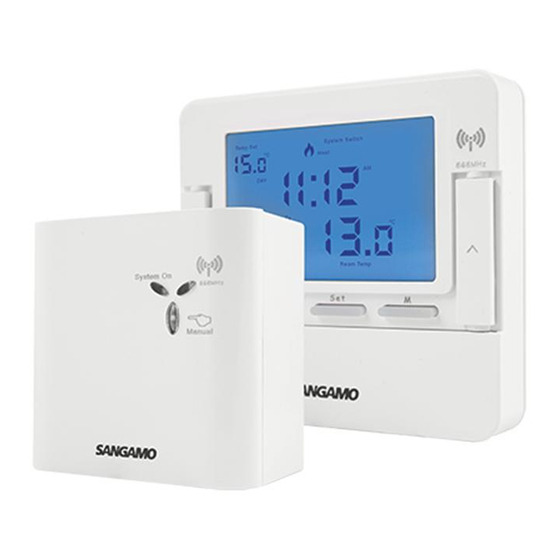

The Choice RSTAT5 RF comprises of a portable battery powered thermostat
(transmitter) and a separate wall mounted mains relay box (receiver). The
transmitter should be located in the main living area and the receiver is mounted
close to the boiler.
This programmable room thermostat has been designed to bring you comfort and
energy economy. It allows you to program and regulate your heating system using
up to 6 programmable events per day.
To ensure its correct operation the thermostat should be mounted or situated
approximately 1.3m above the floor and away from direct sunlight, heat sources and
drafts.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Choice RSTAT5 RF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sangamo Choice RSTAT5 RF

Summary of Contents for Sangamo Choice RSTAT5 RF

  • Page 1: User Instructions

    INTRODUCTION The Choice RSTAT5 RF comprises of a portable battery powered thermostat (transmitter) and a separate wall mounted mains relay box (receiver). The transmitter should be located in the main living area and the receiver is mounted close to the boiler.

  • Page 2: Setting The Time And Date

    ▲Increase or ▼Decrease M Override functions Ok and Set Program/Internal settings SETTING THE TIME AND DATE Before you set the thermostat you should fix the time and date. Press and hold Set for 6 seconds. Choose between °F and °C using ▼▲ and press Ok. Choose between 24hr and 12hr clock using ▼▲...

  • Page 3: Default Program

    DEFAULT PROGRAM The Choice RSTAT5 RF comes preset with a default program so that you can get up and running straight away. Each day is split into 6 parts each one can have it’s time or temperature changed to suit you.
  • Page 4 CUSTOM PROGRAM cont... Below shows the programming segments of the default program on a Weekday. 6:00am 8:30am 12:00pm 2:00pm 4:30pm 10:30pm NIGHT MORN Noon Break EVEN NIGHT Held over from previous day’s setting Essentially, if the thermostat reads the temperature below the chosen temperature it will send a message for the boiler to fire and your heating to come on.

  • Page 5: Reset Unit

    PROGRAMMING Within programming mode the thermostat will return to normal operation if no buttons are pressed for 30 seconds. To exit programming mode either wait 30 seconds or press Set x2 and Ok. NB: Each day’s end time is 11:59 in 12hr or 23:59 in 24hr Prog is shown at the formats.
  • Page 6 CHANGE THE TEMPERATURE To manually change the temperature temporarily you simply press the raise or lower buttons to the desired level, if left alone this will stay set until the next programmed change at which point it returns back to the original schedule. 1.

  • Page 7: Holiday Mode

    HOLD TEMPERATURE PERMANENTLY Hold the thermostat at a desired temperature until manually cancelled by you. 1. Press M x2 to enter permanent override mode then select temperature using ▼▲ and press Ok. 2. Permanent Hold and Temp. Set are displayed. To cancel setting and return to normal operation press Ok.

  • Page 8: Changing The Batteries

    Electrical Equipment Regulations (WEEE) for suitable environmental recycling, recovery and/or disposal. End of life products should be handled in line with local regulations. Alternatively return end of life product to Sangamo for correct disposal. WEE/JH0069TY CUSTOMER CARE POLICY part Sangamo’s...
