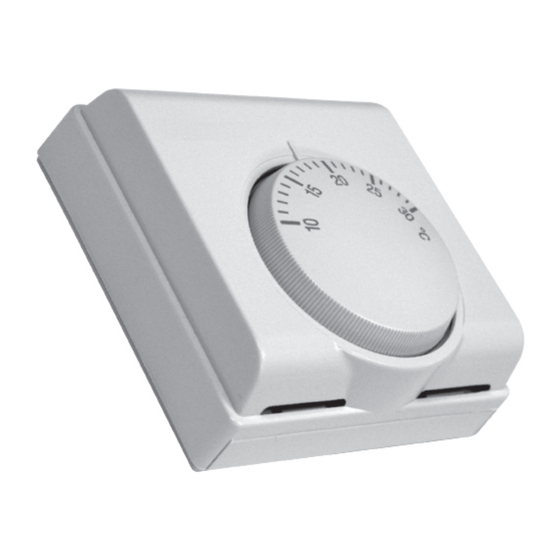

CHOICE - RSTAT1 - Room Thermostat
Installation and
User Instructions
Care should be taken to mount the thermostat
in a position that is not in direct sunlight, close
to radiators or in draughts.
2
a
3
a
Wiring to terminals
4
Wall box mounting
Fixing holes spaced to suit
BS4662
Screws supplied
Wall box wiring
8mm
1
Cover removal
Caution: Isolate power
supply and make safe
before wiring the unit to
prevent electric shock
and equipment damage.
Installation should be
carried out by a
competent person.
b
b
Completion
5
Surface mounting
Use wall box fixing holes
or alternatives shown
Screws supplied
Surface wiring
