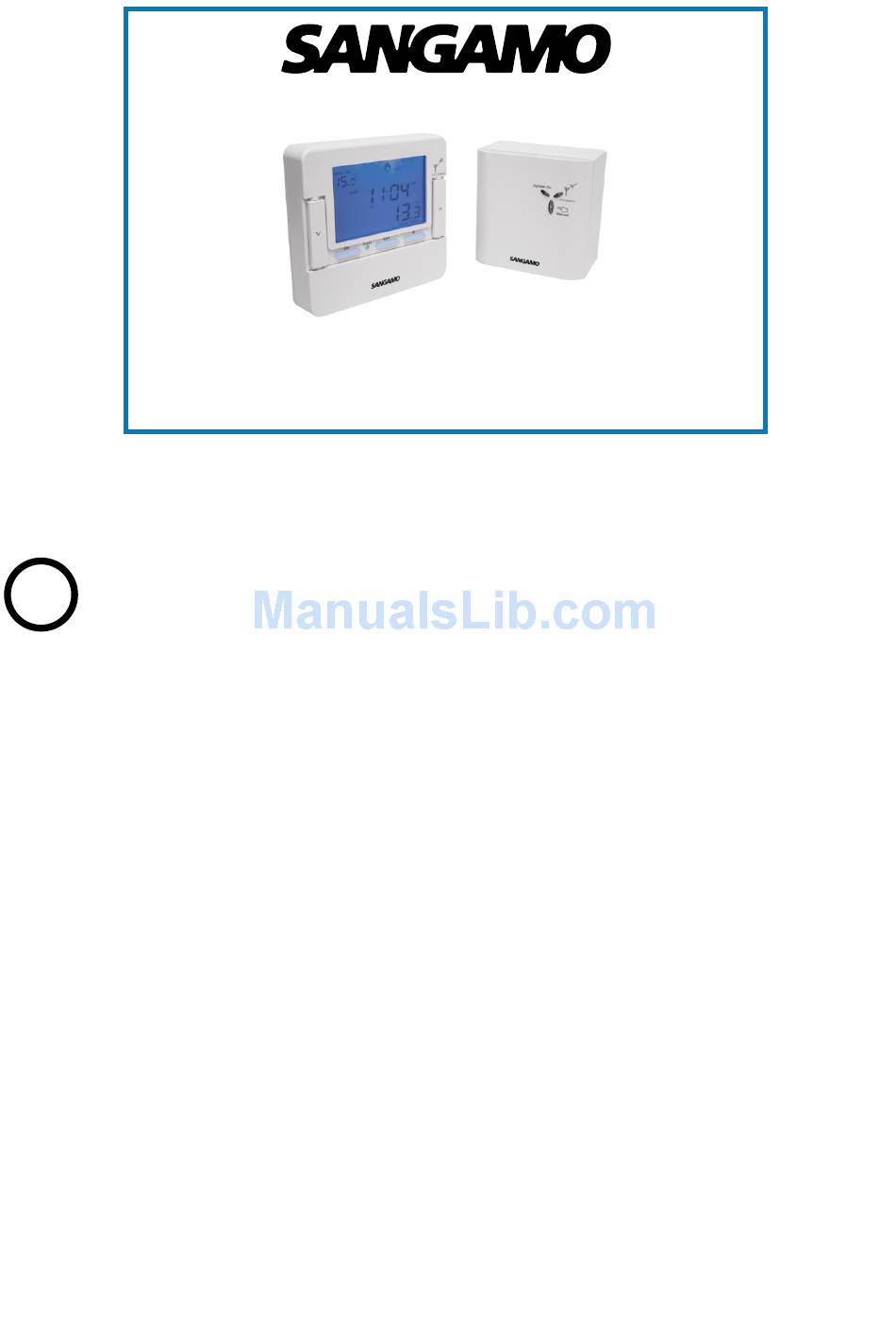

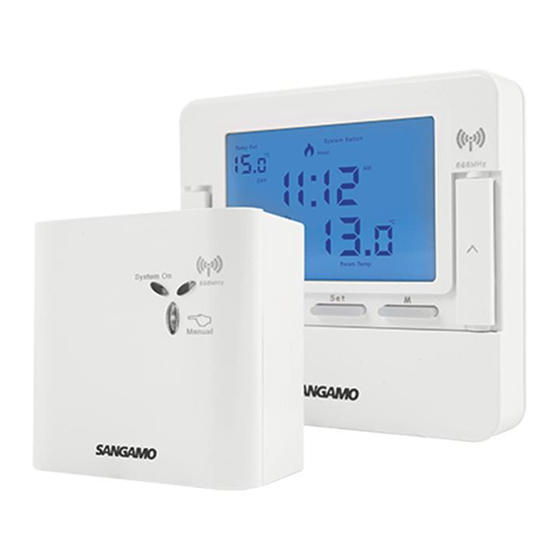

Choice RSTAT5 RF

Wireless Digital Programmable Thermostat

Installation Instructions

This unit must be installed by a suitably qualified person in accordance

with the latest IEE Wiring Regulations.

Isolate mains supply before commencing installation. Please read all installation

instructions before proceeding.

Ensure that the fixed wiring connections to the mains supply is via a fuse rated

at not more than 16 amps and a class 'A' switch having a contact separation of a

minimum of 3mm in all poles.

No earth connection is required as the product is double insulated but ensure

continuity of earth throughout the system

Table of Contents

Do you have a question about the Choice RSTAT5 RF and is the answer not in the manual?

Page 1: Installation Instructions
Choice RSTAT5 RF Wireless Digital Programmable Thermostat Installation Instructions SAFETY NOTICE This unit must be installed by a suitably qualified person in accordance with the latest IEE Wiring Regulations. Isolate mains supply before commencing installation. Please read all installation instructions before proceeding.
Page 2 RECEIVER WIRING 1. Neutral 2. Live 3. Output (Call for heat) - Normally closed 4. Input (Switching circuit) 5. Not used - Normally open Externally link 2 to 4 if using a single 230Vac supply EXAMPLE CIRCUIT DIAGRAMS NB: For reasons of space & clarity some system components are not shown. 230V 230V COMBI...
Page 3 RF ADDRESS CODE SETTING The thermostat and receiver are automatically paired when you receive them, however, if there is another unit nearby (e.g. in a neighbours home) the receiver may trigger their transmitter. To avoid this you can change the RF address code on both the thermostat and transmitter.
Page 4: Specifications
Electrical Equipment Regulations (WEEE) for suitable environmental recycling, recovery and/or disposal. End of life products should be handled in line with local regulations. Alternatively return end of life product to Sangamo for correct disposal. WEE/JH0069TY CUSTOMER CARE POLICY part Sangamo’s...
