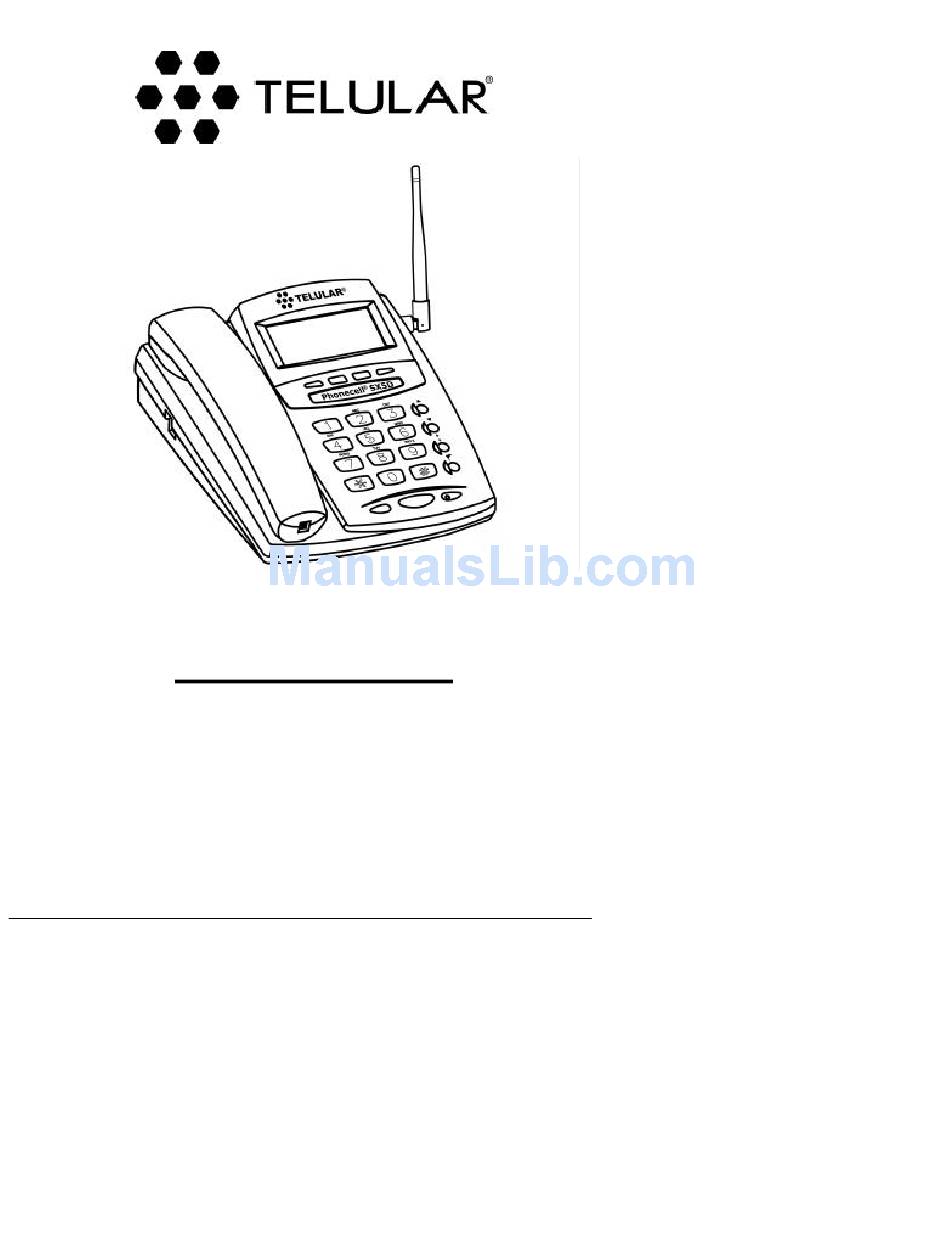

- Page 1 ® SX5D GSM HONECELL ESKTOP HONE 900/1800 MH GSM (D 1900 MH OICE OMMUNICATION AND OMPUTER ECHNICAL ANUAL 01/30/02 Part Number 5602xxxx...
-
Page 2: Standard Connections
STANDARD CONNECTIONS DESKPHONE MODEL ONLY Phonecell SX5D Technical Manual ®... - Page 3 FAX PHONE MODEL ONLY PERSONAL LEAST COST ROUTING MODEL ONLY Phonecell SX5D Technical Manual ®...
-
Page 4: Important Notices
PRODUCTS ("Product") These Terms and Conditions are a legal contract between you and Telular Corporation for the title to and use of the Product. BY RETAINING AND USING THE PRODUCT AFTER RECEIPT OF IT, YOU AGREE TO THE TERMS AND CONDITIONS INCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITY AND INDEMNIFICATION PROVISIONS BELOW. - Page 5 TABLE OF CONTENTS IMPORTANT NOTICES....................2 Technical Support.......................2 INSTALLATION......................5 Location and Setup ....................5 Connect the Handset ....................Optional Wedge ......................Wall Mounting....................... Connect Your Phonecell ® SX5D to AC Power.............. Battery Backup......................External Connectors..................... OPERATION........................Function Keys ......................LCD Display ......................... SIM Card Installation ....................
- Page 6 TABLE OF CONTENTS (CONTINUED) DIGITAL DATA SERVICE ....................Standard Modem Setting ..................... Sending and Receiving Digital Fax................TECHNICIAN COMMANDS..................... SAFETY INFORMATION ....................WARRANTY ........................Appendix A: How to Setup PC Serial Ports for Phonecell ® Computer Digital Fax/Data ..................... Phonecell SX5D Technical Manual ®...
-
Page 7: Installation
INSTALLATION SX5D Location and Setup The SX5D comes with a standard spike antenna (TNC). 1) Choose location that is above ground and as close to windows (or exterior walls) as possible to get the best signal - see Figure 2) Finger-tighten the antenna; do not over-tighten. Figure –... -
Page 8: Sim Card Installation
SIM Card Installation The SX5D requires a Subscriber Identification Module (SIM) for normal operation. The service provider supplies the SIM card, which carries the account information needed to operate the ® SX5D. The SIM compartment is on the back of the Phonecell SX5. - Page 9 Attach the Optional Wedge 1) Slide the wedge tabs on one end of the wedge into the top wedge tab slots. 2) Snap the wedge tabs on the other end of the wedge into the bottom wedge tab slots. Wedge tabs Top wedge tab slots Bottom wedge...
-
Page 10: Wall Mounting
Wall-Mounting 1) Remove the mounting clip from the cradle and re-insert it with the tab pointing up - see Figures and . Mounting Clip in Cradle (tab up) Remove Mounting Clip Insert from the Cradle Mounting (tab down) Clip into the Cradle (tab up) Figure –... - Page 11 Battery Backup How to Install Battery 1) Remove the battery access door screw located on the bottom of the unit. 2) Press the battery access door tabs and remove the battery access door. 3) Install 4 AA batteries 4) Reinstall the battery access door using the screw 5) Turn the AC/Battery switch to battery operation **The SX5D does not support rechargeable batteries Battery Operation...
-
Page 12: Back View
Back View ----UPDATE: THESE WILL CHANGE DEPENDING ON THE MODULE----- AC Power Input Serial Port AC/Battery Switch Keyboard Port Phone (DB-9) (DIN) (RJ-11) FAX or PSTN (RJ-11) Side View Microphone Antenna (TNC) Phonecell SX5D Technical Manual ®... -
Page 13: Operation
OPERATION Function Keys Operation of the Phonecell ® SX5 is accomplished though the function keys on the keypad of the unit - see Figure . LCD Screen LCD Soft Key Buttons Speakerphone and handset volume control Redial Flash Mute Speakerphone Figure –... - Page 14 Full Service When the power cord is connected properly, the SX5D will display the Telular logo, emit a power on tone, and the LED will light up. After a few seconds the greeting and mobile number will display. If you have service, the antenna icon will display indicator lines to show the signal strength.
-
Page 15: Sim Pin Setup
To Add New Network 1) Press MENU. 2) Select Settings, then select Network Settings. 3) Select Add New Network. If you have already added some networks, a list of those net- works will display. 4) Select Add. If a list of networks displays, press the SELECT key, then select Add. 5) Enter the correct Country Code, Network Code, and Network Name as prompted. -
Page 16: To End A Call
To Place a Call 1) Pick up the handset or press the Speaker phone button. The SX5D is now “off-hook.” 2) Listen for dial tone. 3) Dial the phone number. The dialed number is displayed on the display, along with the name if it is stored in your phonebook. To Correct Dialing Errors •... - Page 17 To Adjust Phone Alert Volume (ringer) 1) Press the MENU key, 2) Select Settings, then Audio Settings. 3) Select Alert Volume and set desired volume level. NOTE: If you choose “Silent”, no alert will sound. To Change Alert Tones You can set different alerts for different types of calls. This allows you to tell the difference between a voice call or an SMS mes- sage, for example, by the alert that sounds.
-
Page 18: Speed Dialing
To Add a New Entry to the Phonebook 1) Press the MENU key, 2) Select Phonebook, then select Add Name 3) Enter a name by pressing the alphanumeric keys. You can only input 16 letters. NOTE: To correct errors in the name, press the CLEAR key. 4) Press the OK key. - Page 19 FEATURES Call Logs The SX5D’s memory stores the telephone numbers of the last ten outgoing calls and the last ten incoming calls along with the dates and times of the calls. You can display these numbers and the SX5D can dial them automatically from the call log. To View the Call Log 1) Press the MENU key.
- Page 20 Date and Time Settings The SX5D allows you to set the date, time, time zone, and time format (12 or 24 hour), and customize how that information is displayed. To Set the Date 1) Press the MENU key. 2) Select Clock, then Clock Settings. 3) Scroll to Date Format.
- Page 21 To Turn Alarm On/Off 1) Press the MENU key. 2) Select Clock, then Set alarm. 3) Select Alarm Status. 4) Select On or Off. 5) Press OK To Display Your Own Telephone Number You can have your phone number display when the SX5D is turned on. 1) Press the MENU key, 2) Select Settings, then Phone Settings.
- Page 22 To Set Call Bar Modes 1) Press the MENU key. 2) Select Settings, then Security settings. 3) Select Handset Call Barring, or Network Call Barring 4) Select the bars you wish to implement. To Use Fixed Dialing 1) Press the MENU key. 2) Select Settings, then Security settings.
-
Page 23: Call Forwarding
SUPPLEMENTARY FEATURES (NETWORK DEPENDENT) Call Forwarding Call Forwarding allows you to forward your incoming calls to another telephone number, even if your phone is turned off. You can specify the criteria for calls to be forwarded. Options are: all calls, calls that come in when your line is busy, calls that are not answered after a specified number of rings, or calls that come in when the SX5D is powered off or has lost the network signal (Not Call Forwarding Step 2... -
Page 24: Short Message Service (Sms)
Voicemail When there are new voicemail messages, the VM key will blink and the envelop icon will dis- play. Contact your service provider to activate voicemail. How to Check Voicemail 1) Press the VM key. You will be connected to your voicemail system automatically. 2) Follow the the automated instructions. - Page 25 To Reply to Received Messages 1) View the message you wish to reply to. 2) Press the OPTIONS key. 3) Select Text Reply to reply with a text message. Select Voice Reply to reply with a voicemail. 4) For a Text Reply, type your reply message, then press OK. View Received Message Selecting Voice Reply will activate the speakerphone and con- nect to the person who sent the message.
- Page 26 Info Messages Info messages provide you with information such as phone numbers for taxi services, car rentals, or emergency services. If your service provider offers Info messages, you can select what subjects you would like to view and choose the language in which you would like to view it. To Set Info Subjects 1) Press the MENU key.
-
Page 27: Digital Data Service
DIGITAL DATA SERVICE DB-9 cable and PC serial To PC Serial Port port have 9 PIN connections DB-9 (female) to DB-9 (male) Cable DB-25 cable and PC To DB-9 Data Port serial port have 25 PIN connections DB-25 (female) to DB-9 (male) Cable Figure - PC Data Connection Standard Modem Setting The SX5D features a DB-9 digital computer fax/data port for connection to a personal computer... - Page 28 LEAST COST ROUTING (LCR) SETUP The personal LCR option for the SCX5D allows you to operate both a regular public switched telephone network (PSTN) landline phone account and a GSM wireless account through a sin- gle deskphone. This gives you two separate lines, and allows you to take advantage of lower calling costs, depending on whether you are connecting to someone via a PSTN or a wireless network.
- Page 29 ANALOG FAX SETUP The Analog Fax option allows you to connect a fax machine and additional telephones to your SX5. Your SX5D can be set up to use one or both of its RJ-11 jacks. In Single Jack mode, only the jack designated with a telephone icon is operational.
-
Page 30: Technician Commands
Phonecell ® SX5, violate local regulations and breach the service agreement with the cellular provider. For further assistance, please contact your Authorized Telular Representative. TECHNICIAN COMMANDS ® The following options are to be used by trained field technicians to set up the Phonecell for operation in the network. -
Page 31: Safety Information
Communications Commission (FCC) proposed the adoption of this updated Standard. ® The design of your Telular Phonecell SX5 complies with this updated Standard. Of course, if you want to limit RF exposure even further than the updated ANSI Standard, you may choose to control the duration of your calls and operate your phone in the most power-efficient manner. - Page 32 Increase the separation between the equipment and the terminal. Connect the equipment into an outlet on a circuit different from that to which the terminal is connected. Consult your Authorized Telular Distributor or an experienced radio/TV technician for help. Phonecell SX5D Technical Manual ®...
-
Page 33: Important Notices
(15) months from date of shipment from Telular. Telular, at its option, shall at no charge either repair, replace or refund the purchase price of the Product during the warranty period, provided it is returned by Buyer in accordance with the terms of this warranty to the Telular designated repair center. - Page 34 Telular software. Telular software may be copied into, used in and redistributed with only the Product associated with such Telular software. No other use, including without limi - tation, disassembly of such Telular software or exercise of exclusive rights in such Telular soft- ware is permitted and Telular reserves all rights not expressly granted in this Limited Commercial Warranty.
-
Page 35: Appendix A: To Setup Pc Serial Ports For Phonecell Digital Fax/Data
APPENDIX A: TO SETUP PC SERIAL PORTS FOR PHONECELL DIGITAL FAX/DATA Requirements · GSM account with your network service provider including a Data/Fax facility. · PC/Laptop/ Notebook with Com Port. · Windows 95/98 NOTE: When all of the above have been satisfied, you may proceed. Modem Setup 1) Power on your PC/laptop and start Windows 95/98. - Page 36 4) The install new modem window may appear asking for the type of modem to install. Click on "Other" followed by clicking the NEXT button. If this window does not appear, go to Step 5. 5) The install new modem window will appear. Then, click on the "Don't detect my modem option"...
- Page 37 6) The install new modem will update again to select the manufacturer and modem model. Click on "Standard Modem Types" from the manufactures list followed by "Standard 19200 bps Modem" from the model list. Then click on the NEXT button. 7) The install new modem will update to select the com port.
- Page 38 8) The Install New Modem window will update again. Click on Finish to proceed. 9) The Modems Properties window should appear. Click on the Properties button. Phonecell SX5D Technical Manual ®...
- Page 39 10) The Standard 19200 bps Modem Properties window will open in the General tab. Set as shown with the com port you have selected. 11) Click on the Connection tab. Set as shown below. Phonecell SX5D Technical Manual ®...
- Page 40 13) Click on OK and Close to back out of each window. Your modem is now set up. 647 North Lakeview Parkway Vernon Hills, Illinois 60061, USA Tel:847-247-9400 • Fax: 847-247-0021 E-mail: mainoffice@telular.com http://www.telular.com Part Number 56023201 ©2002 Telular Corporation, all rights reserved.
