Summary of Contents for Telular PHONECELL SX4P TDMA 800

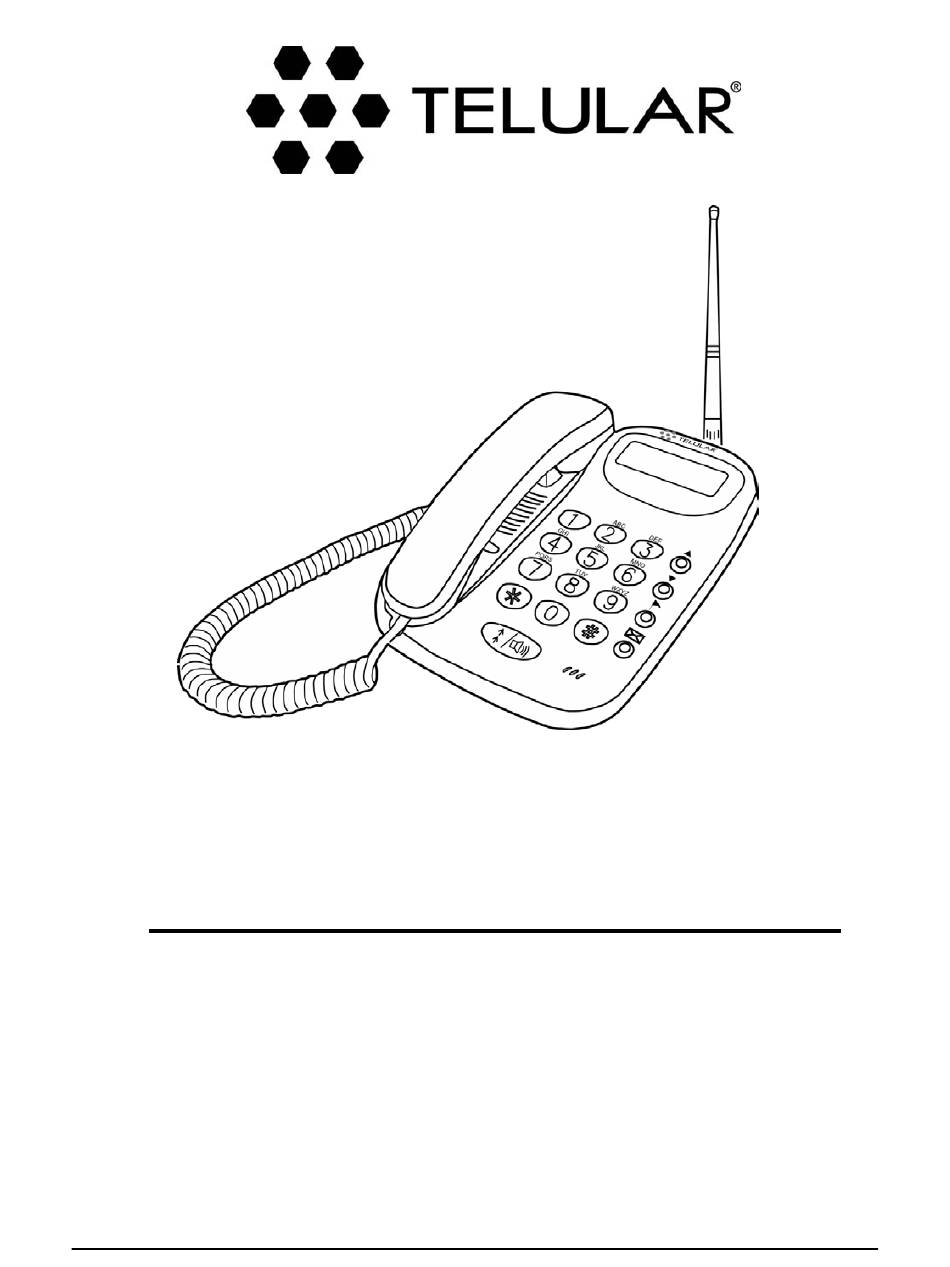

- Page 1 SX4P TDMA 800 ® HONECELL ESKTOP HONE OICE ODEL ANUAL Part Number 56027801 rev2 11/04/03...
-
Page 2: Contents
® These Terms and Conditions are a legal contract between you and Telular Corporation for the title to and use of the Product. BY RETAINING AND USING THE PRODUCT AFTER RECEIPT OF IT, YOU AGREE TO THE TERMS AND CONDITIONS INCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITY AND INDEMNIFICATION PROVISIONS BELOW. -
Page 3: Table Of Contents
View Missed Calls ......................9 View Dialed Calls .......................9 Hookflash ........................9 IMPORTANT TONES AND ALERTS ................9 PHONECELL SX4P TROUBLESHOOTING ...............10 PHONECELL SX4P USER SET-UP ................11 PHONECELL SX4P USER SET-UP COMMANDS............11 GENERAL INFORMATION AND SAFETY ..............13 WARRANTY .........................14 Phonecell SX4P TDMA 800 USer Manual... -
Page 4: Installation
Battery Access 6 AAA Door Screw Batteries Figure 3 – SX4P battery access door located on the back of Figure 4 – SX4P battery compartment with 6 - AAA the unit. batteries (not included). Phonecell SX4P TDMA 800 User Manual... -
Page 5: Connect Your Phonecell Sx4P To Ac Power
Figure 7 – Handset mounting clip assembly for Figure 6 – Handset wall-mount applications. mounting clip assembly. Mounting Holes Figure 9 – Mount the SX4P onto the screws. Figure 8 – SX4P mounting hooks. Phonecell SX4P TDMA 800 User Manual... -
Page 6: Lcd Display
The Call Timer icon is then turned off. If the handset goes off-hook and a digit is pressed within the thirty second period, the call time display will immediately turn blank. Phonecell SX4P TDMA 800 User Manual... -
Page 7: Phonecell Sx4P Power-Up Sequence
1) While the call is active, to disable the speaker and activate the handset, just pick up the handset from the cradle. The speakerphone is now inactive. To activate the speakerphone while using the handset just press the Redial/Speakerphone key. The speakerphone function is now Phonecell SX4P TDMA 800 User Manual... -
Page 8: Place A Call
The SX4P will store a maximum of 10 missed calls. 1) Press the UP key. MISSED CALLS will be displayed in the Indicator (bottom) row. 2) Press the Up/Down keys to scroll through all missed calls. Missed call telephone numbers will Phonecell SX4P TDMA 800 User Manual... -
Page 9: View Missed Calls
NOTE: Cycling (turning OFF/ON) the power will erase the current list. A new list will be started when power is re-applied. To enable or disable this feature, see the User Set-Up Commands section of this manual. Phonecell SX4P TDMA 800 User Manual... -
Page 10: Phonecell Sx4P Troubleshooting
WARNING! Only Authorized Service Personnel should remove the cover of your Phonecell SX4P. For further assistance, contact your Authorized Telular Representative. Please have the model and serial number ready (model and serial numbers are located on the label on the bottom of the unit). -
Page 11: Phonecell Sx4P User Set-Up
The volume value is set to 0 to for off; 1 for low; and 2 for high. If the volume value is greater than 2, it is considered invalid. The factory default is 1. Phonecell SX4P TDMA 800 User Manual... - Page 12 The following key sequence is used to view the SX4P MIN (phone number): Label: MIN: _ _ _ _ _ _ _ _ _ _ This is a read-only feature and is not user programmable. Phonecell SX4P TDMA 800 User Manual...
-
Page 13: General Information And Safety
Standard. The design of your Telular Phonecell SX4P complies with this updated Standard. If you want to limit RF exposure even further than the updated ANSI Standard, you may choose to control the duration of your calls and operate your phone in the most power-efficient manner. -
Page 14: Warranty
(15) months from date of shipment from Telular. Telular, at its option, shall at no charge either repair, replace or refund the purchase price of the Product during the warranty period, provided it is returned by Buyer in accordance with the terms of this warranty to the Telular designated repair center. - Page 15 Laws in the United States and other countries preserve for Telular certain exclusive rights for copyrighted Telular software such as the exclusive rights to reproduce in copies and distribute copies of such Telular software. Telular software may be copied into, used in and redistributed with only the Product associated with such Telular software. No other use, including without limitation, disassembly of such Telular software or exercise of exclusive rights in such Telular software is permitted and Telular reserves all rights not expressly granted in this Limited Commercial Warranty.
- Page 16 647 North Lakeview Parkway Vernon Hills, Illinois 60061, USA Tel: 847-247-9400 • Fax: 847-247-0021 E-mail: mainoffice@telular.com http://www.telular.com Part Number 56027801 rev2 ©2003 Telular Corporation, all rights reserved.
