Juni Chair

INSTRUCTIONS FOR USE

Codes 16011-16014, 16021-16024, 16031-16034

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 16011-16014 and is the answer not in the manual?

Questions and answers

Related Manuals for smirthwaite 16011-16014

Summary of Contents for smirthwaite 16011-16014

  • Page 1: Instructions For Use

    2/11 Juni Chair INSTRUCTIONS FOR USE Codes 16011-16014, 16021-16024, 16031-16034...

  • Page 2: Table Of Contents

    9.0 WARRANTY & AFTERSALE 1.0 INTRODUCTION Thank you for choosing your new Smirthwaite Juni Chair. The Juni has been designed for children who require minimal levels of postural support when seated. It’s simple, unobtrusive design style fits well into nursery, school and home environments.

  • Page 3: Illustration Of Your Chair

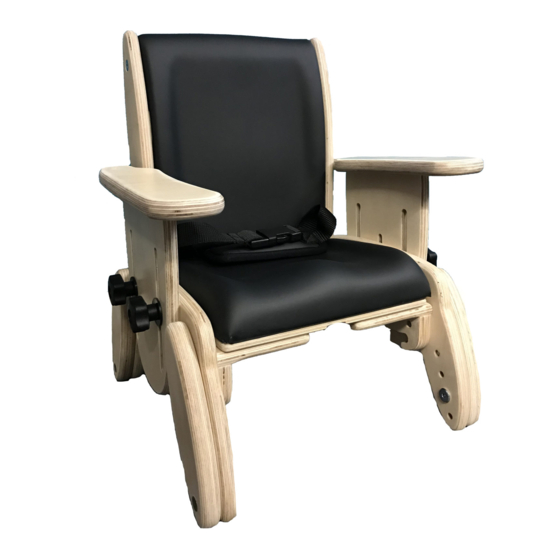

    2.0 ILLUSTRATION OF YOUR JUNI CHAIR A. Contoured seat B. Adjustable backrest C. Adjustable armrest D. Outrigger legs 2.1 TECHNICAL DATA...

  • Page 4: For Your Safety

    Smirthwaite Ltd authorised personnel.  The Juni is CE marked. This certifies that it meets all relevant European safety requirements. If you believe this product to be faulty - DO NOT USE - Contact G&S Smirthwaite Ltd on T: +44 (0) 1626 83552...

  • Page 5: Unpacking And Assembling Your Chair

    4.0 UNPACKING AND ASSEMBLING YOUR CHAIR  The Juni chair is supplied either fully assembled or in part assembled form, for the customer to undertake final assembly – see guide below. For a detailed guide refer to Section 5.  A part assembled Juni is supplied with the seat cushion (A) removed and the back cushion fully rotated forward (B).

  • Page 6: Setting Up And Adjusting Your Chair

    5.0 SETTING UP AND ADJUSTING YOUR JUNI CHAIR STOP! If in any doubt, ALWAYS seek ADVICE. Always turn handwheels and screws clockwise to tighten or anti- clockwise to loosen. The chair must be fully adjusted by a therapist or trained representative before use. A hexagon key is provided for adjustments.
  • Page 7 5.1.3 DEPTH To adjust seat depth  Loosen handwheels (C) and (D)  Slide seat forwards or backward to desired position  Tighten handwheels (C) and (D) 5.1.4 WIDTH To reduce seat width or to provide additional support  25mm and 50mm width trunk support cushions can be supplied. ...
  • Page 8 5.1.6 BACK LUMBAR PROMPT To adjust seat back lumbar prompt  To adjust the lumbar prompt, insert the hex head tool (as supplied) into rear of the Juni seat back (F), and rotate to achieve the desired amount of prompt 5.2 ADJUSTABLE ARMREST 5.2.
  • Page 9 5.3 PELVIC STRAP  The pelvic strap is secured to the seat by two cam-lock mechanisms, located under the seat base (I, J)  To adjust the strap for growth, simply lift each cam-lock to release, adjust the strap appropriately and then close each cam-lock Buckle Strap (Standard) ...
  • Page 10 5.5 SKI ACCESSORY  The static ski accessory is fixed to the Juni chair by 4 x M6 screws (K), which locate through each Juni chair outrigger  A slot is designed into the rear of each static ski, this facilitates ski fitment if height of chair is adjusted ...
  • Page 11 5.7 MOBILE BASE, RETRACTABLE FOOTBOARD AND HEIGHT ADJUSTABLE HANDLE ACCESSORIES  The mobile base accessory is fixed to the Juni chair by 4 x M6 screws (N), which locate through each Juni chair outrigger  The rear castors can be locked by applying pressure to the foot lever (Q).
  • Page 12 5.8 FOUR POINT HARNESS ACCESSORY  A four point harness is available as an accessory  The rear of the Juni seat back has 4 recesses that are designed to locate fixing cam-locks for the four point harness  Take a sharp implement and pierce each recess where the ‘dimple’...

  • Page 13: Care & Maintenance

    The user should not be seated while the checks are carried out. 6.2 SERVICE INTERVAL The Juni chair should be serviced every 3 years. Servicing must only be undertaken by a Smirthwaite service engineer, or by a Smirthwaite trained representative.

  • Page 14: Guarantee & Service

    This guarantee is issued at the discretion of G&S Smirthwaite Ltd on RTB (Return to Base) basis. If you have any questions or doubts relating to the safety or use of the chair please contact us for advice or assistance on: T: +44 (0) 1626 835552 E: info@smirthwaite.co.uk...

  • Page 15: Warranty & Aftersale

    9.0 WARRANTY & AFTERSALE 9.1 Product Information Model: Size: Date of Manufacture: Serial Number: 9.2 Service & inspection record form: Date Procedure Service Personnel...
