- Page 1 01/17 HEATHFIELD INSTRUCTIONS FOR USE Codes 6901 - 6916...
-
Page 2: Table Of Contents
SERVICE INSPECTION 1.0 INTRODUCTION Thank you for choosing the Smirthwaite Heathfield Chair. The Heathfield Chair is suitable for children from the age of 2 to young adults who require minimal postural support when seated and fits well into nursery, school and home environments. -
Page 3: Illustration & Technical Data

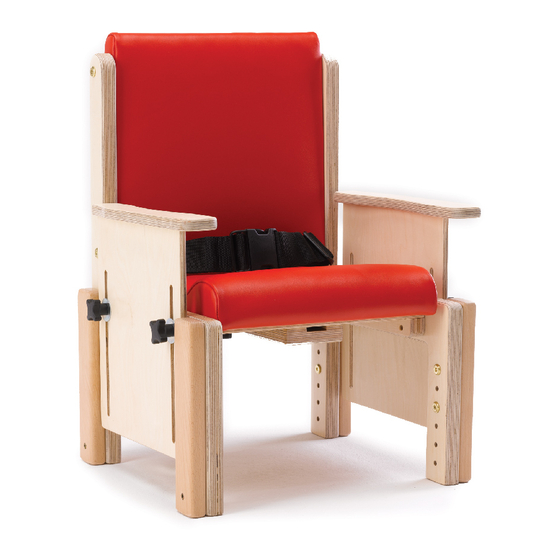

2.0 ILLUSTRATION OF YOUR CHAIR A. Contoured seat B. Backrest C. Armrest D. Leg outrigger E. Pelvic lap strap 2.1 TECHNICAL DATA SIZE CODE (ADJ/FIXED) 6901/6911 6902/6912 6903/6913 6904/6913 6905/6915 6906/6916 Dimension Seat Height (mm) 180-230 200-300 240-370 290-390 325-425 395-545 Back Height (mm) Width (mm) -
Page 4: For Your Safety
• Smirthwaite Ltd will not accept liability for any injury or damage incurred through such malpractices. Any repairs required must be carried out by Smirthwaite Ltd authorised personnel. -
Page 5: Unpacking Your Chair
• Please take note of any instructions on the packaging/box when unpacking. • Once the chair has been carefully unpacked, please check all parts. STOP! If you believe this product to be faulty – DO NOT USE – Contact Smirthwaite Ltd on T: +44 (0) 1626 835552 Heathfield... -
Page 6: Setting Up And Adjusting Your Chair
5.0 SETTING UP AND ADJUSTING YOUR CHAIR STOP! If in any doubt, ALWAYS seek ADVICE. Always turn hand wheels, levers and screws clockwise to tighten or anti-clockwise to loosen. 5.1 ADJUSTMENTS 5.1.1 SEAT DEPTH To move seat forwards or backwards •... - Page 7 5.1.3 ARMREST HEIGHT To adjust the height of the armrest • Loosen handwheels (D) • Slide armrest to desired position. • Tighten handwheels (D) when the armrest is set. • Repeat both armrests – ensure armrests are set to the same height on both sides of the chair.
- Page 8 5.1.5 PELVIC LAP STRAP Buckle Strap (Standard) • The buckle is secured by pushing (E) into (F). • To release the buckle, press both sides of (E) • The strap length can be altered by adjusting the tri-glide (as shown opposite) 5.1.6 REPLACEMENT STRAPS •...
-
Page 9: Common Accessories
6.0 COMMON ACCESSORIES 6.1 POMMEL • The pommel fits under the seat and is adjusted in and out by clamping with the handwheel (H) • The pommel can be rotated to increase amount abduction. 6.2 MOBILE DOLLY BASE • Position the back legs of the chair to the rear blocks on the dolly. - Page 10 6.4 REVERSIBLE FOOTBOARD • The footboard and skis are attached to the chair by four screws provided. • The screws fit into the chair outriggers on each side of the chair (K). • The footboard can be reversed by removing four screws (K), rotating the complete board and ski assembly and reattaching.
-
Page 11: Care & Maintenance
Check the strap is securely fastened to the poppers on the underside of the • chair 7.2 SERVICE INTERVAL The Heathfield chair should be serviced every 3 years. Servicing must only be undertaken by a Smirthwaite service engineer, or by a Smirthwaite trained representative. Heathfield... - Page 12 Product service life has been determined based upon the design complexity of product, and the anticipated exposure to normal use. Good practice dictates all Smirthwaite products have been designed and manufactured to high levels of safety and quality, and will meet requirements of normal use when maintained in line with our servicing recommendations.
- Page 13 7.4 EXTENDING NOMINAL SERVICE LIFE At Smirthwaite we are proud to produce products that have a reputation for quality and durability. We believe our products have the potential to provide benefits to our clients beyond the nominal service life documented above.
-
Page 14: Warranty & Service
If in any doubt, ALWAYS seek ADVICE. 8.0 WARRANTY & SERVICE Smirthwaite Ltd warrants the products detailed on your order to be free from defects in materials and workmanship for a period of 2 years from date of delivery. If a fault develops during the period, please call Customer Services by email or telephone 01626 835552 who will advise you on the best course of action. -
Page 15: Service Inspection
10.0 SERVICE INSPECTION 10.1 Product Information Model Size Date of Manufacture Serial Number 10.2 Service & inspection record form: Date Procedure Service Personnel Heathfield... - Page 16 Smirthwaite, 16 Wentworth Road, Heathfield, Newton Abbot, Devon.TQ12 6TL T: +44 (0) 1626 835552 F: +44 (0) 1626 835428 E: info@smirthwaite.co.uk www.smirthwaite.co.uk Heathfield...
