smirthwaite Juni Instructions For Use Manual

Covers juni chair,booster,hi lo base,footrest,table
Hide thumbs Also See for Juni:
Table of Contents

Advertisement

Quick Links

06/15
Juni
INSTRUCTIONS FOR USE
Covers Juni Chair, Booster, Hi Lo Base, Footrest & Table

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Juni and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for smirthwaite Juni

Summary of Contents for smirthwaite Juni

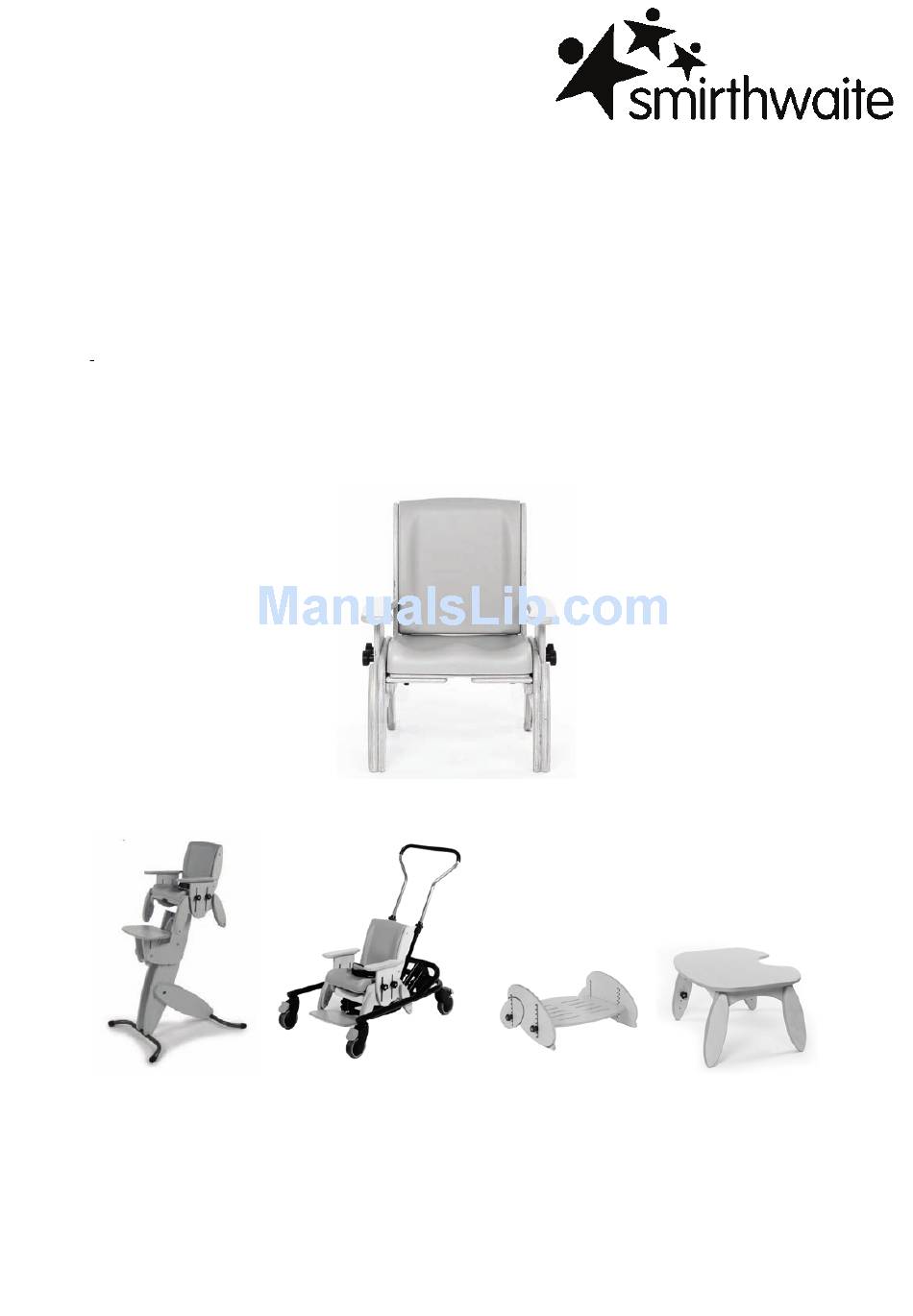

  • Page 1 06/15 Juni INSTRUCTIONS FOR USE Covers Juni Chair, Booster, Hi Lo Base, Footrest & Table...
  • Page 2 SECTIONS PAGE START 1.0 JUNI CHAIR 2.0 BOOSTER 3.0 HI-LO BASE 4.0 FOOTREST 5.0 TABLE Juni  ...
  • Page 3 Juni Chair INSTRUCTIONS FOR USE Codes 16011 - 16034 Juni...

  • Page 4: Table Of Contents

    1.0 INTRODUCTION Thank you for choosing your new Smirthwaite Juni Chair. The Juni has been designed for children who require minimal levels of postural support when seated. It’s simple, unobtrusive design style fits well into nursery, school and home environments.
  • Page 5 2.0 ILLUSTRATION OF YOUR JUNI CHAIR A. Contoured seat B. Adjustable backrest C. Adjustable armrest D. Outrigger legs 2.1 TECHNICAL DATA 3.0 FOR YOUR SAFETY STOP! Please read these instructions CAREFULLY and THOROUGHLY § The user should NOT be left unattended whilst using the chair. Always ensure a responsible adult or carer is in attendance §...
  • Page 6 G&S Smirthwaite Ltd will not accept liability for any injury or damage incurred through such malpractices. Any repairs required must be carried out by G&S Smirthwaite Ltd authorized personnel § The Juni is CE marked. This certifies that it meets all relevant European safety requirements STOP! LAP STRAPS &...

  • Page 7: Unpacking And Assembling Your Chair

    Insert a handwheel and washer (E) in each chair side. • Offer up the seat cushion (A) to the Juni chair and secure using two handwheels and washers (F) on the underside of the chair...

  • Page 8: Setting Up And Adjusting Your Chair

    5.0 SETTING UP AND ADJUSTING YOUR JUNI CHAIR STOP! If in any doubt, ALWAYS seek ADVICE Always turn handwheels and screws clockwise to tighten or anti- clockwise to loosen. The chair must be fully adjusted by a therapist or trained representative before use.
  • Page 9 To adjust seat back recline angle • Locate and remove the two handwheels securing the seat back recline angle (E) • The Juni seat back can be reclined in steps of 5 from 95 through to 105 • When the desired back recline...
  • Page 10 5.1.6 BACK LUMBAR PROMPT To adjust seat back lumbar prompt • To adjust the lumbar prompt, insert the hex head tool (as supplied) into rear of the Juni seat back (F), and rotate achieve desired amount of prompt.   5.2 ADJUSTABLE ARMREST 5.2.
  • Page 11 – the tray will automatically lock into position • To remove tray, pull the quick release lever on the underside of the tray, and pull the tray forward • Ensure the protective film on the tray is removed before use Juni...
  • Page 12 5.5 SKI ACCESSORY • The static ski accessory is fixed to the Juni chair by 4 x M6 screws (K), which locate through each Juni chair outrigger. • A slot is designed into the rear of each static ski, this facilitates ski fitment if height of chair is adjusted.
  • Page 13 5.7 MOBILE BASE, RETRACTABLE FOOTBOARD AND HEIGHT ADJUSTABLE HANDLE ACCESSORIES • The mobile base accessory is fixed to the Juni chair by 4 x M6 screws (N), which locate through each Juni chair outrigger • The rear castors can be...
  • Page 14 5.8 FOUR POINT HARNESS ACCESSORY • A four point harness is available as an accessory • The rear of the Juni seat back recesses that designed to locate fixing cam- locks for the four point harness • Take a sharp implement and pierce each recess where the ‘dimple’...

  • Page 15: Care & Maintenance

    The user should not be seated while the checks are carried out. 6.2 SERVICE INTERVAL The Juni chair should be serviced every 3 years. Servicing must only be undertaken by a Smirthwaite service engineer, or by a Smirthwaite trained representative.
  • Page 16 Product service life has been determined based upon the design complexity of product, and the anticipated exposure to normal use. Good practice dictates all Smirthwaite products have been designed and manufactured to high levels of safety and quality, and will meet requirements of normal use when maintained in line with our servicing recommendations.
  • Page 17 6.4 EXTENDING NOMINAL SERVICE LIFE At Smirthwaite we are proud to produce products that have a reputation for quality and durability. We believe our products have the potential to provide benefits to our clients beyond the nominal service life documented above.

  • Page 18: Warranty & Service

    If in any doubt, ALWAYS seek ADVICE. 7.0 WARRANTY & SERVICE Smirthwaite warrants the products detailed on your order to be free from defects in materials and workmanship for a period of 2 years from date of delivery. Possible action may be for us to arrange to send out one of our Service Engineers, or have the goods returned to us.

  • Page 19: Service Inspection

    9.0 SERVICE INSPECTION 9.1 Product Information Model: Size: Date of Manufacture: Serial Number: Final Inspection: 9.2 Service & inspection record form: Date Procedure Service Personnel Juni  ...

  • Page 21: Juni

    2.JUNI BOOSTER INSTRUCTIONS FOR USE Hi Booster Codes: JB112, JB122, JB212, JB222, JB312, JB322, JB412, JB422 Lo Booster Codes: JB111, JB121, JB211, JB221, JB311, JB321 JB411, JB421 Juni...

  • Page 22: Introduction

    1.0 INTRODUCTION Thank you for choosing the Smirthwaite Juni Booster product. The Juni Booster has been designed to provide a quick and simple way to achieve extra height for your child. The Hi Booster is perfect for a breakfast bar or feeding your child whilst standing.
  • Page 23 2.0 ILLUSTRATION OF YOUR JUNI BOOSTER A. Seat interface plate B. Footplate C. Metal Legs D. Head assembly E. Button to fold 2.1 TECHNICAL DATA Juni...
  • Page 24 • DO NOT fit parts or accessories of other manufacturers to this product unless authorized to do so in writing by G&S Smirthwaite Ltd. Failure to follow these instructions will not only invalidate the guarantee but could make the product dangerous to use.

  • Page 25: Unpacking And Assembling Your Juni Booster

    § To complete the Booster assembly, simply offer up the metal legs to the Booster and insert 4 x M6x50 screws, as shown below. § The seat bracket provided should be fixed to the rear underside of your Juni   Chair as shown below by inserting 2 x M6x12 screws.

  • Page 26: Setting Up And Adjusting Your Juni Booster

    6.0 SETTING UP AND ADJUSTING YOUR JUNI BOOSTER STOP! If in any doubt, ALWAYS seek ADVICE. Always turn hand wheels, levers and screws clockwise to tighten or anti-clockwise to loosen. 5.1 ADJUSTMENTS Two adjustments can be made to the Juni Booster; chair height and footplate height.
  • Page 27 5.2 ATTACHING YOUR JUNI CHAIR TO YOUR JUNI BOOSTER STOP! NEVER undertake these steps with a child in the Juni Chair § Offer up the Juni chair to the seat interface plate as shown opposite § The chair seat batten should...
  • Page 28 § The red button (G) will remain depressed during the folding process and whilst folded. § The red button (G) will ‘pop’ out flush when the Juni Booster is unfolded and the mechanism is locked – ALWAYS ensure the mechanism is locked before attaching the Juni chair.
  • Page 29 Harness at all times when attaching a Juni Chair to a Juni Booster Each Juni Booster comes complete with a padded five-point buckle harness. This should be attached to the Juni Chair that is intended for use with the Juni Booster.
  • Page 30 • Once all straps are fitted, adjust to suit the specific needs of your client STOP! The Five Point harness should replace all other harnesses supplied with the Juni Chair when used with the Juni Booster. Juni...
  • Page 31 5.4.3 USING THE FIVE POINT HARNESS • The central strap (secured to the underside of the Juni chair) should remain fitted at all times. • To fasten the harness, take each shoulder strap and group together before simply clicking into the buckle.

  • Page 32: Care & Maintenance

    Check all straps for fraying, and that buckles are not missing/damaged. • Always check the Juni Chair can be securely fixed to the Juni Booster before sitting a child into the chair. Check the fixing pins are present and secure on the  ...
  • Page 33 Product service life has been determined based upon the design complexity of product, and the anticipated exposure to normal use. Good practice dictates all Smirthwaite products have been designed and manufactured to high levels of safety and quality, and will meet requirements of normal use when maintained in line with our servicing recommendations.
  • Page 34 6.4 EXTENDING NOMINAL SERVICE LIFE At Smirthwaite we are proud to produce products that have a reputation for quality and durability. We believe our products have the potential to provide benefits to our clients beyond the nominal service life documented above.

  • Page 35: Warranty & Service

    If in any doubt, ALWAYS seek ADVICE. 7.0 WARRANTY & SERVICE Smirthwaite warrants the products detailed on your order to be free from defects in materials and workmanship for a period of 2 years from date of delivery. Possible action may be for us to arrange to send out one of our Service Engineers, or have the goods returned to us.

  • Page 36: Service Inspection

    9.0 SERVICE INSPECTION 9.1 Product Information Model: Size: Date of Manufacture: Serial Number: Final Inspection: 9.2 Service & inspection record form: Date Procedure Service Personnel Juni  ...
  • Page 37 3.JUNI HI LO INSTRUCTIONS FOR USE Juni  ...
  • Page 38 Thank you for choosing the Smirthwaite Juni Hi Lo product. The Juni Hi Lo chassis has been designed to provide a quick and simple way to achieve extra height for your child when seated in his or her Juni chair.
  • Page 39 2.0 ILLUSTRATION OF YOUR JUNI HI LO A. Seat interface plate D. Push handle B. Height adjustable footplate E. Grip locks C. Castors, with brakes F. Foot pedal for height adjustment 2.1 PRODUCT CODES REFERENCE TABLE Size HL111 HL121 HL131...

  • Page 40: For Your Safety

    • DO NOT fit parts or accessories of other manufacturers to this product unless authorized to do so in writing by G&S Smirthwaite Ltd. Failure to follow these instructions will not only invalidate the guarantee but could make the product dangerous to use.
  • Page 41 When delivered, the product will be supplied fully assembled, with the exception   of the fitment of the seat bracket to your existing Juni Size 1 or Size 2 chair. § The seat bracket provided should be fixed to the rear underside of your Juni  ...
  • Page 42 5.1 ATTACHING YOUR JUNI CHAIR TO YOUR JUNI HI LO STOP! NEVER undertake these steps with a child in the Juni Chair § Offer up the Juni chair to the seat § The chair seat batten should hook...
  • Page 43 § Ensure the screw is fully tightened before use § The footplate should NOT be used as a transfer step – always lower the height of the Juni Hi-Lo to floor level before transferring your client onto the seat. Foot plate at minimum setting Foot plate at maximum setting 5.3 ADJUSTING THE SEAT HEIGHT...
  • Page 44 § To adjust, firstly locate and loosen the grip locks (E) § Lift or lower the handle to the desired height. § To lock into position, retighten the grip locks (E) Juni...
  • Page 45 Check the brakes on each castor operate correctly. • Always check the Juni Chair can be securely fixed to the Juni Hi Lo chassis before sitting a child into the chair. Check the fixing pins are present and secure  ...
  • Page 46 Product service life has been determined based upon the design complexity of product, and the anticipated exposure to normal use. Good practice dictates all Smirthwaite products have been designed and manufactured to high levels of safety and quality, and will meet requirements of normal use when maintained in line with our servicing recommendations.
  • Page 47 6.4 EXTENDING NOMINAL SERVICE LIFE At Smirthwaite we are proud to produce products that have a reputation for quality and durability. We believe our products have the potential to provide benefits to our clients beyond the nominal service life documented above.
  • Page 48 You will be advised before this is made. 8.0 CONTINUOUS IMPROVEMENT G&S Smirthwaite Ltd are committed to continuous improvement to their product range. G&S Smirthwaite Ltd reserve the right to change the specification or material without prior notice. Juni  ...
  • Page 49 9.0 SERVICE INSPECTION 9.1 Product Information Model: Size: Date of Manufacture: Serial Number: Final Inspection: 9.2 Service & inspection record form: Date Procedure Service Personnel Juni  ...
  • Page 51 4.Juni Adjustable Footrest INSTRUCTIONS FOR USE Juni  ...

  • Page 52: Illustration & Technical Data

    1.0 INTRODUCTION Thank you for choosing the Smirthwaite Juni Adjustable Footrest. The Juni Adjustable Footrest is a height and angle adjustable footrest that can be attached to your Juni chair, or left unattached to function as an independent footrest. The side height has been designed specifically to ensure correct the child’s feet are kept in the correct position.
  • Page 53 2.0 ILLUSTRATION OF YOUR JUNI ADJUSTABLE FOOTREST A. Foot plate B. Foot rest side C. Hand wheels for adjusting angle & height D. Fixing hole 2.1 PRODUCT CODES REFERENCE TABLE Size FR051 FR052 FR053 FR054 2.2 TECHNICAL DATA SIZE Width (mm)
  • Page 54 • DO NOT fit parts or accessories of other manufacturers to this product unless authorized to do so in writing by G&S Smirthwaite Ltd. Failure to follow these instructions will not only invalidate the guarantee but could make the product dangerous to use.

  • Page 55: Unpacking And Assembling Your Juni Adjustable Footrest

    Juni chair. § To attach the footrest to the front legs of the Juni chair, simply align the footrest correctly to the front of the chair and insert the two M6 x 25 socket screws as shown below.

  • Page 56: Setting Up And Adjusting Your Juni Adjustable Footrest

    5.0 SETTING UP AND ADJUSTING YOUR JUNI ADJUSTABLE FOOTREST STOP! If in any doubt, ALWAYS seek ADVICE. Always turn hand wheels, levers and screws clockwise to tighten or anti-clockwise to loosen. 5.1 ADJUSTING YOUR JUNI ADJUSTABLE FOOTREST 5.1.1 FOOTREST HEIGHT §...

  • Page 57: Care & Maintenance

    Check all straps for fraying, and that buckles are not missing/damaged. 6.2 SERVICE INTERVAL The Juni Adjustable Footrest should be serviced every 3 years. Servicing must only be undertaken by a Smirthwaite service engineer, or by a Smirthwaite trained representative.

  • Page 58: Continuous Improvement

    8.0 CONTINUOUS IMPROVEMENT G&S Smirthwaite Ltd are committed to continuous improvement to their product range. G&S Smirthwaite Ltd reserve the right to change the specification or material without prior notice. Juni  ...

  • Page 59: Service Inspection

    9.0 SERVICE INSPECTION 9.1 Product Information Model: Size: Date of Manufacture: Serial Number: Final Inspection: 9.2 Service & inspection record form: Date Procedure Service Personnel Juni  ...
  • Page 61 5.JUNI TABLE INSTRUCTIONS FOR USE Juni  ...
  • Page 62 1.0 INTRODUCTION Thank you for choosing your new Juni Table. Your Juni Table has been designed with simplicity and adjustability in mind, and is ideal for younger children at nursery, school and home. The table height can be simply adjusted to ensure good seating posture, and when not required the table can...
  • Page 63 2.0 ILLUSTRATION OF YOUR JUNI TABLE A: Leg outrigger (x 4) B: Cut out C: Hand wheels 2.1 TECHNICAL DATA CODE SIZE COLOUR Width (mm) Red Top 2411 2412 Depth (mm) Lime Top 2421 2411 Height (mm) 310-450 400-600 Blue Top...

  • Page 64: Unpacking Your Juni Table

    Any repairs required must be carried out by G&S Smirthwaite Ltd authorized personnel • The Juni Table is CE marked. This certifies that it meets all relevant European safety requirements. If you believe this product to be faulty -DO NOT USE 4.0 UNPACKING YOUR JUNI TABLE...

  • Page 65: Setting Up And Adjusting Your Juni Table

    6.0 STORING YOUR JUNI TABLE The Juni personal table is fitted with a mechanism for folding each pair of legs underneath the table top, as shown below (A). This permits stable stacking and easy storage.

  • Page 66: Care And Maintenance

    • Store the table in a cool dry place out of direct sunlight. • DO NOT use bleach, solvents, abrasives, synthetic detergents, wax polishes, antibacterial sprays or wipes. • For further information please refer to MHRA or NHS cleaning guidelines IMPORTANT! REGULAR MAINTENANCE CHECKS ARE REQUIRED Juni...
  • Page 67 • Check the structure of the product for signs of damage wear and tear. • Keep all parts clean. 7.2 SERVICE INTERVAL The Juni table should be serviced every 3 years. Servicing must only be undertaken by a Smirthwaite service engineer, or by a Smirthwaite trained representative. 7.3 NOMINAL SERVICE LIFE Your product has a nominal service life of 12 years, during which full post-sales support will be available with regard to spares and servicing.
  • Page 68 7.4 EXTENDING NOMINAL SERVICE LIFE At Smirthwaite we are proud to produce products that have a reputation for quality and durability. We believe our products have the potential to provide benefits to our clients beyond the nominal service life documented above.

  • Page 69: Warranty & Service

    If in any doubt, ALWAYS seek ADVICE. 8.0 WARRANTY & SERVICE Smirthwaite warrants the products detailed on your order to be free from defects in materials and workmanship for a period of 2 years from date of delivery. Possible action may be for us to arrange to send out one of our Service Engineers, or have the goods returned to us.

  • Page 70: Service Inspection

    10.0 SERVICE INSPECTION 10.1 Product Information Model: Size: Date of Manufacture: Serial Number: Final Inspection 10.2 Service & inspection record form: Date Procedure Service Personnel Juni  ...
  • Page 72 Juni...
